■ Overview

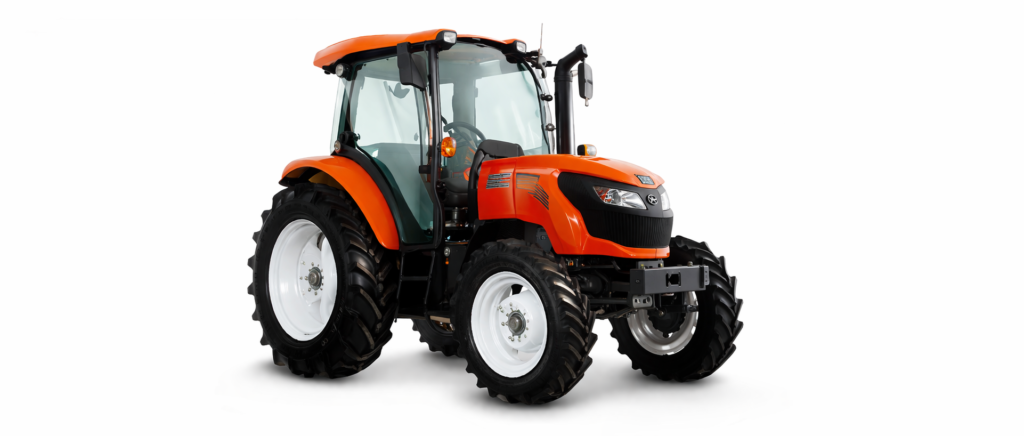

The Kubota MR77 is a powerful and versatile utility tractor from the Rexia Series, designed for modern agriculture and demanding field work.
Since 2015, this model has been widely used in Japan and export markets thanks to its durability, efficiency, and ease of operation.
It is ideal for:
- Field cultivation
- Transport operations
- Livestock and farm management
- Multi-purpose agricultural work
The MR77 also offers a half-track variant (MR77-PC), which improves traction in muddy or soft ground conditions.
■ Key Specifications
| Item | Specification |
|---|---|
| Model | Kubota MR77 |
| Series | Rexia Series |
| Production | 2015 – |
| Type | Utility Tractor |
| Drive | 4WD |
| Cabin | Standard |
■ Engine
| Item | Specification |
|---|---|
| Engine Type | Kubota Diesel |
| Displacement | 3.8L |
| Cylinders | 4-cylinder |
| Max Power | 75.9 HP (56.6 kW) |
| Fuel Tank | 110.1 L |
The Kubota MR77 is equipped with a 3.8L 4-cylinder diesel engine, known for its strong torque, fuel efficiency, and long service life.
This engine is designed to perform under heavy workloads while maintaining low fuel consumption.
■ Transmission
| Item | Specification |
|---|---|
| Transmission Type | Gear transmission |
| Speeds | 24-speed |
The 24-speed transmission allows precise control in both low-speed field work and higher-speed transport operations.
■ Power & Mechanical Features
| Item | Specification |
|---|---|
| Steering | Power Steering |
| Brakes | Mechanical Wet Disc |
| Drive System | Four-Wheel Drive |
| Cabin | Standard Equipped |
The tractor is built for stability and operator comfort, making it suitable for long working hours.
■ PTO (Power Take-Off)
| Item | Specification |
|---|---|
| PTO Type | Rear PTO 540 |
| PTO Speeds | 589 / 828 / 1170 rpm @ 2600 rpm |
The MR77 supports various farming implements, ensuring flexibility across different agricultural tasks.
■ Hitch & Lifting Capacity
| Item | Specification |
|---|---|
| Hitch Type | Category II |
| Control | Position & Draft Control |
| Rear Lift Capacity | 3,299 kg |
With a strong rear lifting capacity, the MR77 can handle heavy implements such as plows, rotary tillers, and loaders.
■ Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 225 cm |
| Weight | 3,140 kg |
| Front Tire | 9.5-24 |
| Rear Tire | 16.9-30 |
The balanced weight and size provide excellent stability and traction in various field conditions.
■ Variants
| Model | Description |
|---|---|
| MR77 | Standard utility tractor |
| MR77-PC | Half-track version for soft terrain |
The MR77-PC is especially useful in wet or muddy environments where standard wheel tractors may struggle.
■ Why Choose Kubota MR77?
- Reliable Japanese engineering
- Strong 75HP performance for multiple uses
- Fuel-efficient diesel engine
- Comfortable cabin for long work hours
- Suitable for global export markets
■ Summary
The Kubota MR77 is a well-balanced utility tractor that combines power, durability, and versatility.
It is an excellent choice for farmers and businesses looking for a reliable machine that can perform consistently in different environments.
