Overview
Since 2006, EVERY FARM TRACTOR has been exporting high-quality used tractors from Japan to over 100 countries worldwide.

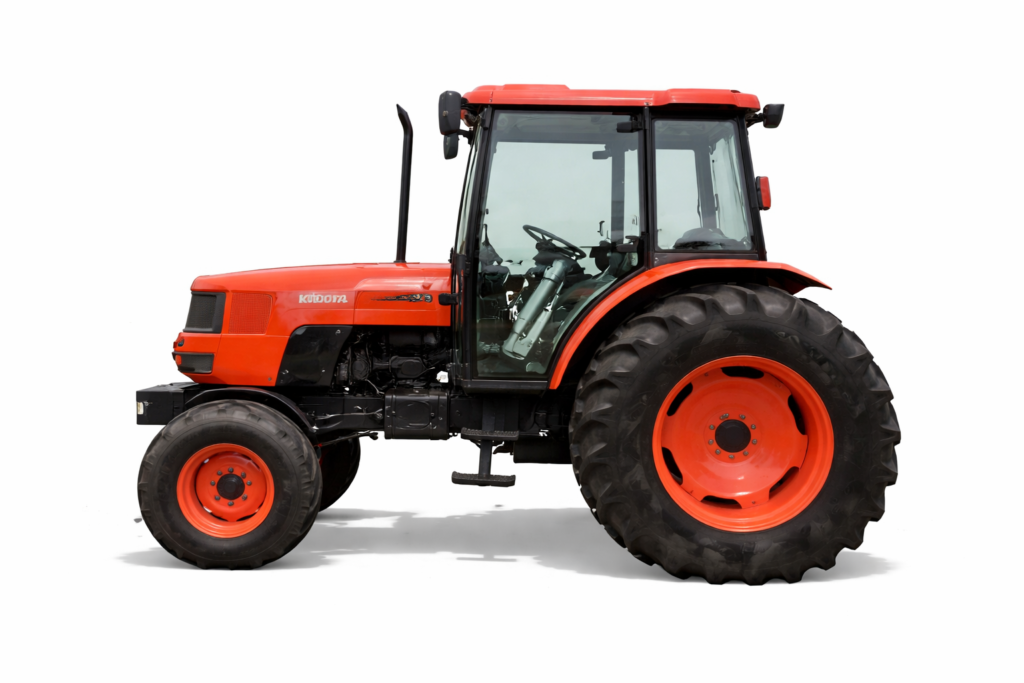

The Kubota M8200 is a durable and versatile utility tractor manufactured between 1997 and 2005 in Japan. As part of Kubota’s M Series, it is designed for medium-scale farming operations and is widely trusted for its balance of power, efficiency, and ease of maintenance.
Equipped with an 85.3 HP diesel engine, advanced hydraulic capabilities, and multiple transmission options, the M8200 is suitable for plowing, tilling, hauling, and loader work.
Key Features
- Reliable Kubota 4-cylinder diesel engine
- Available in 2WD and 4WD configurations
- Choice of synchronized or power shuttle transmission
- Strong hydraulic system with high lifting capacity
- Comfortable operation with optional air-conditioned cab
Engine Specifications
| Item | Details |
|---|---|
| Engine Model | Kubota Diesel Engine |
| Displacement | 3.3L |
| Cylinders | 4-cylinder |
| Fuel Type | Diesel |
| Engine Power (Gross) | 85.3 hp (63.6 kW) |
The 3.3L engine provides excellent fuel efficiency and durability, making it ideal for long working hours in demanding environments.
Transmission
| Item | Details |
|---|---|
| Type (Option 1) | 8-speed synchronized |
| Type (Option 2) | 8-speed power shuttle |
The power shuttle option allows smoother forward and reverse operation, especially useful for loader work.
Power Output
| Item | Power |
|---|---|
| Engine (Gross) | 85.3 hp |
| PTO (claimed) | 73 hp |
Mechanical Features
| Item | Details |
|---|---|
| Drive Type | 2WD / 4WD |
| Final Drives | Inboard planetary |
| Differential Lock | Front and rear standard |
| Steering | Hydrostatic power steering |
| Brakes | Mechanical wet disc |
| ROPS | Two-post folding (Cab optional) |
Hydraulics
| Item | Details |
|---|---|
| Type | Open center |
| Pump Flow | 17.1 gpm (64.7 L/min) |
| Capacity | 13.7 gal (51.9 L) |
| Valves | 1 to 3 |
The strong hydraulic system supports a wide range of implements and ensures smooth operation under heavy loads.
Capacity
| Item | Capacity |
|---|---|
| Fuel Tank (ROPS) | 23.8 gal (90.1 L) |
| Fuel Tank (Cab) | 29.1 gal (110.1 L) |
| Hydraulic System | 13.7 gal (51.9 L) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| Type | Independent |
| Clutch | Hydraulic wet disc |
| Speed | 540 rpm |
| Optional | 540 / 1000 rpm |
Hitch & Lifting Capacity
| Item | Details |
|---|---|
| Hitch Type | Category II |
| Control | Position control & draft sensing |
| Lift Capacity (ends) | 2,522 kg |
| Lift Capacity (24″) | 2,100 kg |
| Rear Arms | Telescopic stabilizers |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 225 cm |
| Weight | 2,533 – 3,000 kg |
| Front Tire | 7.50-18 |
| Rear Tire (2WD) | 12.4-24 |
Attachments
- Front-end loader (e.g., Woods 1027)
- Various agricultural implements
Electrical System
| Item | Details |
|---|---|
| Charging System | Alternator |
| Charging Amps (ROPS) | 45A |
| Charging Amps (Cab) | 60A |
| Battery | 12V / 1000 CCA |
Why Choose Kubota M8200?
The Kubota M8200 is a highly reliable tractor trusted by farmers worldwide because of:
- Strong and efficient engine performance
- Versatile transmission options
- Excellent hydraulic capability
- Easy maintenance and parts availability
- Proven durability in tough farming conditions
It is an ideal choice for farmers seeking a powerful, dependable, and cost-effective Japanese tractor.
The Kubota M8200 continues to be a popular model for agricultural operations across Africa, the Caribbean, and many other regions, delivering consistent performance and long-term value.
