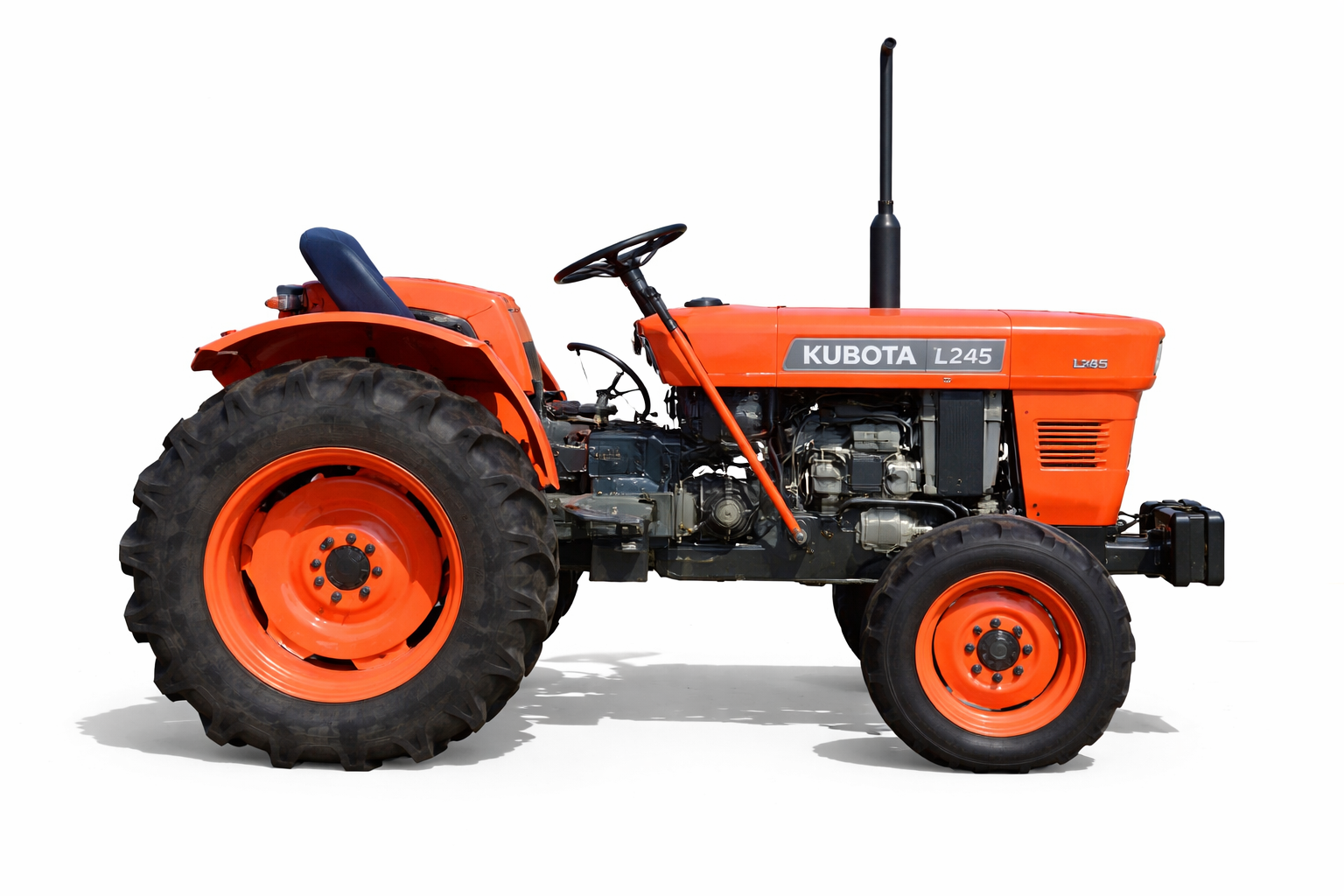

Kubota L245 Compact Utility Tractor
25HP L-Series Diesel Tractor (1976–1985)
🚜 Overview
The Kubota L245 is a compact utility tractor from the L-Series, produced by Kubota between 1976 and 1985 in Japan.
Positioned between the L235 (23.5 hp) and L275 (27.5 hp), the L245 became one of the most popular mid-range models in the series. In 1977, the original price was approximately USD 4,000, offering excellent value for small to medium farms.
Since 2006, EVERY FARM TRACTOR has exported Japanese compact tractors like the L245 to more than 100 countries worldwide.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.1L (approx. 1,100 cc) |
| Rated Engine Power | 25 hp (18.6 kW) |
| Fuel Tank Capacity | 6 gal (22.7 L) |
| Cooling | Liquid-cooled |
The 3-cylinder diesel engine provides smooth performance, low vibration, and excellent fuel efficiency.
⚙ Transmission
| Feature | Specification |
|---|---|
| Transmission Type | 8-speed gear |
| Drive Options | 2WD / 4WD (L245DT) |
| Steering | Manual |
| PTO | Independent |
The 8-speed transmission ensures flexible speed selection for fieldwork and transport.
🧪 Tested Power & Performance
| Test Item | Output |
|---|---|
| Engine Power | 25 hp (18.6 kW) |
| Drawbar (claimed) | 17.8 hp (13.3 kW) |
| PTO (claimed) | 22 hp (16.4 kW) |
| Drawbar (tested) | 18.10 hp (13.5 kW) |
| PTO (tested) | 22.35 hp (16.7 kW) |
The tested PTO output confirms strong performance with tillers, mowers, and other PTO-driven implements.
💪 Mechanical Features
| Feature | Details |
|---|---|
| Drive System | 2WD / 4WD |
| Brakes | Mechanical wet disc brakes |
| Operator Station | Open platform |
| ROPS | Two-post ROPS optional |
| Electrical | 12V, negative ground |
Wet disc brakes provide improved durability and consistent stopping power.
💧 Hydraulics & Capacity
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 8.7 gal (32.9 L) |
| Pressure | 2000 psi (137.9 bar) |
| Total Flow | 3.7 gpm (14.0 lpm) |
| Rear Hitch | Category I |
| Rear Lift Capacity | 1,540 lbs (698 kg) |
The strong hydraulic system supports loader and backhoe applications.
🔗 PTO Specifications
| Item | Specification |
|---|---|
| Rear PTO Type | 540 / 700 / 1000 rpm |
| PTO Operation | Independent |
Multiple PTO speeds allow compatibility with various implements.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 63 in (160 cm) |
| Wheelbase (4WD) | 61.2 in (155 cm) |
| Weight | 1,825 – 2,382 lbs |
| Front Tire | 5.00-15 |
| Rear Tire | 11.2-24 |
The balanced design provides stability while maintaining compact maneuverability.
🛠 Available Variants
| Model | Description |
|---|---|
| L245 | 2WD version |
| L245DT | 4WD version |
| L245H | High clearance model |
🔧 Attachments
-
Snowblower
-
Front-end loader
-
Backhoe
-
Rotary tiller
-
Rear blade
🔢 Serial Number Location
The Kubota L245 serial number is typically located on the tractor frame near the clutch housing area. Checking the serial plate helps verify production year and configuration.
🌍 Why the Kubota L245 Is Still in Demand
-
Smooth 3-cylinder diesel performance
-
Strong tested PTO output
-
Reliable wet disc brake system
-
2WD and 4WD options
-
Proven Japanese engineering
For customers in Africa, Asia, the Caribbean, and South America, the Kubota L245 offers a dependable and versatile compact tractor solution.
