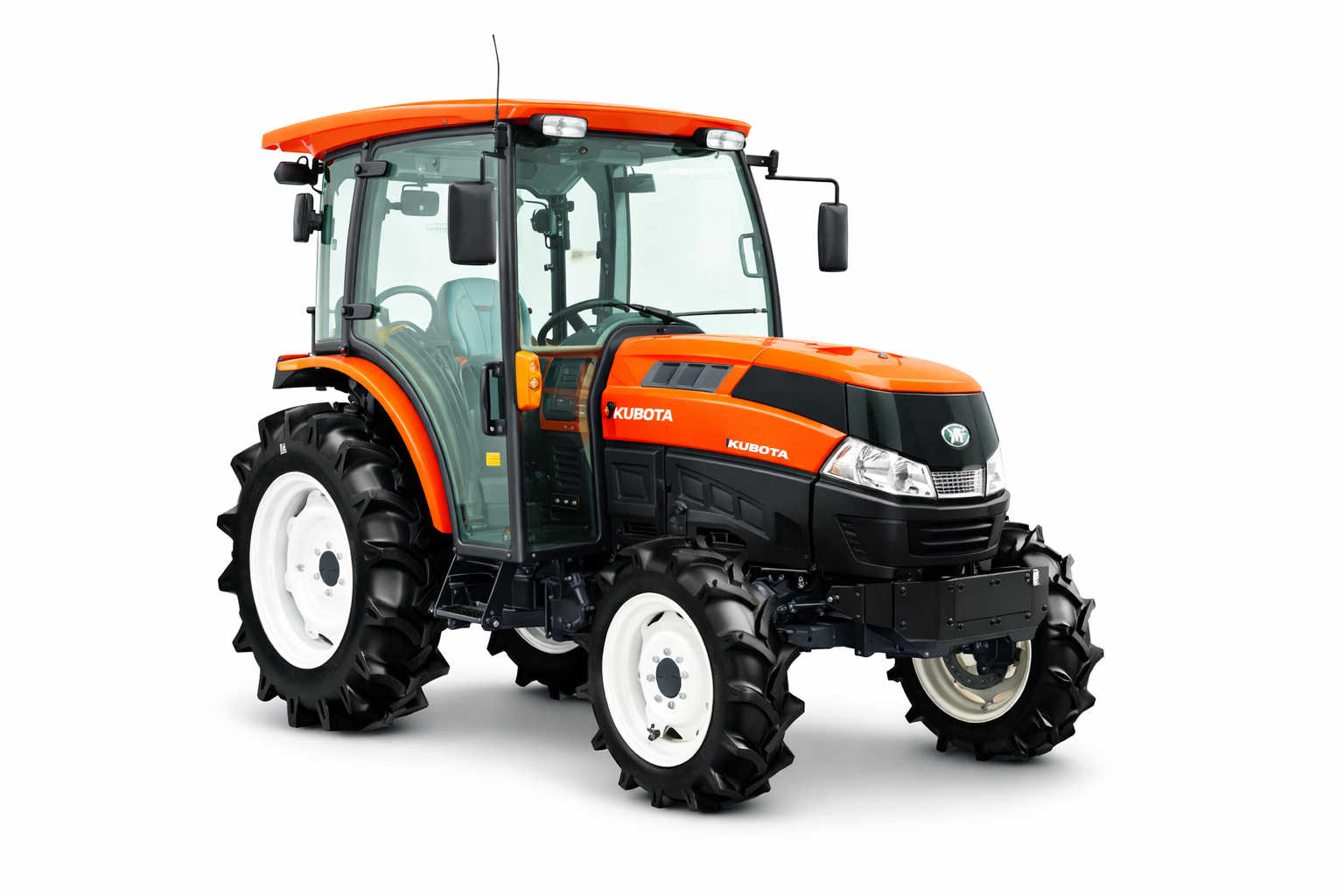

Kubota KL53Z Compact Utility Tractor
Overview
The Kubota KL53Z is a high-performance compact utility tractor from the KL Kingwel Zero Series, engineered for professional agricultural and land management applications.
Manufactured by Kubota between 2012 and 2015, the KL53Z offers strong diesel power, advanced transmission options, and excellent operator comfort.
It is well-suited for intensive fieldwork, rotary tilling, mowing, and transport operations.
Key Information
| Item | Details |
|---|---|
| Manufacturer | Kubota |
| Model | KL53Z |
| Series | KL Kingwel Zero Series |
| Production Years | 2012 – 2015 |
| Tractor Type | Compact Utility Tractor |
| Drive System | Four-Wheel Drive (4WD) |
| Steering | Power Steering |
| Brakes | Mechanical Wet Disc |
| ROPS | Two-Post ROPS |
| Cab | Optional (with Air Conditioning) |
Series Map
| Model | Engine Output |
|---|---|
| KL48Z | 35.3 kW |
| KL53Z | 39.0 kW |
| KL58Z | 42.7 kW |
Variants
| Variant | Description |
|---|---|
| KL53Z | Wheeled version |
| KL53Z-PC | Half-track version |
Engine
The KL53Z is equipped with a reliable Kubota diesel engine designed for durability, smooth power delivery, and fuel efficiency.
| Specification | Details |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | Diesel |
| Cylinders | 4 |
| Displacement | 2.4 L |
| Rated Engine Power | 52.3 hp (39.0 kW) |
| Fuel Tank Capacity | 12.7 gal (48.1 L) |
| Electrical System | 12 V |
| Ground | Negative |
Transmission
Multiple transmission configurations provide flexibility for different working conditions and operator preferences.
| Transmission Type | Details |
|---|---|
| Continuously Variable Transmission (CVT) | Smooth speed control |
| Mechanical Transmission | 30-Speed |
Power & PTO
The KL53Z delivers stable and versatile PTO performance, supporting a wide range of agricultural implements.
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Rear PTO Type | 540 rpm (1.375 in) |
| Engine RPM @ PTO | 2600 rpm |
| PTO Output Speeds | 540 / 766 / 960 / 1286 rpm |
| PTO Reverse | −763 rpm |
Dimensions & Tires
Designed for balance, traction, and stability across varied terrain.
| Specification | Measurement |
|---|---|
| Wheelbase | 76.4 in (194 cm) |
| Operating Weight | 4233 lbs (1920 kg) |
| Front Tire Size | 8.3-20 |
| Rear Tire Size | 13.6-28 |
Photos
Currently, no official photos of the Kubota KL53Z are publicly available.
When stock is available, EVERY FARM TRACTOR can provide actual unit photos for serious buyers upon request.
Why Choose the Kubota KL53Z?
-
Powerful 52.3 hp Kubota diesel engine
-
CVT and 30-speed transmission options
-
Available half-track variant for enhanced traction
-
Ideal for farming, land management, and professional use
