Overview
EVERY FARM TRACTOR has been exporting high-quality used tractors from Japan to over 100 countries since 2006.

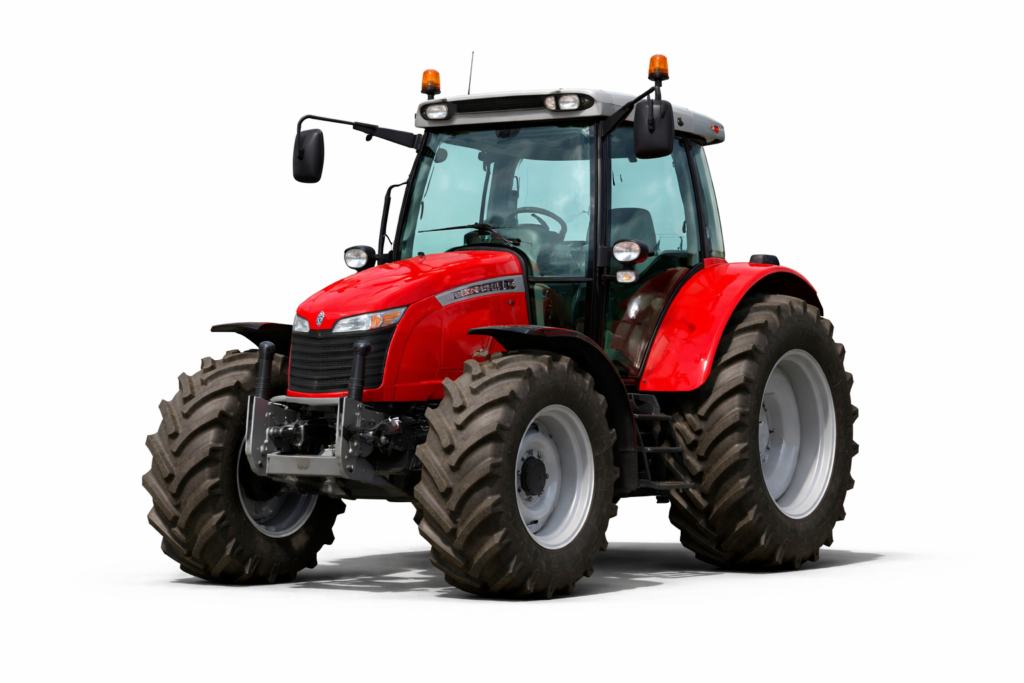

The Massey Ferguson 5610 is a versatile and efficient utility tractor from the modern 5600 Series. Built by AGCO, this model is designed to provide excellent fuel efficiency, maneuverability, and operator comfort.
With its 100 HP AGCO Power engine, advanced transmission system, and strong hydraulic performance, the 5610 is ideal for livestock farms, general fieldwork, and loader operations.
Key Specifications
| Item | Details |
|---|---|
| Model | Massey Ferguson 5610 |
| Series | 5600 Series |
| Production Years | 2013 – 2017 |
| Manufacturer | Massey Ferguson (AGCO) |
| Type | Utility Tractor |
| Drive | 2WD / 4WD |
| Original Price | $77,499 (2014) |
Engine
The Massey Ferguson 5610 is equipped with a modern AGCO Power diesel engine designed for efficiency and reliability.
| Item | Details |
|---|---|
| Engine Manufacturer | AGCO Power |
| Engine Type | 3-cylinder diesel |
| Displacement | 3.3 L |
| Engine Power | 100 hp (74.6 kW) |
| PTO Power (claimed) | 75 hp (55.9 kW) |
| Fuel Tank Capacity | 42.3 gal (160.1 L) |
Engine Features
- Fuel-efficient compact engine
- Reduced emissions and modern design
- Reliable for daily farming operations
Transmission
The tractor offers flexible transmission options for different working conditions.
| Item | Details |
|---|---|
| Transmission Type | Power shift with power shuttle |
| Gears | 16-speed |
| Optional | 32-speed creeper |
Transmission Benefits
- Smooth forward/reverse switching (ideal for loader work)
- Better control at low speeds with creeper gear
- Efficient performance in transport and fieldwork
Hydraulics
The hydraulic system supports a wide range of implements with strong lifting power.
| Item | Details |
|---|---|
| Type | Open center |
| Pressure | 2900 psi (200 bar) |
| Valves | 2 to 4 |
| Pump Flow | 15 gpm (56.8 L/min) |
| Twin Flow (optional) | 26 gpm (98.4 L/min) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| PTO Type | Independent |
| Clutch | Electro-hydraulic |
| PTO Speeds | 540 / 540E / 1000 rpm |
| Engine RPM | 540@1920 / 540E@1964 / 1000@1560 |
Hitch & Lifting Capacity
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Control | Electronic draft control |
| Rear Lift (ends) | 9,480 lbs (4,300 kg) |
| Rear Lift (24″) | 7,100 lbs (3,220 kg) |
| Front Hitch | Optional (Category II) |
| Front Lift | 5,500 lbs (2,494 kg) |
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase | 97.1 in (246 cm) |
| Weight | 8,426 – 8,978 lbs (3,820 – 4,070 kg) |
| Rear Tires | 16.9R38 |
Mechanical Features
- Two-wheel or four-wheel drive options
- Internal planetary final drives
- Electro-hydraulic differential lock
- Hydrostatic power steering
- Hydraulic wet disc brakes
- Optional trailer brakes (pneumatic/hydraulic)
- Comfortable cab with air-conditioning
- Optional cab suspension and AGCOMMAND system
Attachments
| Attachment | Details |
|---|---|
| Front-End Loader | Compatible |
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Amps | 95 |
| Battery | 12V |
Applications
The Massey Ferguson 5610 is ideal for:
- Livestock farming
- Loader and material handling
- General fieldwork
- Transport and hauling
- Medium-duty agricultural operations
Why Choose Massey Ferguson 5610?
- Efficient 100 HP engine
- Advanced and flexible transmission
- Strong hydraulic lifting capacity
- Excellent maneuverability
- Comfortable and modern cab
Availability from EVERY FARM TRACTOR
EVERY FARM TRACTOR provides high-quality used tractors from Japan to customers worldwide.
- Careful inspection before export
- Fast global shipping
- Support for all experience levels
- Export experience to over 100 countries
Photos
Currently, there are no official photos available for this model.
Please contact us for actual unit images or similar stock photos.
