Overview
EVERY FARM TRACTOR has been exporting high-quality used tractors from Japan to over 100 countries since 2006.

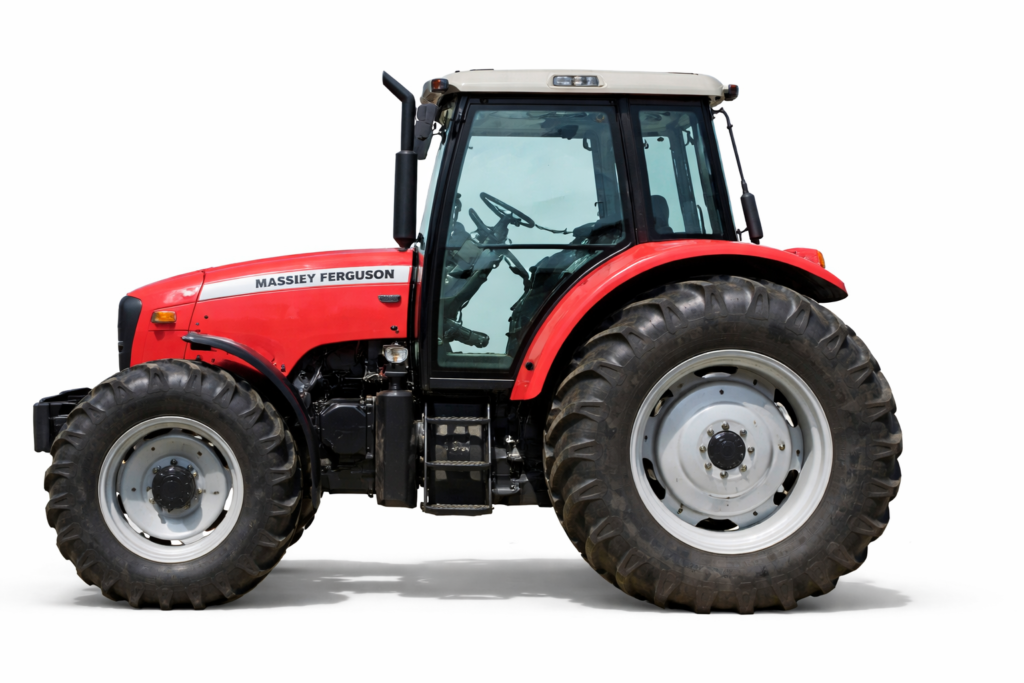

The Massey Ferguson 5480 is one of the most powerful models in the 5400 Series, designed for heavy-duty agricultural operations. Manufactured in Beauvais, France, this tractor combines advanced engineering, strong performance, and operator comfort.
With its 140 HP Sisu diesel engine, durable transmission, and high-capacity hydraulics, the 5480 is ideal for large-scale farming, transport, and demanding fieldwork.
Key Specifications
| Item | Details |
|---|---|
| Model | Massey Ferguson 5480 |
| Series | 5400 Series |
| Production Years | 2008 – 2013 |
| Manufacturer | Massey Ferguson |
| Production Location | Beauvais, France |
| Type | Utility Tractor |
| Drive | 2WD / 4WD |
Engine
The Massey Ferguson 5480 is powered by a reliable Sisu (AGCO Power) diesel engine, known for strong torque and fuel efficiency.
| Item | Details |
|---|---|
| Engine Manufacturer | Sisu Diesel (AGCO Power) |
| Engine Type | 4-cylinder diesel |
| Displacement | 4.9 L |
| Engine Power (gross) | 140 hp (104.4 kW) |
| PTO Power (claimed) | 115 hp (85.8 kW) |
| Fuel Tank Capacity | 38 gal (143.8 L) |
| Optional Tank | 55 gal (208.2 L) |
Engine Features
- High torque output for demanding work
- Efficient fuel consumption
- Durable and reliable performance
Transmission
| Item | Details |
|---|---|
| Transmission Type | Partial power shift |
| Gears | 16-speed |
Transmission Benefits
- Smooth shifting under load
- Efficient performance in both field and transport
- Designed for heavy-duty applications
Performance (Test Results)
| Item | Details |
|---|---|
| Drawbar Power (tested) | 103.1 hp (76.9 kW) |
| PTO Power (tested) | 134.95 hp (100.6 kW) |
Hydraulics
The hydraulic system supports a wide range of heavy implements with strong lifting capability.
| Item | Details |
|---|---|
| Type | Open center (Closed center optional) |
| Pump Flow | 15 gpm (56.8 L/min) |
| Optional Flow | 26 gpm (98.4 L/min) |
| Closed Center Flow | 29 gpm (109.8 L/min) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 rpm |
Hitch & Lifting Capacity
| Item | Details |
|---|---|
| Hitch Type | Category III / II |
| Control | Electronic draft sensing |
| Rear Lift Capacity | 9,189 lbs (4,168 kg) |
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase | 105.3 in (267 cm) |
| Weight | 9,453 – 10,163 lbs (4,290 – 4,610 kg) |
| Front Tires | 10.00-16 |
| Rear Tires (2WD) | 460/85R34 |
Mechanical Features
- Two-wheel or four-wheel drive options
- Inboard planetary final drives
- Electro-hydraulic rear differential lock
- Power steering for smooth handling
- Hydraulic wet disc brakes
- Trailer brakes (optional)
- Cab with air-conditioning (standard)
Attachments
| Attachment | Details |
|---|---|
| Front-End Loader | Compatible |
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Amps | 80 (120 optional) |
| Batteries | 2 |
| Battery | 12V / 600 CCA |
Applications
The Massey Ferguson 5480 is ideal for:
- Large-scale farming
- Heavy plowing and cultivation
- Loader and material handling
- Transport and hauling
- Intensive agricultural operations
Why Choose Massey Ferguson 5480?
- Powerful 140 HP engine
- Strong hydraulic and lifting capacity
- Advanced transmission system
- Comfortable operator environment
- Proven reliability in global markets
Availability from EVERY FARM TRACTOR
EVERY FARM TRACTOR supplies high-quality used tractors from Japan to customers worldwide.
- Thorough inspection before export
- Fast and reliable shipping
- Support for all experience levels
- Export track record to 100+ countries
Photos
Photos of the Massey Ferguson 5480 are available upon request.
Please contact us for actual unit images or similar stock information.
