Massey Ferguson 5475 – 135HP Tractor Specs Guide

Overview

EVERY FARM TRACTOR has been exporting high-quality used tractors from Japan to over 100 countries since 2006.

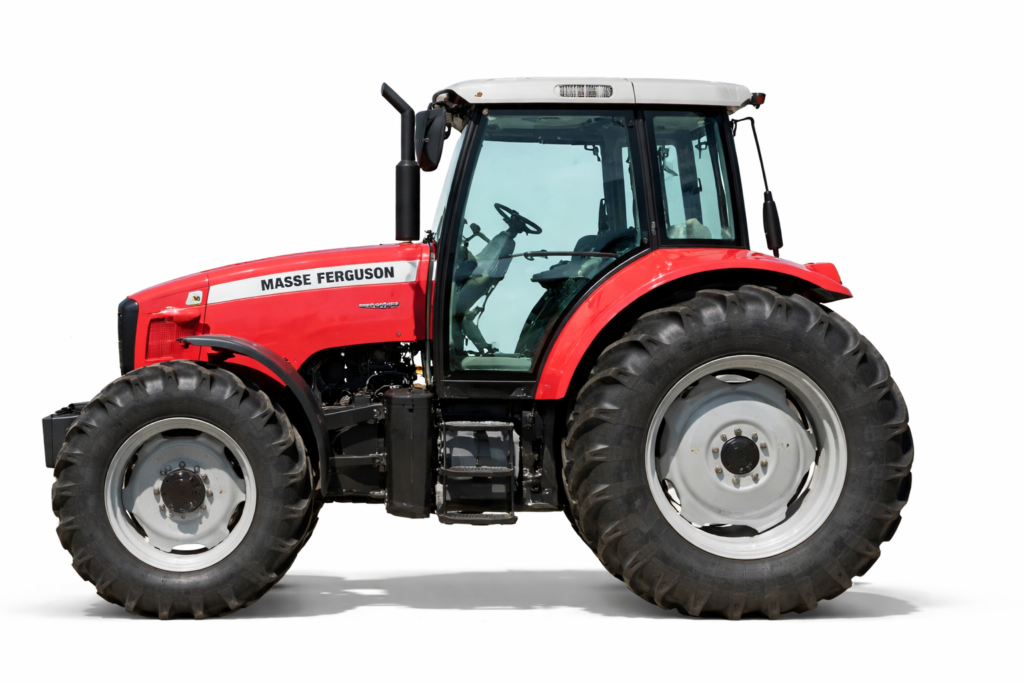

The Massey Ferguson 5475 is a high-powered utility tractor from the 5400 Series, built in France for demanding agricultural and commercial applications. Known for its strength, reliability, and advanced features, this model is designed for farmers who require consistent performance in heavy-duty operations.

With its 135 HP Perkins engine, advanced transmission, and high-capacity hydraulics, the 5475 is ideal for large-scale farming, transport, and loader work.


Key Specifications

Item Details
Model Massey Ferguson 5475
Series 5400 Series
Production Years 2008 – 2013
Manufacturer Massey Ferguson
Production Location Beauvais, France
Type Utility Tractor
Drive 2WD / 4WD

Engine

The Massey Ferguson 5475 is equipped with a powerful Perkins diesel engine, delivering strong torque and excellent durability.

Item Details
Engine Manufacturer Perkins
Engine Type 6-cylinder diesel
Displacement 6.6 L
Engine Power (gross) 135 hp (100.7 kW)
PTO Power (claimed) 110 hp (82.0 kW)
Fuel Tank Capacity 38 gal (143.8 L)
Optional Tank 55 gal (208.2 L)

Engine Features

  • High torque for heavy-duty work
  • Smooth operation with 6-cylinder design
  • Reliable and fuel-efficient performance

Transmission

Item Details
Transmission Type Partial power shift
Gears 16-speed

Transmission Benefits

  • Smooth shifting under load
  • Improved efficiency in field and transport work
  • Durable for continuous heavy use

Performance (Test Results)

Item Details
Drawbar Power (tested) 101.2 hp (75.5 kW)
PTO Power (tested) 133.6 hp (99.6 kW)

Hydraulics

The hydraulic system supports a wide range of heavy implements with strong lifting performance.

Item Details
Type Open center (Closed center optional)
Pump Flow 15 gpm (56.8 L/min)
Optional Flow 26 gpm (98.4 L/min)
Closed Center Flow 29 gpm (109.8 L/min)

PTO (Power Take-Off)

Item Details
Rear PTO Independent
Rear PTO Speeds 540 / 1000 rpm
Front PTO Optional (Independent)
Front PTO Speed 1000 rpm

Hitch & Lifting Capacity

Item Details
Hitch Type Category III / II
Control Electronic draft sensing
Rear Lift Capacity 9,189 lbs (4,168 kg)

Dimensions & Weight

Item Details
Wheelbase 112.3 in (285 cm)
Weight 11,195 – 11,905 lbs (5,080 – 5,400 kg)
Front Tires 10.00-16
Rear Tires (2WD) 460/85R34

Mechanical Features

  • Two-wheel or four-wheel drive options
  • Inboard planetary final drives
  • Electro-hydraulic rear differential lock
  • Power steering for smooth operation
  • Hydraulic wet disc brakes
  • Trailer brakes (optional)
  • Comfortable cab with air-conditioning (standard)

Attachments

Attachment Details
Front-End Loader Compatible

Electrical System

Item Details
Ground Negative
Charging System Alternator
Charging Amps 80 (120 optional)
Battery 12V / 775 CCA

Applications

The Massey Ferguson 5475 is ideal for:

  • Large-scale farming operations
  • Heavy plowing and cultivation
  • Loader and material handling
  • Transport and hauling
  • Livestock farm work

Why Choose Massey Ferguson 5475?

  • Powerful 135 HP engine
  • Advanced transmission system
  • Strong hydraulic lifting capacity
  • Comfortable and modern cab
  • Built for heavy-duty, long-term use
