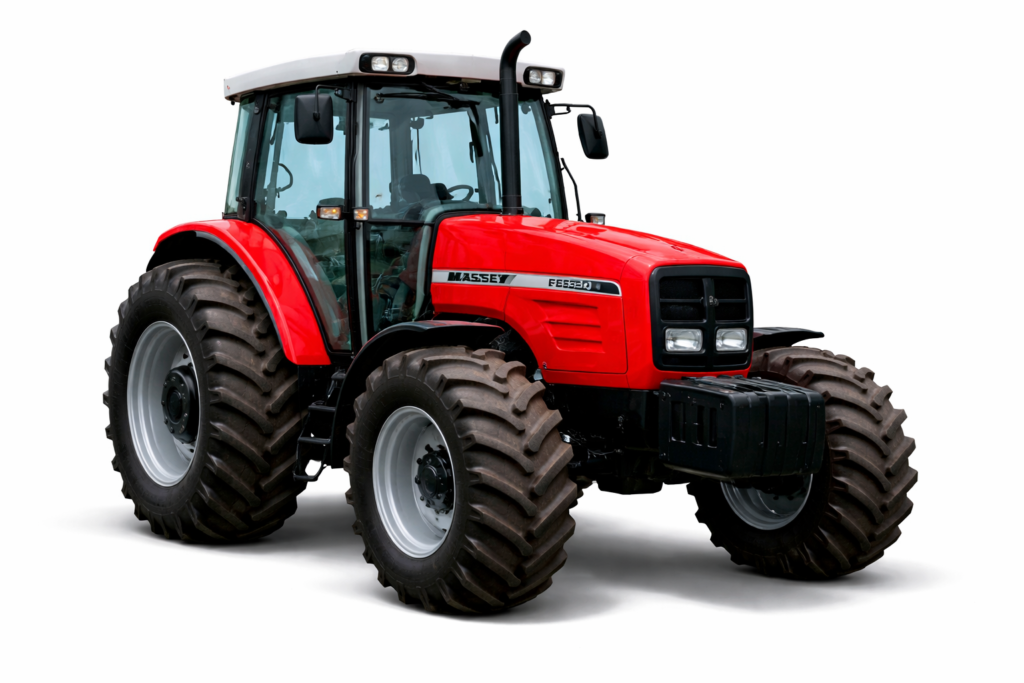

Massey Ferguson 5320 Tractor – Specifications and Overview
Overview
The Massey Ferguson 5320 is the most powerful model in the 5000 Series utility tractor lineup, produced between 2002 and 2009. Built in Brazil, this model is designed for farmers who require higher horsepower and increased capability for demanding agricultural tasks.
With a 120 horsepower engine, the MF 5320 is ideal for heavy-duty operations such as deep tillage, large implement work, and intensive field operations.
| Item | Details |
|---|---|
| Model | Massey Ferguson 5320 |
| Production Years | 2002 – 2009 |
| Series | 5000 Series |
| Type | Utility Tractor |
| Manufacturer | Massey Ferguson (AGCO) |
| Built in | Canoas, Brazil |
Engine
The Massey Ferguson 5320 is powered by a larger Perkins diesel engine, offering enhanced power and torque compared to smaller models in the series.
| Item | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 6-cylinder |
| Displacement | 6.0 L |
| Engine Power | 120 hp (89.5 kW) |
This engine delivers strong performance for heavy agricultural workloads.
Transmission
| Item | Details |
|---|---|
| Transmission Type | Gear |
| Gears | 12-speed |
The 12-speed transmission ensures reliable and efficient operation in both field and transport conditions.
Hydraulics
| Item | Details |
|---|---|
| Type | Open center |
| Capacity | 13.2 gal (50.0 L) |
| Total Flow | 14.5 gpm (54.9 L/min) |
| Optional Flow | 17.4 gpm (65.9 L/min) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| PTO Type | Independent |
| PTO Speeds | 540 rpm / 540 & 1000 rpm |
| Engine RPM | 540 @ 1900 rpm / 1000 @ 2000 rpm |
Hitch
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Lift Capacity | 6614 lbs (3000 kg) |
| Optional Lift | 8818 lbs (3999 kg) |
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase | 102.8 inches (261 cm) |
| Weight | 9,085 lbs (4,120 kg) |
Tires
| Item | Details |
|---|---|
| Front Tires | 14.9-26 |
| Rear Tires | 23.1-30 |
Capacity
| Item | Details |
|---|---|
| Fuel Tank | 33 gal (124.9 L) |
| Hydraulic System | 13.2 gal (50.0 L) |
Mechanical Features
- Four-wheel drive (4WD)
- Planetary final drives
- Electro-hydraulic rear differential lock
- Power steering
- Wet disc brakes
- Two-post ROPS
- Optional cab with air-conditioning
These features ensure high durability, safety, and operator comfort.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 70 amps |
| Batteries | 2 |
| Battery Voltage | 12V |
| Battery Capacity | 70 AH |
Conclusion
The Massey Ferguson 5320 is a powerful and capable utility tractor designed for farmers who require maximum performance within the 5000 Series.
With its 120 HP Perkins engine, robust hydraulics, and durable construction, it is an excellent choice for heavy-duty agricultural operations and demanding workloads.
