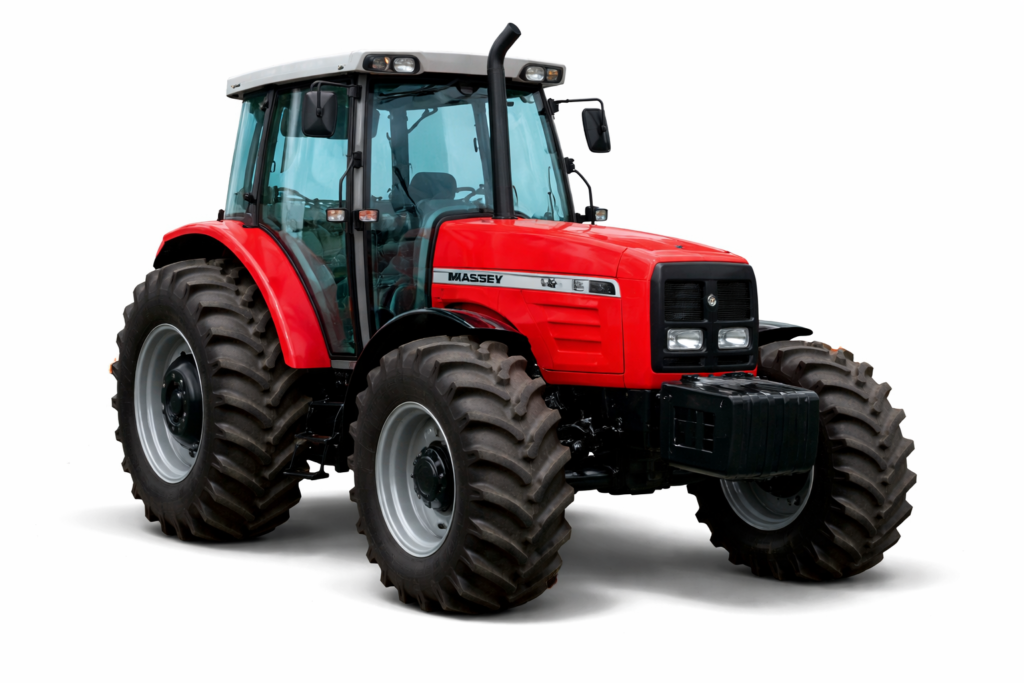

Massey Ferguson 5300 Tractor – Specifications and Overview
Overview
The Massey Ferguson 5300 is a versatile and powerful utility tractor produced between 2002 and 2006 as part of the 5000 Series. Built in Brazil, this model offers increased performance compared to earlier models, making it suitable for more demanding agricultural tasks.
With a 95 horsepower engine, the MF 5300 is ideal for medium to heavy-duty farm work such as plowing, transport, loader work, and operating large implements.
| Item | Details |
|---|---|
| Model | Massey Ferguson 5300 |
| Production Years | 2002 – 2006 |
| Series | 5000 Series |
| Type | Utility Tractor |
| Manufacturer | Massey Ferguson (AGCO) |
| Built in | Canoas, Brazil |
Engine
The Massey Ferguson 5300 is powered by a reliable Perkins diesel engine, designed for durability and efficient fuel consumption.
| Item | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 4.0 L |
| Engine Power | 95 hp (70.8 kW) |
This engine provides strong torque and consistent performance for various agricultural operations.
Transmission
| Item | Details |
|---|---|
| Transmission Type | Gear |
| Gears | 12-speed / 18-speed |
The available transmission options provide flexibility and efficiency across different field conditions.
Hydraulics
| Item | Details |
|---|---|
| Type | Open center |
| Capacity | 13.2 gal (50.0 L) |
| Total Flow | 14.5 gpm (54.9 L/min) |
| Optional Flow | 18 gpm (68.1 L/min) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| PTO Type | Independent |
| PTO Speeds | 540 rpm / 540 & 1000 rpm |
| Engine RPM | 540 @ 1900 rpm / 1000 @ 2000 rpm |
Hitch
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Lift Capacity | 6614 lbs (3000 kg) |
| Optional Lift | 8818 lbs (3999 kg) |
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase | 92.5 inches (234 cm) |
| Weight | 7,736 – 8,287 lbs |
Tires
| Item | Details |
|---|---|
| Front Tires | 9.00-16 |
| Rear Tires (2WD) | 18.4-34 |
Capacity
| Item | Details |
|---|---|
| Fuel Tank | 33 gal (124.9 L) |
| Hydraulic System | 13.2 gal (50.0 L) |
Mechanical Features
- Two- or four-wheel drive (2WD / 4WD)
- Planetary final drives
- Electro-hydraulic rear differential lock
- Power steering
- Wet disc brakes
- Two-post ROPS
- Optional cab with air-conditioning
These features improve both performance and operator comfort.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 70 amps |
| Battery Voltage | 12V |
| Battery Capacity | 90 AH |
Conclusion
The Massey Ferguson 5300 is a powerful and flexible utility tractor designed for farmers who require higher performance and efficiency.
With its 95 HP Perkins engine, strong hydraulic system, and multiple transmission options, it is an excellent choice for medium to heavy agricultural operations.
