Massey Ferguson 5290 Tractor – Specifications and Overview
Overview

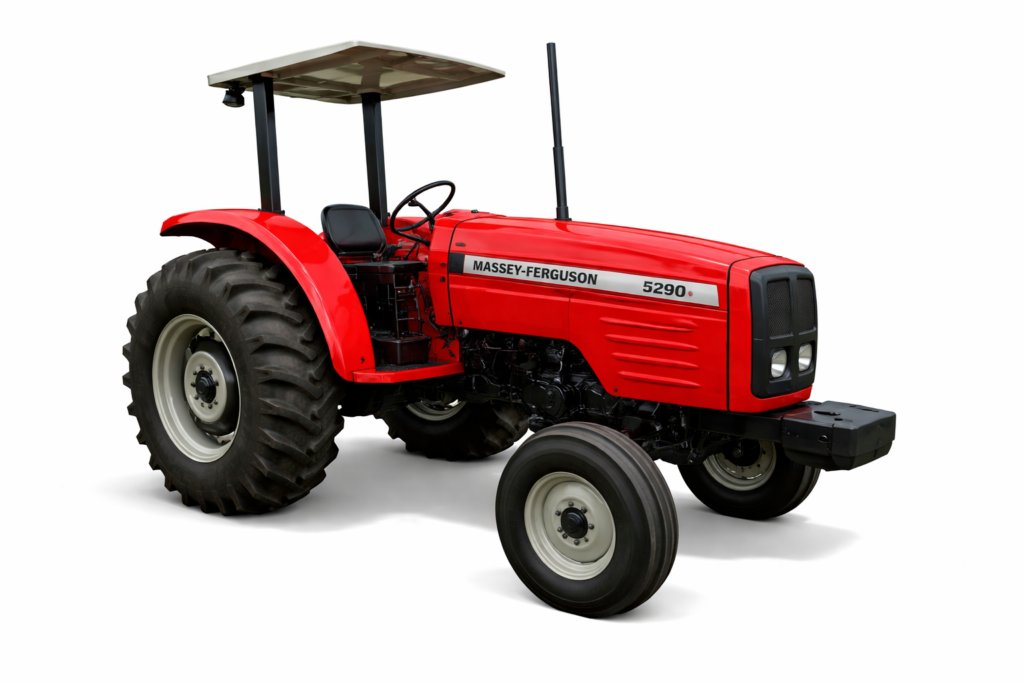

The Massey Ferguson 5290 is a powerful utility tractor produced between 2002 and 2009 as part of the 5000 Series. Built in Brazil, this model offers improved performance over the 5285, making it suitable for more demanding agricultural tasks.
With an 88 horsepower engine, the MF 5290 is ideal for medium to heavy-duty farm work such as plowing, transport, loader operations, and operating larger implements.
| Item | Details |
|---|---|
| Model | Massey Ferguson 5290 |
| Production Years | 2002 – 2009 |
| Series | 5000 Series |
| Type | Utility Tractor |
| Manufacturer | Massey Ferguson (AGCO) |
| Built in | Canoas, Brazil |
Engine
The Massey Ferguson 5290 is equipped with a reliable Perkins diesel engine, designed for durability and efficiency.
| Item | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 4.1 L |
| Engine Power | 88 hp (65.6 kW) |
This engine provides strong torque and stable output for a wide range of farming operations.
Transmission
| Item | Details |
|---|---|
| Transmission Type | Gear |
| Gears | 12-speed / 18-speed |
The availability of multiple transmission options allows operators to choose the best setup for their working conditions.
Hydraulics
| Item | Details |
|---|---|
| Type | Open center |
| Capacity | 11.8 gal (44.7 L) |
| Pressure | 2176 psi (150 bar) |
| Valves | 1 or 2 |
| Total Flow | 11.1 gpm (42.0 L/min) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| PTO Type | Transmission / Independent (Optional) |
| PTO Speeds | 540 rpm / 540 & 1000 rpm |
| Engine RPM | 540 @ 1900 rpm |
| Clutch | 254 mm dry disc |
Hitch
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Control | Position and depth control |
| Lift Capacity | 5512 lbs (2500 kg) |
| Optional Lift | 7055 lbs (3200 kg) |
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase (2WD) | 89.1 inches (226 cm) |
| Wheelbase (4WD) | 89.3 inches (226 cm) |
| Weight | 10,362 – 11,244 lbs |
Tires
| Item | Details |
|---|---|
| Front Tires | 7.50-16 |
| Rear Tires (2WD) | 18.4-30 |
Capacity
| Item | Details |
|---|---|
| Fuel Tank | 26.4 gal (99.9 L) |
| Hydraulic System | 11.8 gal (44.7 L) |
Mechanical Features
- Two- or four-wheel drive (2WD / 4WD)
- Planetary final drives
- Mechanical rear differential lock
- Power steering
- Wet disc brakes
- Two-post ROPS
These features provide durability, safety, and ease of use in daily operations.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 35 amps |
| Battery Voltage | 12V |
| Battery Capacity | 90 AH |
Conclusion
The Massey Ferguson 5290 is a highly capable utility tractor that delivers increased power and versatility compared to other models in the 5000 Series.
With its 88 HP Perkins engine, flexible transmission options, and strong hydraulic system, it is an excellent choice for farmers who need a reliable machine for medium to heavy-duty agricultural work.
