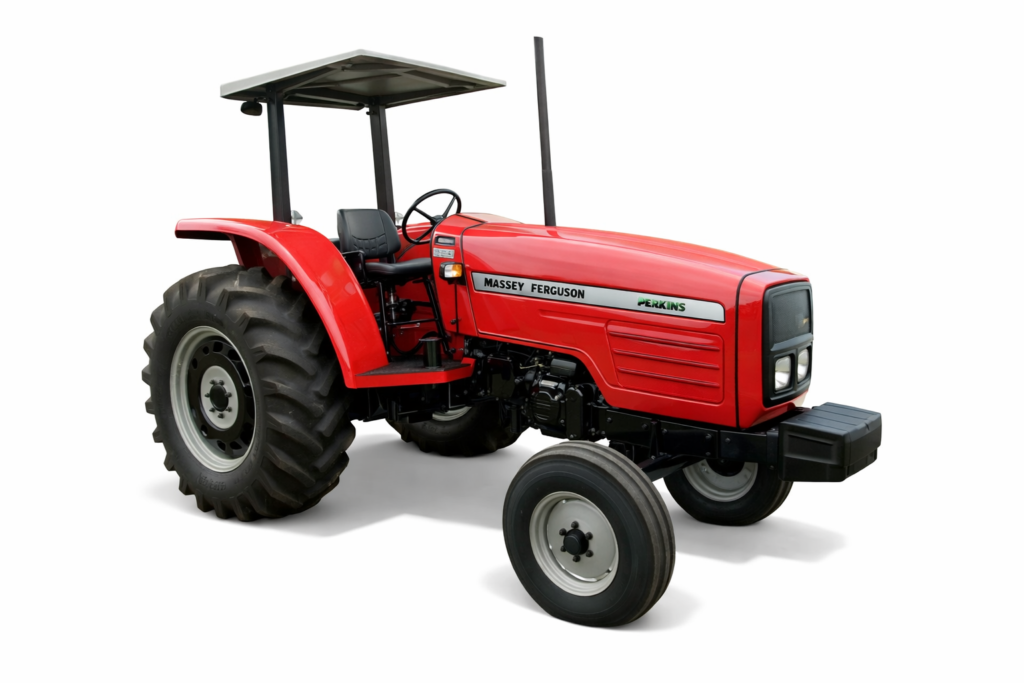

Massey Ferguson 5275 Tractor – Specifications and Overview
Overview
The Massey Ferguson 5275 is a reliable utility tractor produced between 2002 and 2007 as part of the 5000 Series. Built in Brazil, this model is designed for versatility and efficiency, making it suitable for small to medium-scale farming operations.
With a 75 horsepower engine, the MF 5275 is ideal for tasks such as plowing, hauling, spraying, and general farm work.
| Item | Details |
|---|---|
| Model | Massey Ferguson 5275 |
| Production Years | 2002 – 2007 |
| Series | 5000 Series |
| Type | Utility Tractor |
| Manufacturer | Massey Ferguson (AGCO) |
| Built in | Canoas, Brazil |
Engine
The Massey Ferguson 5275 is powered by a durable Perkins diesel engine, known for fuel efficiency and long service life.
| Item | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 4.1 L |
| Engine Power | 75 hp (55.9 kW) |
This engine provides stable performance for a wide range of agricultural tasks.
Transmission
| Item | Details |
|---|---|
| Transmission Type | Gear |
| Gears | 12-speed |
The 12-speed transmission allows flexible operation across different field and transport conditions.
Hydraulics
| Item | Details |
|---|---|
| Type | Open center |
| Capacity | 10 gal (37.9 L) |
| Pressure | 2176 psi (150 bar) |
| Valves | 0 to 2 |
| Total Flow | 11.1 gpm (42.0 L/min) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| PTO Type | Transmission / Live / Independent (Optional) |
| PTO Speed | 540 rpm |
| Engine RPM | 540 @ 1900 rpm |
| Clutch | 254 mm dry disc |
Hitch
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Control | Position and depth control |
| Lift Capacity | 4630 lbs (2100 kg) |
| Optional Lift | 5512 lbs (2500 kg) |
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase (2WD) | 83.9 inches (213 cm) |
| Wheelbase (4WD) | 83.4 inches (211 cm) |
| Weight | 6680 lbs (3030 kg) |
Tires
| Item | Details |
|---|---|
| Front Tires | 7.50-16 |
| Rear Tires (2WD) | 14.9-28 |
Capacity
| Item | Details |
|---|---|
| Fuel Tank | 26.4 gal (99.9 L) |
| Hydraulic System | 10 gal (37.9 L) |
Mechanical Features
- Two- or four-wheel drive (2WD / 4WD)
- Planetary final drives
- Mechanical rear differential lock
- Power steering
- Wet disc brakes
- Two-post ROPS
These features provide durability, safety, and ease of operation.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 35 amps |
| Battery Voltage | 12V |
| Battery Capacity | 90 AH |
Conclusion
The Massey Ferguson 5275 is a dependable and versatile utility tractor, ideal for farmers who need a balance of power, efficiency, and ease of maintenance.
With its Perkins engine, simple mechanical design, and flexible configurations, it is well-suited for daily agricultural tasks and remains a popular choice in the used tractor market worldwide.
