Massey Ferguson 4900 Tractor – Full Specifications and Overview
Overview

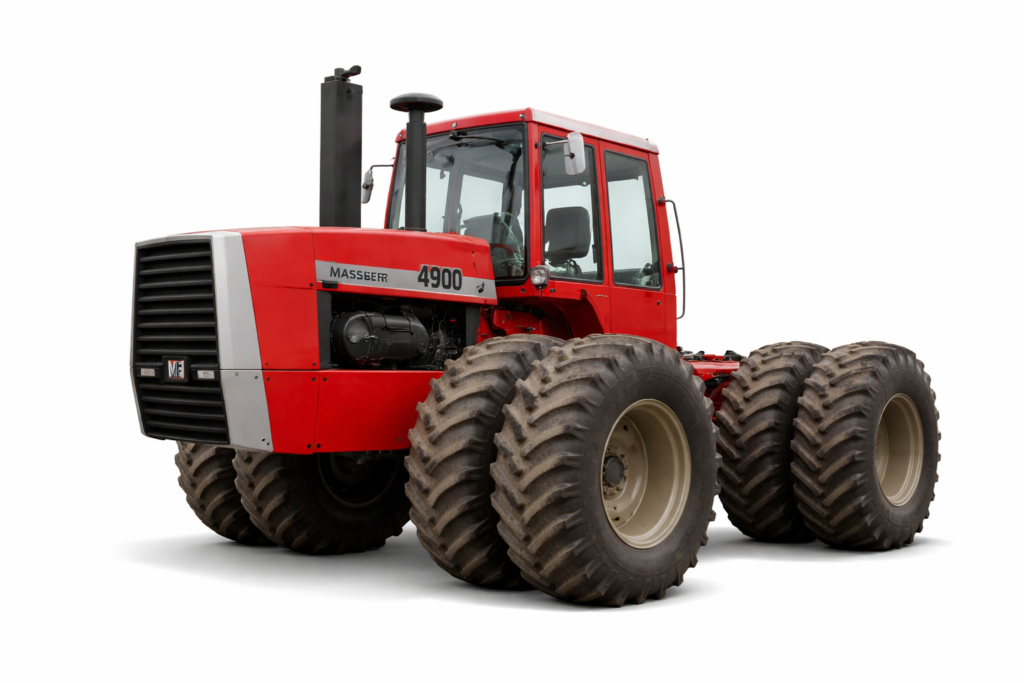

The Massey Ferguson 4900 is a powerful articulated four-wheel-drive tractor produced between 1980 and 1983. Designed for large-scale farming operations, this model belongs to the 4000 4WD Series and delivers exceptional power, durability, and field performance.
With a massive 375 horsepower engine, the MF 4900 was one of the most powerful tractors of its time. It is especially suitable for heavy-duty tasks such as large field cultivation, deep plowing, and high-capacity implements.
| Item | Details |
|---|---|
| Model | Massey Ferguson 4900 |
| Production Years | 1980 – 1983 |
| Series | 4000 4WD Series |
| Type | Articulated 4WD Tractor |
| Manufacturer | Massey Ferguson |
| Original Price | $123,400 (1983) |
Engine
The Massey Ferguson 4900 is equipped with a robust Cummins diesel engine, delivering high torque and consistent performance under heavy workloads.
| Item | Details |
|---|---|
| Engine Manufacturer | Cummins |
| Engine Type | Diesel |
| Cylinders | 8-cylinder |
| Displacement | 14.8 L |
| Engine Power (Net) | 375 hp (279.6 kW) |
| PTO Power (Claimed) | 321 hp (239.4 kW) |
This large displacement engine ensures excellent fuel efficiency for its size while maintaining strong pulling power.
Transmission
The tractor features a partial power shift transmission, allowing smoother gear transitions and improved operational efficiency.
| Item | Details |
|---|---|
| Transmission Type | Partial Power Shift |
| Gears | 18-speed |
This transmission system provides flexibility for various field conditions and heavy-duty applications.
Performance (Test Results)
| Item | Details |
|---|---|
| Drawbar Power (Tested) | 266.16 hp (198.5 kW) |
| PTO Power (Tested) | 320.55 hp (239.0 kW) |
These figures demonstrate the tractor’s ability to deliver reliable power in real-world farming conditions.
Hydraulics
The hydraulic system is designed to handle large implements efficiently.
| Item | Details |
|---|---|
| Type | Open center |
| Valves | 3 to 4 |
| Pump Flow (Total) | 60 gpm (227.1 L/min) |
| Auxiliary Flow | 28 gpm (106.0 L/min) |
Hitch & PTO
| Item | Details |
|---|---|
| Rear Hitch Type | Category IV |
| Lift Capacity | 13,000 lbs (5896 kg) |
| PTO Type | Independent |
| PTO Speed | 1000 rpm |
This setup makes the MF 4900 compatible with large agricultural implements.
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase | 137 inches (347 cm) |
| Weight | 27,000 – 30,965 lbs |
| Drive Type | 4WD (Articulated) |
The heavy weight improves traction and stability, especially in challenging field conditions.
Tires
| Item | Details |
|---|---|
| Front Tires | 23.1-34 |
| Rear Tires | 23.1-34 |
Capacity
| Item | Details |
|---|---|
| Fuel Tank | 190 gal (719.1 L) |
| Steering Capacity | 96 qts (90.9 L) |
| Front Axle | 42 qts (39.7 L) |
| Rear Axle | 84 qts (79.5 L) |
Mechanical Features
- Four-wheel drive (4WD)
- Articulated power steering
- Planetary final drives
- Hydraulic caliper brakes
- Cab with heater and air-conditioning
- Optional AM/FM 8-track stereo system
Serial Number Location
| Location | Details |
|---|---|
| Serial Plate | Rear, right side of cab |
| Year | Serial Number |
|---|---|
| 1980 | 9D002102 |
| 1981 | 9D002752 |
| 1982 | 9D003515 |
| 1983 | 9D003897 |
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Capacity | 60 amps |
| Batteries | 4 |
| Voltage | 12V |
Conclusion
The Massey Ferguson 4900 remains a legendary high-horsepower tractor, built for large-scale agricultural operations. Its powerful Cummins engine, durable construction, and advanced features for its time make it a valuable option even in today’s used tractor market.
For buyers looking for heavy-duty performance, reliability, and large-scale farming capability, this model is an excellent choice.
