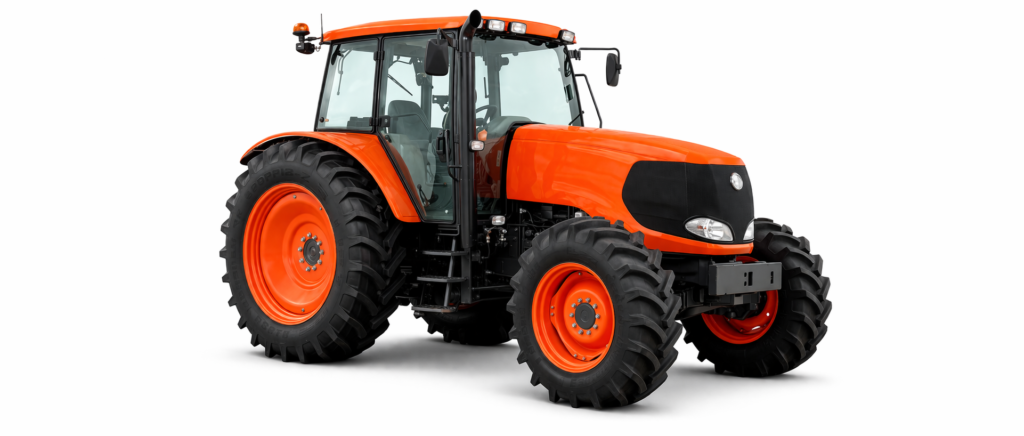

Kubota M135X – High-Power Row-Crop Tractor for Heavy-Duty Farming
Overview
The Kubota M135X is a powerful row-crop tractor produced from 2009 to 2014, designed for demanding agricultural operations. As one of the top models in the X Series lineup, it delivers strong engine performance, advanced hydraulics, and excellent reliability.
With a 135 HP engine, high PTO output, and durable construction, the M135X is ideal for heavy tillage, planting, and large-scale farming operations.
Key Specifications
| Item | Details |
|---|---|
| Model | Kubota M135X |
| Type | Row-Crop Tractor |
| Production Years | 2009 – 2014 |
| Manufacturer | Kubota |
| Drive System | 4WD |
| Original Price | $69,644 (2011) |
Engine
The Kubota M135X is equipped with a high-performance diesel engine built for demanding workloads.
| Item | Details |
|---|---|
| Engine Type | Kubota Diesel |
| Cylinders | 4-cylinder |
| Displacement | 6.1L |
| Net Power | 135 HP (100.7 kW) |
| PTO Power (claimed) | 118 HP (88.0 kW) |
| PTO Power (tested) | 123.2 HP (91.9 kW) |
| Drawbar Power (tested) | 103.9 HP (77.5 kW) |
| Fuel Tank Capacity | 190 L |
Features:
- High output for heavy-duty applications
- Strong torque and pulling power
- Reliable Kubota engine design
Transmission
The M135X offers flexible transmission systems for different working conditions.
| Type | Details |
|---|---|
| Standard | 16-speed partial powershift |
| Optional | 24-speed transmission |
Benefits:
- Smooth shifting during operation
- Precise speed control
- Suitable for both field work and transport
Hydraulics
The hydraulic system provides strong and efficient performance for implements.
| Item | Details |
|---|---|
| Type | Open center |
| Pump Flow | 77.2 L/min |
| Total Flow | 135.1 L/min |
| Steering Flow | 57.9 L/min |
| Remote Valves | 2 to 4 |
Advantages:
- Supports a wide range of implements
- Stable hydraulic operation
- Efficient loader and field performance
PTO (Power Take-Off)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| PTO Speeds | 540 / 1000 rpm |
Hitch Capacity
| Item | Details |
|---|---|
| Hitch Type | Category II |
| Lift Capacity (ends) | 2,634 kg |
| Lift Capacity (optional) | 4,285 kg |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 268 cm |
| Weight | 4,599 kg |
| Front Tires | 14.9R24 |
| Rear Tires | 18.4R38 |
Mechanical Features
- Four-wheel drive (4WD)
- Electro-hydraulic differential lock (front & rear)
- Hydrostatic power steering
- Hydraulic wet disc brakes
- Cab with air-conditioning and heating
- Optional radio/CD player
Variants
- M135XDTC – Standard front axle
- M135XDTSC – Front axle suspension (improved comfort)
Attachments
The Kubota M135X supports:
- Front-end loader
- Various agricultural implements (plows, seeders, sprayers, etc.)
Why Choose Kubota M135X?
- ✔ High engine power (135 HP)
- ✔ Excellent PTO performance
- ✔ Reliable Kubota diesel engine
- ✔ Strong hydraulic system
- ✔ Suitable for large-scale farming
Ideal Applications
The M135X is ideal for:
- Heavy tillage operations
- Large-scale farming
- Planting and spraying
- Transport and hauling
- Loader work
Conclusion
The Kubota M135X is a powerful and reliable tractor designed for demanding agricultural environments. Its strong engine performance, advanced hydraulics, and durability make it an excellent choice for professional farmers.
