Overview

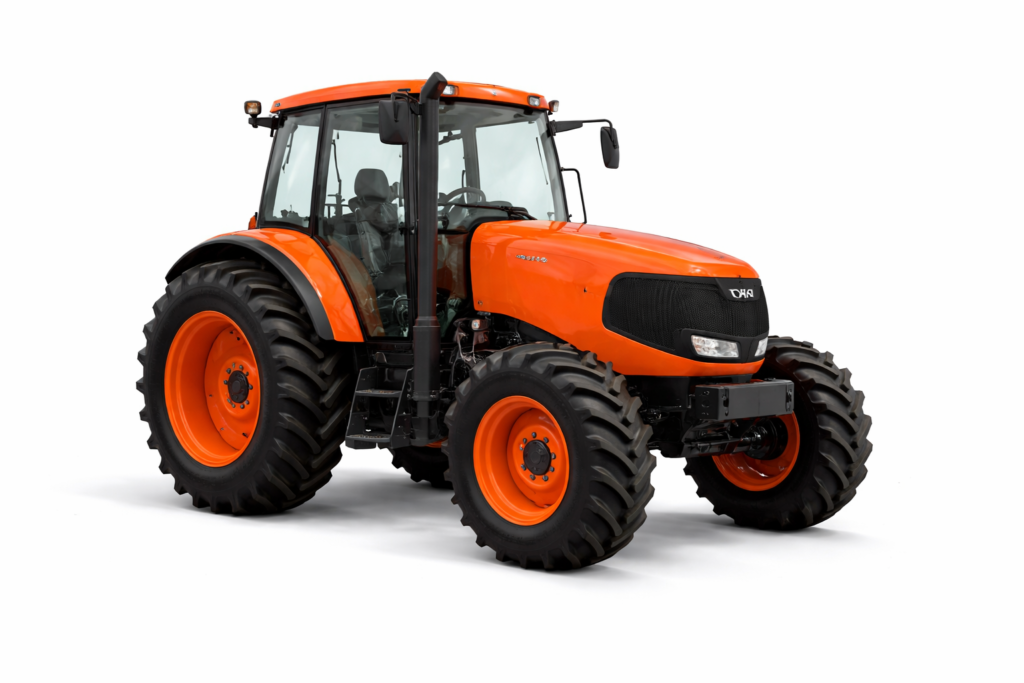

The Kubota M100X is a high-performance row-crop tractor produced between 2009 and 2014, designed for demanding agricultural operations. As part of Kubota’s M-Series, it offers excellent power, durability, and efficiency.
With 100 horsepower, the M100X is well-suited for heavy-duty tasks such as plowing, cultivation, planting, and transport. Its advanced transmission and strong hydraulic system make it a versatile machine for modern farming.
EVERY FARM TRACTOR has been exporting high-quality Japanese tractors since 2006 to over 100 countries, providing reliable solutions to farmers worldwide.
Key Specifications
| Item | Details |
|---|---|
| Model | Kubota M100X |
| Production Years | 2009 – 2014 |
| Category | Row-Crop Tractor |
| Manufacturer | Kubota |
| Engine Power (Gross) | 100 HP (74.6 kW) |
| Engine Power (Net) | 97.7 HP (72.9 kW) |
| PTO Power | 85 HP (63.4 kW) |
| Drive Type | 4WD |
Engine
The Kubota M100X is powered by a robust and efficient diesel engine.
| Item | Details |
|---|---|
| Engine Type | Kubota Diesel |
| Displacement | 3.8L |
| Cylinders | 4-cylinder |
| Fuel Capacity | 50.2 gal (190.0 L) |
This engine provides reliable power output and fuel efficiency for long working hours.
Transmission
The M100X offers flexible transmission options for different farming applications.
| Item | Details |
|---|---|
| Transmission Type | 16-speed partial power shift |
| Optional Transmission | 24-speed |
| Drive | 4WD |
These options allow smooth operation and efficient speed control in both field and transport work.
Power & PTO Performance
| Item | Details |
|---|---|
| Engine (Gross) | 100 HP |
| Engine (Net) | 97.7 HP |
| PTO (Claimed) | 85 HP |
| PTO (Tested) | 87.2 HP |
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 |
The strong PTO output ensures compatibility with a wide range of agricultural implements.
Hydraulics
The Kubota M100X is equipped with a powerful hydraulic system for efficient implement operation.
| Item | Details |
|---|---|
| Hydraulic Type | Open center |
| Capacity | 15.8 gal (59.8 L) |
| Pressure | 2844 psi (196.1 bar) |
| Valves | 2 to 4 |
| Pump Flow | 18.1 gpm (68.5 L/min) |
| Total Flow | 35.3 gpm (133.6 L/min) |
This system ensures smooth and responsive control for loaders and rear attachments.
Hitch & Lift Capacity
| Item | Details |
|---|---|
| Hitch Type | Category II |
| Rear Lift (at ends) | 5,809 lbs (2,634 kg) |
| Rear Lift (24″) | 5,203 lbs (2,360 kg) |
| Optional Lift Capacity | 9,447 lbs (4,285 kg) |
The strong lift capacity allows handling of heavy implements with ease.
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase | 95.9 inches (243 cm) |
| Weight | 8,863 lbs (4,020 kg) |
| Front Tires | 12.4R24 |
| Rear Tires | 18.4R30 |
The tractor’s balanced structure ensures stability and traction during operation.
Mechanical Features
- Four-wheel drive (4WD)
- Electro-hydraulic differential lock (front and rear)
- Hydrostatic power steering
- Hydraulic wet disc brakes
- Standard cab with air-conditioning
- Optional radio/CD player
These features improve operator comfort and safety.
Attachments
| Attachment | Details |
|---|---|
| Front-End Loader | Compatible |
The loader capability enhances versatility for material handling tasks.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 80 amps |
| Battery | 12V |
| Battery CCA | 900 |
Why Choose Kubota M100X?
The Kubota M100X is an excellent choice for farmers needing power and reliability:
- High-performance 100HP engine
- Advanced transmission options
- Strong hydraulic system for heavy-duty work
- Comfortable cab for long working hours
- Proven Kubota durability
Conclusion
The Kubota M100X is a powerful and reliable row-crop tractor designed for demanding agricultural tasks. Its combination of strength, efficiency, and versatility makes it an ideal machine for farmers worldwide.
EVERY FARM TRACTOR supplies carefully selected Japanese tractors to customers across the globe. If you are looking for a dependable tractor like the Kubota M100X, feel free to contact us anytime.
