Overview

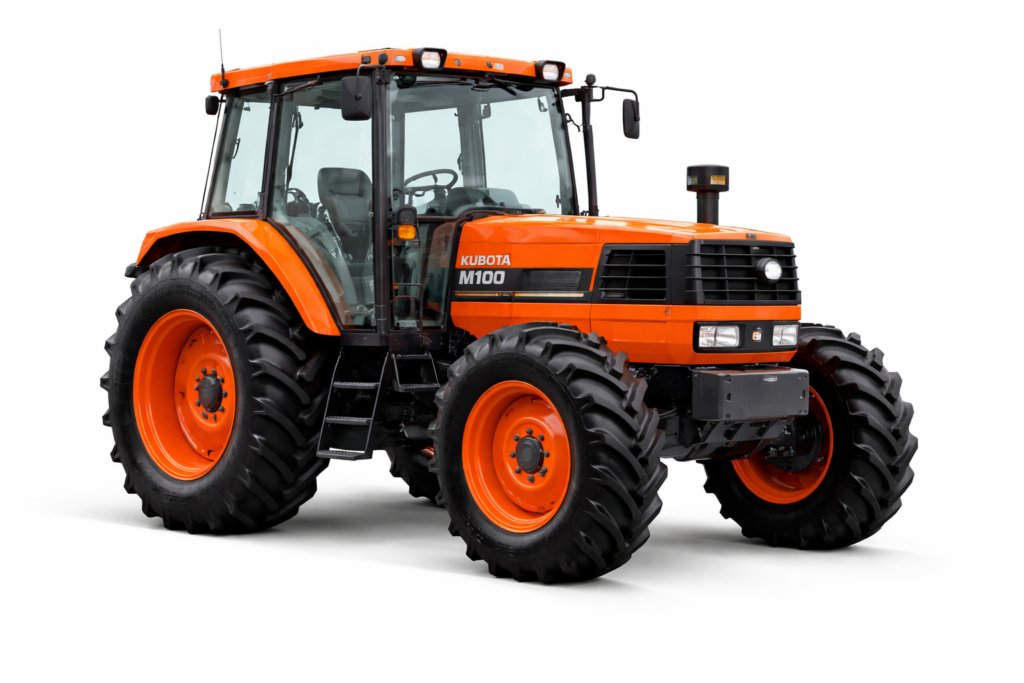

The Kubota M100 is a robust and reliable utility tractor from the Grandom Series, produced between 2002 and 2004. Designed for heavy-duty agricultural work, this model combines strong engine performance with durable construction and operator comfort.
With approximately 98.7 horsepower, the M100 is ideal for demanding farming operations such as tillage, hauling, spraying, and general fieldwork. It is well-known for its reliability and long service life, making it a trusted choice among farmers worldwide.
EVERY FARM TRACTOR has been exporting high-quality Japanese tractors since 2006 to over 100 countries, supporting global agriculture with dependable machinery.
Key Specifications
| Item | Details |
|---|---|
| Model | Kubota M100 |
| Production Years | 2002 – 2004 |
| Series | Grandom Series |
| Category | Utility Tractor |
| Manufacturer | Kubota |
| Engine Power | 98.7 HP (73.6 kW) |
| Drive Type | 4WD |
Engine
The Kubota M100 is equipped with a powerful and durable diesel engine suitable for heavy-duty use.
| Item | Details |
|---|---|
| Engine Type | Kubota Diesel |
| Displacement | 4.7L |
| Cylinders | 4-cylinder |
| Fuel Tank Capacity | 52.8 gal (199.8 L) |
The larger displacement engine provides strong torque output and reliable performance in demanding conditions.
Transmission
The M100 offers multiple transmission options for versatility in different applications.
| Item | Details |
|---|---|
| Transmission Type | 16-speed synchromesh |
| Optional Transmission | 16-speed power shift |
| Creeper Option | 24-speed creeper |
| Drive | 4WD |
These options allow efficient operation in both fieldwork and low-speed precision tasks.
Power & PTO
| Item | Details |
|---|---|
| Engine Power | 98.7 HP |
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 |
| Engine RPM | 540 @ 2035 RPM / 1000 @ 2211 RPM |
The independent PTO system ensures smooth operation with various agricultural implements.
Hydraulics & Hitch
| Item | Details |
|---|---|
| Hitch Type | Category II |
| Control | Position & electronic draft control |
| Rear Lift Capacity | 6,182 lbs (2,804 kg) |
| Optional Lift Capacity | 8,588 lbs (3,895 kg) |
This lifting capability supports a wide range of implements for diverse farming needs.
Dimensions & Weight
| Item | Details |
|---|---|
| Wheelbase | 96.1 inches (244 cm) |
| Weight | 8,025 lbs (3,640 kg) |
| Front Tires | 11.2-24 |
| Rear Tires | 16.9-34 |
The tractor’s weight and structure provide stability and traction during heavy operations.
Mechanical Features
- Four-wheel drive (4WD)
- Electro-hydraulic differential lock (front and rear)
- Power steering for easy maneuverability
- Hydraulic wet disc brakes
- Standard cab with air-conditioning
These features enhance both safety and operator comfort.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
Why Choose Kubota M100?
The Kubota M100 remains a strong choice for farmers seeking durability and performance:
- Powerful 4.7L engine with strong torque
- Reliable transmission options
- High lifting capacity for heavy implements
- Comfortable cab for long working hours
- Proven Kubota engineering and durability
Conclusion
The Kubota M100 is a durable and powerful utility tractor designed for demanding agricultural environments. Its combination of strength, reliability, and efficiency makes it an excellent investment for farmers worldwide.
