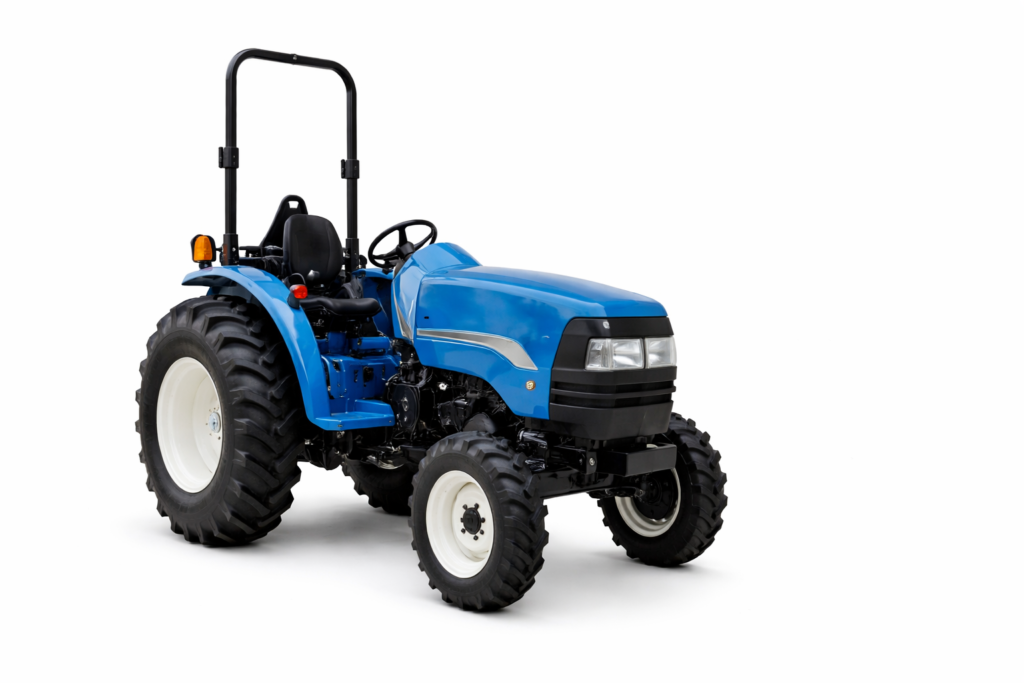

New Holland Workmaster 40 – Compact Utility Tractor Overview
The New Holland Workmaster 40 is a durable and efficient compact utility tractor built for farmers who need reliability, simplicity, and strong performance. Produced between 2013 and 2015, this model is part of the well-known Workmaster Series, positioned between the Workmaster 35 and newer models.
Equipped with a 2.0L 3-cylinder LS diesel engine, the Workmaster 40 delivers 38 horsepower, making it ideal for loader work, mowing, tilling, and general farm operations. Its combination of mechanical shuttle and hydrostatic transmission options provides flexibility for both experienced operators and beginners.
With its compact size, powerful hydraulics, and optional front loader, this tractor is widely used across farms, landscaping sites, and agricultural projects worldwide.
Key Specifications of New Holland Workmaster 40
| Item | Specification |
|---|---|
| Model | New Holland Workmaster 40 |
| Production Years | 2013 – 2015 |
| Category | Compact Utility Tractor |
| Manufacturer | New Holland |
| Drive System | 4WD |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | LS |
| Engine Type | Diesel, 3-cylinder |
| Displacement | 2.0 L |
| Fuel Tank Capacity | 28.0 L |
| Gross Engine Power | 38 hp (28.3 kW) |
The LS diesel engine is known for its strong torque, fuel efficiency, and durability, making it suitable for demanding agricultural tasks.
Transmission
| Type | Details |
|---|---|
| Mechanical Shuttle | 12-speed |
| Hydrostatic | Available (HST) |
The mechanical shuttle transmission allows smooth forward and reverse operation, especially useful for loader work. The hydrostatic option offers easy and precise speed control.
Power & PTO
| Item | Specification |
|---|---|
| Engine Power | 38 hp |
| PTO Type | Independent |
| Rear PTO Speed | 540 rpm |
| Gear PTO Power | 33.4 hp |
| Hydro PTO Power | 31.2 hp |
| Mid PTO | Optional (2000 rpm) |
This PTO setup supports a wide range of implements such as mowers, tillers, and loaders.
Hydraulics
| Item | Specification |
|---|---|
| Type | Open center gear pump |
| Pump Flow | 31.0 L/min |
| Total Flow | 49.2 L/min |
| Steering Flow | 18.2 L/min |
The hydraulic system ensures smooth and efficient operation of attachments, including front-end loaders.
3-Point Hitch
| Item | Specification |
|---|---|
| Hitch Category | Category I |
| Lift Capacity (ends) | 819 kg |
| Lift Capacity (24″) | 650 kg |
| Rear Arms | Fixed with telescopic stabilizers |
This hitch system allows for easy attachment and stable operation of various implements.
Dimensions & Weight
| Item | Specification |
|---|---|
| Weight | 1,315 kg |
Its balanced weight provides excellent stability without sacrificing maneuverability.
Mechanical Features
- Four-wheel drive (4WD)
- Mechanical rear differential lock
- Hydrostatic power steering
- Wet disc brakes
- Foldable two-post ROPS
These features ensure safe, reliable, and comfortable operation across different terrains.
Attachments
The Workmaster 40 is compatible with:
- Front-end loader (e.g., 110TL loader)
- Rotary mower
- Tiller
- Box blade
This makes it a versatile tractor for multiple farming applications.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 50 amps |
| Battery | 12V (80Ah, 660 CCA) |
Why Choose the New Holland Workmaster 40?
- Reliable 38HP diesel engine
- Flexible transmission options (gear & hydrostatic)
- Strong hydraulic performance
- Compact size with excellent maneuverability
- Compatible with a wide range of implements
This model is ideal for small to medium farms, landscaping, and agricultural work worldwide.
Conclusion
The New Holland Workmaster 40 is a practical and dependable compact tractor designed to handle a wide variety of tasks efficiently. Its combination of power, ease of use, and versatility makes it a valuable choice for farmers and agricultural businesses.
