Overview

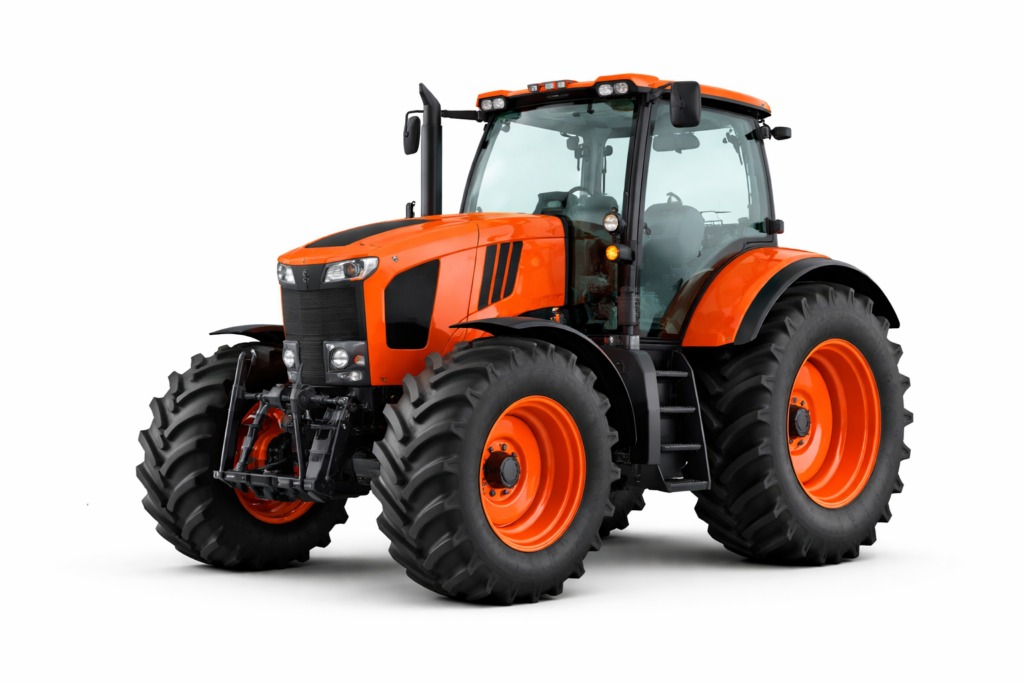

The Kubota M7-171 is the most powerful model in the M7-1 Series, designed for large-scale and professional agricultural operations. Produced from 2015 to 2018, this tractor delivers outstanding performance and advanced technology.
Moreover, it was built in France, combining European engineering standards with Kubota’s reliability. As a result, the M7-171 offers excellent efficiency, comfort, and durability in demanding environments.
Therefore, it is an ideal machine for farmers who require maximum power and productivity.
Engine Specifications
| Item | Specification |
|---|---|
| Engine Type | Kubota 4-cylinder diesel |
| Displacement | 6.1 L |
| Gross Power | 168 HP (125.3 kW) |
| Max Power | 173 HP (129.0 kW) |
| Fuel Tank Capacity | 329.3 L |
| DEF Tank Capacity | 37.9 L |
The 6.1L engine delivers exceptional power and torque. In addition, the large fuel tank ensures long operating hours without frequent refueling.
Transmission
| Item | Specification |
|---|---|
| Transmission Options | 24-speed power shift |
| Continuously Variable Transmission (CVT) |
The CVT transmission enables smooth and precise speed control. Consequently, it improves efficiency in both fieldwork and transport applications.
Power Performance
| Item | Specification |
|---|---|
| PTO Power (claimed) | 140 HP |
| PTO Power (tested) | 148.60 HP |
| Drawbar Power (tested) | 137.69 HP |
This high output makes the M7-171 ideal for heavy-duty implements and intensive agricultural tasks.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center / Closed center (load sensing) |
| Pump Flow | 79.5 – 109.8 L/min |
The advanced hydraulic system ensures efficient power delivery. As a result, it enhances performance when using multiple attachments.
3-Point Hitch
| Item | Specification |
|---|---|
| Hitch Type | Category III |
| Control | Electronic draft sensing |
| Lift Capacity | 6,699 kg |
The strong rear hitch supports large implements, improving productivity in demanding operations.
PTO (Power Take-Off)
| Item | Specification |
|---|---|
| Rear PTO Type | 540 / 540E / 1000 / 1000E |
| Front PTO | Optional |
| Front PTO Speed | 1000 rpm |
This flexible PTO system allows compatibility with a wide range of equipment.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 271 cm |
| Weight | 6,847 kg |
| Front Tire | 14.9R28 |
| Rear Tire | 18.4R38 |
The heavy-duty design provides excellent traction and stability, even under tough conditions.
Cab & Features
- Spacious cab (standard)
- Power steering
- Advanced control systems
- Designed for long working hours
The ergonomic cab enhances operator comfort and reduces fatigue during extended use.
Attachments
- Front-end loader (optional)
This adds versatility for both agricultural and material handling tasks.
Why Choose Kubota M7-171?
- Maximum power in the M7-1 Series (up to 173 HP)
- Smooth CVT transmission for efficiency
- Large fuel capacity for long operations
- Strong hydraulics and lifting performance
- Built in Europe with advanced engineering
Conclusion
In conclusion, the Kubota M7-171 is a high-performance tractor built for demanding agricultural operations. It combines powerful engine performance, advanced transmission options, and superior comfort.
Therefore, it is an excellent choice for farmers who need maximum productivity, reliability, and efficiency.
