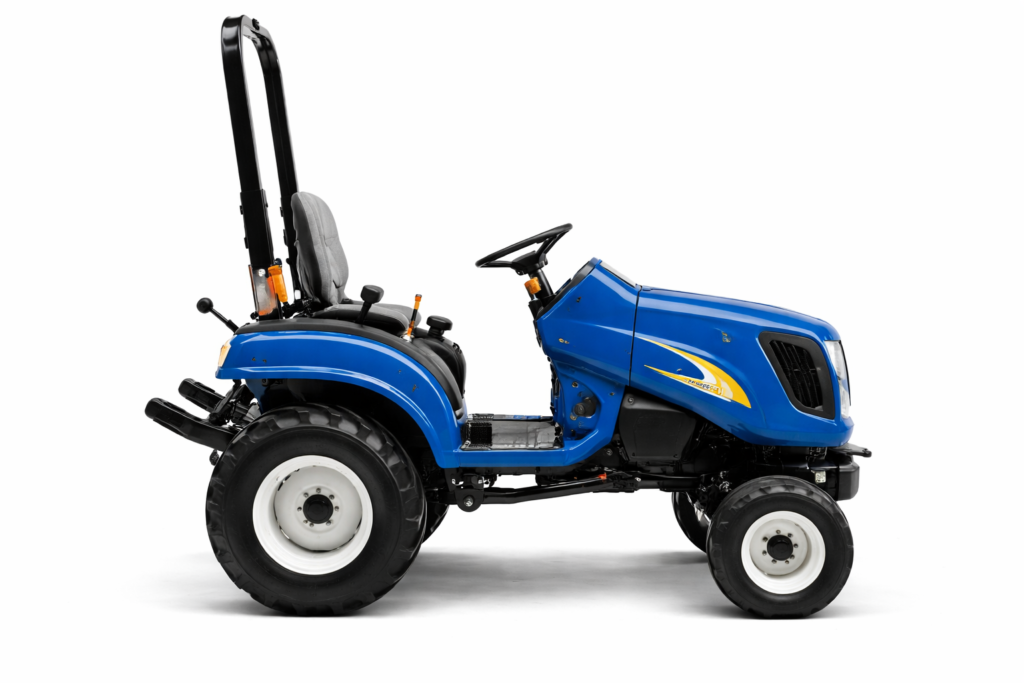

New Holland Boomer TZ18DA Overview
The New Holland Boomer TZ18DA is a compact and versatile sub-compact utility tractor, designed for small farms, landscaping, and property maintenance. Produced from 2003 to 2008, it is part of the Boomer TZ Series, alongside the more powerful TZ22DA.
This model is powered by a reliable Shibaura 1.0L 3-cylinder diesel engine, delivering 18 horsepower. Its compact size, ease of operation, and versatility make it ideal for homeowners, small-scale farmers, and maintenance professionals.
In addition, the TZ18DA features a hydrostatic transmission, allowing smooth and effortless control without manual gear shifting. Because of its lightweight design and multi-purpose capabilities, it remains a popular choice in the used compact tractor market worldwide.
New Holland TZ18DA Quick Specifications
| Item | Details |
|---|---|
| Model | New Holland TZ18DA |
| Series | Boomer TZ Series |
| Tractor Type | Sub-Compact Utility Tractor |
| Production Years | 2003 – 2008 |
| Manufacturer | New Holland (CNH) |
| Engine | Shibaura 1.0L 3-cylinder diesel |
| Engine Power | 18 hp (13.4 kW) |
| PTO Power | 13.7 hp (10.2 kW) |
| Transmission | Hydrostatic |
| Drive Type | 4WD |
| Fuel Tank Capacity | 7.9 gal (29.9 L) |
| Weight | 1311 lbs (594 kg) |
| PTO Type | 540 (rear) / 2200 (mid) |
| Hitch Type | Category I |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| ROPS | Two-post fixed ROPS |
Engine
The New Holland TZ18DA is equipped with a compact and efficient Shibaura 1.0-liter 3-cylinder diesel engine.
With 18 horsepower, it provides sufficient power for light-duty tasks such as mowing, landscaping, snow removal, and general property maintenance. The diesel engine also ensures fuel efficiency and long service life.
Engine Specifications
| Item | Details |
|---|---|
| Engine Manufacturer | Shibaura |
| Engine Type | Diesel |
| Cylinders | 3 |
| Displacement | 1.0 L |
| Engine Power | 18 hp |
| Engine Power | 13.4 kW |
| Fuel Tank | 7.9 gal |
| Fuel Tank | 29.9 L |
Transmission
The TZ18DA features a hydrostatic transmission, making it extremely easy to operate.
This system allows smooth forward and reverse movement without clutching or gear shifting, which is especially beneficial for beginners and frequent direction changes.
Transmission Specifications
| Item | Details |
|---|---|
| Transmission Type | Hydrostatic |
| Drive | Infinite variable speed |
Power and PTO
The tractor provides both rear and mid PTO systems, making it highly versatile for various attachments.
With a 540 rear PTO and 2200 rpm mid PTO, it can operate mowers, snowblowers, and other equipment efficiently.
PTO Specifications
| Item | Details |
|---|---|
| PTO Power | 13.7 hp |
| PTO Power | 10.2 kW |
| Rear PTO | Independent |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | Independent |
| Mid PTO Type | 2200 rpm |
Mechanical Features
The New Holland TZ18DA is designed for ease of use and reliability. It features four-wheel drive, improving traction on uneven terrain.
Additionally, power steering and wet disc brakes enhance maneuverability and safety during operation.
Mechanical Specifications
| Item | Details |
|---|---|
| Drive | Four-wheel drive |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| Operator Platform | Fixed ROPS |
Hydraulics
The TZ18DA uses a simple and reliable open-center hydraulic system, suitable for light-duty attachments and implements.
Hydraulic Specifications
| Item | Details |
|---|---|
| Hydraulic Type | Open center |
| Pump Flow | 3.75 gpm |
| Pump Flow | 14.2 lpm |
| Total Flow | 5.6 gpm |
| Total Flow | 21.2 lpm |
| Steering Flow | 1.85 gpm |
| Steering Flow | 7.0 lpm |
Hitch and Lifting Capacity
The TZ18DA is equipped with a Category I rear hitch, suitable for small implements.
Its 700 lbs (317 kg) lifting capacity makes it ideal for light agricultural and landscaping tasks.
Hitch Specifications
| Item | Details |
|---|---|
| Hitch Type | Category I |
| Lift Capacity | 700 lbs |
| Lift Capacity | 317 kg |
Dimensions and Weight
With a weight of just 1311 lbs (594 kg), the TZ18DA is compact and easy to transport.
Its small size makes it ideal for working in tight spaces such as gardens, orchards, and residential areas.
Weight
| Item | Details |
|---|---|
| Weight | 1311 lbs |
| Weight | 594 kg |
Electrical System
The tractor uses a 12V electrical system with a 36-amp alternator, ensuring reliable operation.
Electrical Specifications
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 36 amps |
| Battery CCA | 325 |
| Battery Voltage | 12V |
Attachments
The New Holland TZ18DA supports a wide range of attachments, making it extremely versatile for different applications.
Available Attachments
| Item | Details |
|---|---|
| Mid-Mount Mower | 54″ / 60″ |
| Snowblower | Available |
| Blade | Available |
| Front-End Loader | Available |
Why Choose the New Holland TZ18DA?
The New Holland TZ18DA is an ideal tractor for small-scale operations and property maintenance.
Key Benefits:
- Compact and easy to operate
- Fuel-efficient diesel engine
- Smooth hydrostatic transmission
- Versatile mid and rear PTO
- Wide range of attachments
- Excellent for landscaping and residential use
Final Thoughts
The New Holland Boomer TZ18DA is a practical and reliable sub-compact tractor that delivers excellent versatility in a small package. Its ease of use, efficient engine, and compatibility with multiple attachments make it a great choice for beginners and professionals alike.
Even today, it remains a popular option in the used tractor market due to its durability and low operating cost.
