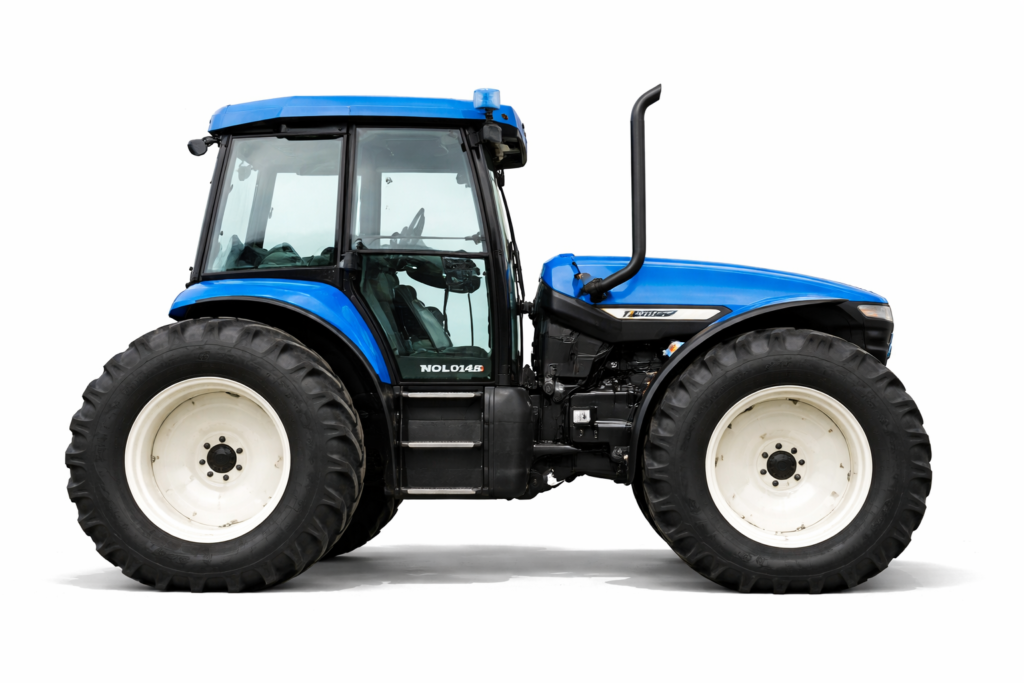

New Holland TV145 Overview
The New Holland TV145 is a powerful bi-directional tractor designed for high-efficiency agricultural and municipal operations. Produced from 2004 to 2008, it is the direct successor to the TV140 and offers improved performance and modern refinements.
This model is equipped with a New Holland 7.5L 6-cylinder diesel engine, delivering 145 horsepower, making it ideal for heavy-duty applications such as mowing, snow removal, roadside maintenance, and large-scale farming.
One of the key features of the TV145 is its reversible operator platform, allowing the driver to rotate the console and operate the tractor in either direction. Combined with a hydrostatic transmission and articulated steering, it provides excellent maneuverability and operational flexibility.
New Holland TV145 Quick Specifications
| Item | Details |
|---|---|
| Model | New Holland TV145 |
| Tractor Type | Bi-directional Tractor |
| Production Years | 2004 – 2008 |
| Manufacturer | New Holland |
| Engine | New Holland 7.5L 6-cylinder diesel |
| Engine Power | 145 hp (108.1 kW) |
| PTO Power (claimed) | 105 hp (78.3 kW) |
| Transmission | Hydrostatic |
| Drive Type | 4WD |
| Fuel Tank Capacity | 55 gal (208.2 L) |
| Weight | 14,715 lbs (6,674 kg) |
| PTO Type | 540 / 1000 |
| Hitch Type | Category II |
| Steering | Hydrostatic power |
| Cab | Standard enclosed cab |
Engine
The New Holland TV145 is powered by a high-performance 7.5-liter 6-cylinder diesel engine, engineered for heavy-duty and continuous operation.
With 145 horsepower, it delivers strong torque and stable performance, making it suitable for demanding environments and long working hours.
Engine Specifications
| Item | Details |
|---|---|
| Engine Manufacturer | New Holland |
| Engine Type | Diesel |
| Cylinders | 6 |
| Displacement | 7.5 L |
| Engine Power | 145 hp |
| Engine Power | 108.1 kW |
Transmission
The TV145 features a hydrostatic transmission, allowing smooth and precise speed control without shifting gears.
This system is especially beneficial for applications requiring constant speed adjustments and directional changes.
Transmission Specifications
| Item | Details |
|---|---|
| Transmission Type | Hydrostatic |
| Drive | Infinite variable speed |
Power and PTO
The TV145 is equipped with both front and rear PTO systems, supporting a wide variety of implements.
Its 540 and 1000 PTO speeds ensure compatibility with different equipment types.
PTO Specifications
| Item | Details |
|---|---|
| PTO Power (claimed) | 105 hp |
| PTO Power (tested) | 111.8 hp |
| Rear PTO Type | 540 / 1000 |
| Front PTO Type | 540 / 1000 |
Mechanical Features
The New Holland TV145 is built for professional use, featuring four-wheel drive and articulated steering for superior maneuverability.
Its hydraulic wet disc brakes and fully enclosed cab provide safety and operator comfort.
Mechanical Specifications
| Item | Details |
|---|---|
| Drive | Four-wheel drive |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Cab | Enclosed (standard) |
| Special Feature | Bi-directional operation |
Hydraulics
The TV145 uses a closed-center load-sensing hydraulic system, ensuring efficient and responsive operation.
This system is ideal for heavy-duty attachments and precision work.
Hydraulic Specifications
| Item | Details |
|---|---|
| Hydraulic Type | Closed center load sensing |
| Capacity | 10.5 gal |
| Capacity | 39.7 L |
| Pump Flow | 30 gpm |
| Pump Flow | 113.6 lpm |
Hitch and Lifting Capacity
The TV145 features both front and rear Category II hitches, providing excellent versatility for various applications.
Its high lifting capacity allows it to handle large and heavy implements with ease.
Hitch Specifications
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Rear Lift Capacity | 8700 lbs |
| Rear Lift Capacity | 3946 kg |
| Front Hitch Type | Category II |
| Front Lift Capacity | 4000 lbs |
| Front Lift Capacity | 1814 kg |
Dimensions and Weight
The TV145 has a robust and stable design, making it ideal for heavy-duty operations.
Dimensions and Weight
| Item | Details |
|---|---|
| Wheelbase | 118 inches |
| Wheelbase | 299 cm |
| Weight | 14715 lbs |
| Weight | 6674 kg |
Capacity
The TV145 is designed for long working hours with large fuel and hydraulic capacities.
Capacity Specifications
| Item | Details |
|---|---|
| Fuel Tank | 55 gal |
| Fuel Tank | 208.2 L |
| Hydraulic System | 10.5 gal |
| Hydraulic System | 39.7 L |
Electrical System
The TV145 features a high-output electrical system to support demanding operations.
Electrical Specifications
| Item | Details |
|---|---|
| Ground | Negative |
| Charging Output | 120 amps |
| Battery CCA | 950 |
Serial Numbers
The following serial number ranges correspond to production years:
| Year | Serial Number |
|---|---|
| 2004 | RVS022001 |
| 2005 | RVS022801 |
| 2006 | RVS023601 |
| 2007 | RVS055001 |
| 2008 | RVS055348 |
Why Choose the New Holland TV145?
The New Holland TV145 is a highly versatile and powerful tractor designed for professional users.
Key Benefits:
- High-output 145 HP diesel engine
- Unique bi-directional operation
- Smooth hydrostatic transmission
- Advanced hydraulic system
- Dual front and rear PTO
- Ideal for municipal and large-scale operations
Final Thoughts
The New Holland TV145 represents the evolution of New Holland’s bi-directional tractor technology. With improved power, lifting capacity, and operator comfort, it is a highly capable machine for specialized and heavy-duty applications.
Even today, the TV145 remains a premium choice in the used tractor market, especially for buyers looking for versatility and efficiency.
