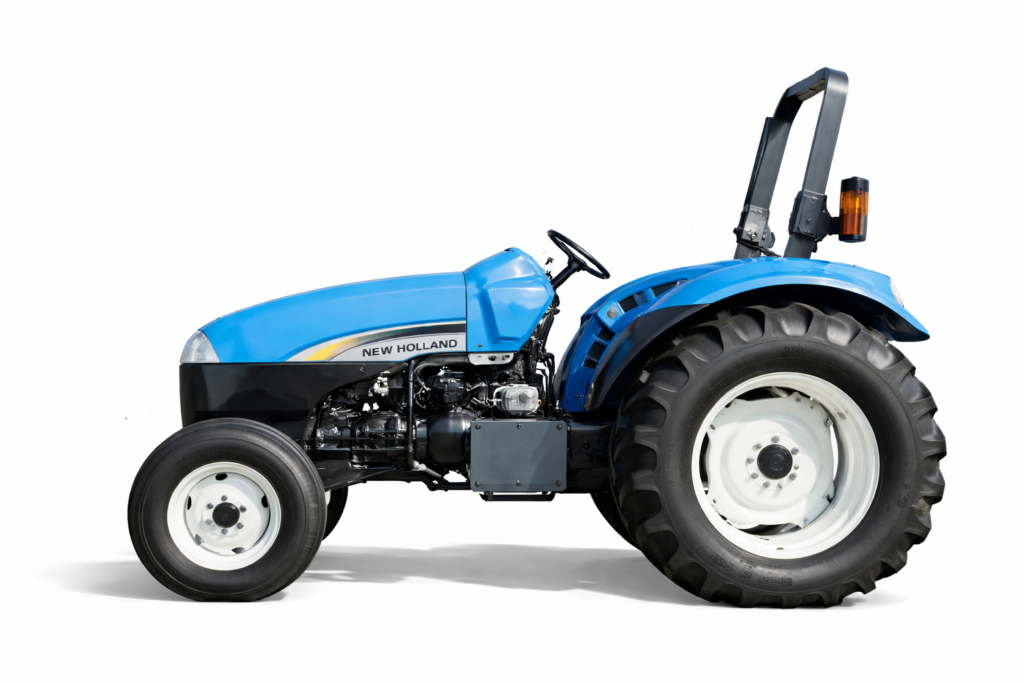

New Holland TT75 Overview
The New Holland TT75 is a powerful and durable utility tractor designed for farmers who need high performance in demanding agricultural environments. Produced from 2002 to 2008, this model is part of the TT Series, alongside the TT55.
Built in India, the TT75 is equipped with a strong Iveco 3.9L 4-cylinder diesel engine, delivering 74.9 horsepower. As a result, it is well suited for heavy-duty tasks such as plowing, cultivation, hauling, and large implement operation.
In addition, the tractor offers both 2WD and 4WD configurations, providing flexibility for different terrain conditions. Because of its solid construction and reliable performance, the TT75 remains highly popular in the global used tractor market.
New Holland TT75 Quick Specifications
| Item | Details |
|---|---|
| Model | New Holland TT75 |
| Series | TT Series |
| Tractor Type | Utility Tractor |
| Production Years | 2002 – 2008 |
| Manufacturer | New Holland |
| Built In | India |
| Engine | Iveco 3.9L 4-cylinder diesel |
| Engine Power | 74.9 hp (55.9 kW) |
| PTO Power | 59 hp (44.0 kW) |
| Transmission | 8-speed |
| Drive Type | 2WD / 4WD |
| Fuel Tank Capacity | 23.5 gal (88.9 L) |
| Weight | 5,470 lbs (2,481 kg) |
| PTO Type | 540 |
| Hitch Type | Category II/I |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| ROPS | Two-post ROPS |
Engine
The New Holland TT75 is powered by a robust Iveco 3.9-liter 4-cylinder diesel engine, designed for high performance and durability.
With 74.9 horsepower, it delivers strong torque and reliable output for heavy-duty farming operations. Therefore, it is ideal for tasks that require sustained power, such as deep tillage and heavy hauling.
Engine Specifications
| Item | Details |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | Diesel |
| Cylinders | 4 |
| Displacement | 3.9 L |
| Engine Power | 74.9 hp |
| Engine Power | 55.9 kW |
| Fuel Tank | 23.5 gal |
| Fuel Tank | 88.9 L |
Transmission
The TT75 features a durable 8-speed transmission, designed to provide reliable operation in agricultural environments.
Its simple structure ensures easy maintenance while offering sufficient gear selection for various farming tasks.
Transmission Specifications
| Item | Details |
|---|---|
| Transmission Type | Gear |
| Speeds | 8 forward gears |
Power and PTO
With a 59 hp PTO output, the TT75 can handle large implements such as balers, rotary cutters, and heavy-duty tillage equipment.
The independent PTO system allows efficient and flexible operation, improving productivity and ease of use.
PTO Specifications
| Item | Details |
|---|---|
| PTO Power | 59 hp |
| PTO Power | 44.0 kW |
| Rear PTO | Independent |
| PTO Type | 540 |
| Engine RPM @ PTO | 1967 rpm |
Mechanical Features
The New Holland TT75 is built for durability and performance. It includes 2WD and 4WD options, allowing adaptability to different working conditions.
The tractor also features power steering and wet disc brakes, ensuring safe and comfortable operation even during long working hours.
Mechanical Specifications
| Item | Details |
|---|---|
| Drive | 2WD / 4WD |
| Final Drives | Spur gear |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| Operator Platform | Two-post ROPS |
Hydraulics
The TT75 uses an open-center hydraulic system, providing stable and reliable performance for various agricultural tasks.
Although simple, it is effective for operating implements and attachments in daily farming work.
Hydraulic Specifications
| Item | Details |
|---|---|
| Hydraulic Type | Open center |
| Pump Flow | 8.6 gpm |
| Pump Flow | 32.6 lpm |
| Total Flow | 15.6 gpm |
| Total Flow | 59.0 lpm |
Hitch and Lifting Capacity
The TT75 is equipped with a Category II/I rear hitch, offering both position and draft control for precise implement handling.
Its 4,751 lbs (2,155 kg) lifting capacity makes it suitable for heavy implements, giving it a clear advantage over smaller models.
Hitch Specifications
| Item | Details |
|---|---|
| Hitch Type | Category II/I |
| Control | Position and draft control |
| Lift Capacity | 4751 lbs |
| Lift Capacity | 2155 kg |
Dimensions and Tires
The TT75 has a larger and heavier frame, making it ideal for heavy-duty work and improved stability.
Dimensions and Tires
| Item | Details |
|---|---|
| Wheelbase (2WD) | 86.2 inches |
| Wheelbase (4WD) | 85 inches |
| Weight | 5470 lbs |
| Weight | 2481 kg |
| Front Tire | 7.50-16 |
| Rear Tire | 16.9-30 |
Electrical System
The TT75 is equipped with a 12V electrical system and a 23-amp alternator, ensuring reliable operation in daily use.
Electrical Specifications
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 23 amps |
| Battery Voltage | 12V |
| Battery Capacity | 100 AH |
Attachments
The New Holland TT75 supports a front-end loader, making it a highly versatile tractor for various agricultural and material handling tasks.
Available Attachments
| Item | Details |
|---|---|
| Attachment | Front-end loader |
Why Choose the New Holland TT75?
The New Holland TT75 is a high-performance utility tractor designed for demanding agricultural work.
Key Benefits:
- Powerful 74.9 HP diesel engine
- Strong PTO output for large implements
- Heavy-duty lifting capacity
- Flexible 2WD / 4WD options
- Durable and simple design
- Suitable for large-scale farming operations
Final Thoughts
The New Holland TT75 is an excellent choice for farmers who need a powerful and reliable tractor for heavy-duty agricultural tasks. Its strong engine, high lifting capacity, and durable design make it a dependable machine for long-term use.
Even today, the TT75 continues to be a valuable option in the used tractor market due to its proven performance and ease of maintenance.
