Overview

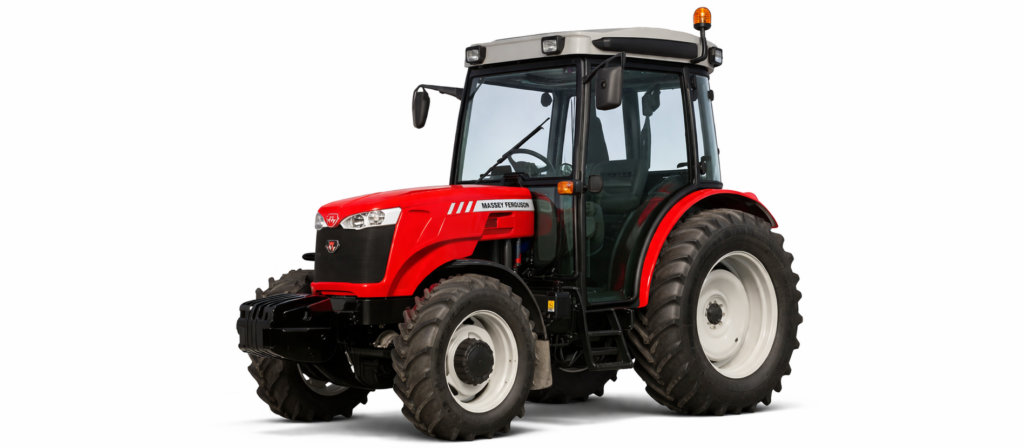

The Massey Ferguson 3655 F is a high-performance narrow tractor built for vineyards, orchards, and precision agriculture. Manufactured by Agritalia in Italy, this model is part of the specialized MF narrow tractor lineup designed for working in tight spaces.
Produced from 2008 onward, the MF 3655 F features a 100 horsepower AGCO SisuDiesel engine, offering excellent power-to-size balance. Its narrow design and advanced transmission options make it ideal for professional farming operations requiring maneuverability without sacrificing performance.
Key Specifications
| Item | Details |
|---|---|
| Model | Massey Ferguson 3655 F |
| Type | Narrow Utility / Orchard Tractor |
| Production | 2008 – (approx.) |
| Manufacturer | Agritalia (Italy) |
| Distributor | Massey Ferguson |
| Drive Type | 2WD / 4WD (MFWD optional) |
Variants
| Model | Description |
|---|---|
| 3655 F | Narrow (flex) version |
| 3655 S | Extra narrow version |
| 3655 GE | Low-profile (ground effect) |
These variants allow adaptation to vineyards, orchards, and low-clearance environments.
Engine
| Item | Details |
|---|---|
| Engine Brand | AGCO SisuDiesel |
| Engine Type | Diesel |
| Displacement | 3.3 L |
| Power Output | 100 hp (74.6 kW) |
| Fuel Tank | 70.0 L |
The AGCO SisuDiesel engine delivers strong torque, fuel efficiency, and reliable performance for intensive agricultural work.
Transmission
| Type | Details |
|---|---|
| Synchronized Shuttle | 12-speed |
| Synchronized Shuttle | 24-speed |
| Power Shuttle | 24-speed |
| Advanced | 24-speed with partial power shift |
These transmission options provide smooth operation and flexibility in varying field conditions.
Hydraulics
| Item | Details |
|---|---|
| Pressure | 190 bar (2756 psi) |
| Pump Flow | 48.1 L/min (optional 62.1 L/min) |
| Rear Valves | 2 to 3 |
| Mid Valves | Optional (2) |
| Front Valves | Optional (2 or 4) |
The hydraulic system supports a wide range of implements, especially for orchard and vineyard applications.
Hitch & PTO
| Item | Details |
|---|---|
| Hitch Type | Category II/I |
| Rear Lift Capacity | 2,500 kg |
| PTO Type | Independent |
| PTO Options | 540 / 540E / 1000 / Ground |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 215 cm |
| Front Tires | 6.50-16 |
| Rear Tires | 12.4R28 |
Its compact width and low profile make it ideal for narrow-row crop operations.
Mechanical Features
| Item | Details |
|---|---|
| Drive | 2WD / 4WD (optional) |
| Steering | Hydrostatic power steering |
| Brakes | Hydraulic wet disc |
Applications
The Massey Ferguson 3655 F is ideal for:
- Vineyard operations
- Orchard farming
- Spraying and precision agriculture
- Narrow-row cultivation
Why Choose Massey Ferguson 3655 F?
- Powerful 100HP engine in compact design
- Narrow width for tight working environments
- Multiple transmission configurations
- Strong hydraulic capability for implements
- Reliable Italian-built quality
Conclusion
The Massey Ferguson 3655 F is a powerful and versatile narrow tractor built for precision farming. Its combination of performance, compactness, and flexibility makes it an excellent choice for vineyard and orchard operators worldwide.
