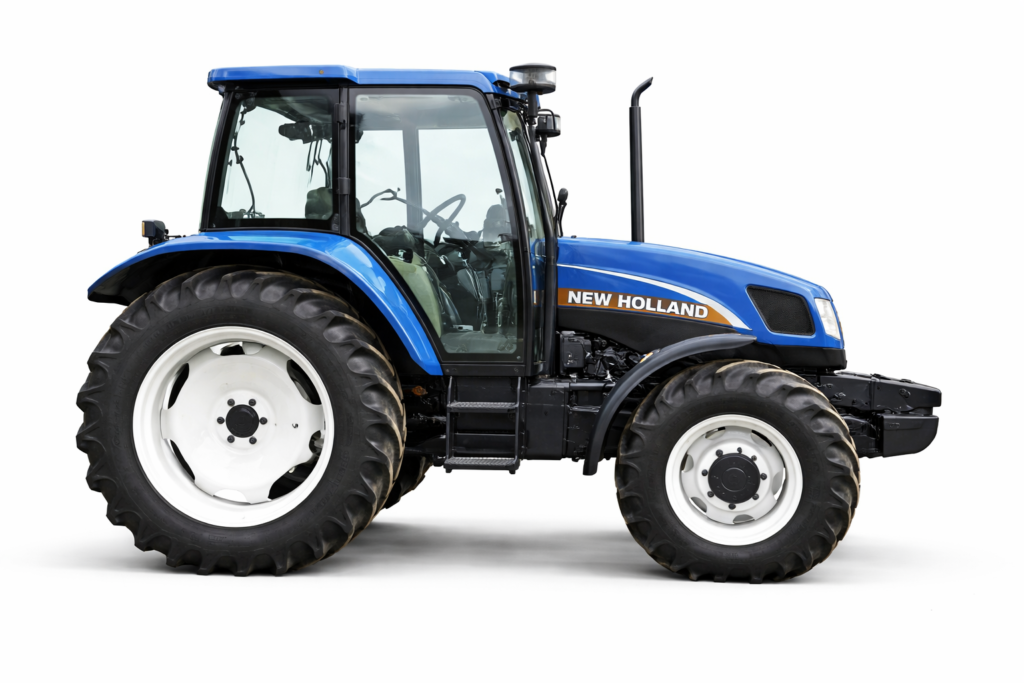

The New Holland TS115A is a powerful and versatile 115HP utility tractor, produced between 2003 and 2006 as part of the TS-A Series. Positioned above the TS100A, this model features a larger engine, increased PTO output, and improved capabilities for heavy-duty agricultural operations.
Built in Basildon, England, the TS115A is widely used for plowing, hauling, loader work, and PTO-driven applications, offering excellent reliability in global farming environments.
Key Specifications
| Item | Details |
|---|---|
| Model | New Holland TS115A |
| Production Years | 2003 – 2006 |
| Series | TS-A Series |
| Type | Utility Tractor |
| Manufacturer | New Holland |
| Engine Power | 115 HP (85.8 kW) |
| PTO Power | 95 HP (70.8 kW) |
| Drive Type | 2WD / 4WD |
Engine
| Item | Specification |
|---|---|
| Engine Type | New Holland Diesel |
| Cylinders | 6-cylinder |
| Displacement | 6.7 L |
| Fuel Tank Capacity | 52.5 gal (198.7 L) |
| Cooling System | Liquid-cooled |
The 6.7L 6-cylinder diesel engine delivers strong torque and smooth operation, making it ideal for continuous heavy-duty work.
Transmission
| Type | Details |
|---|---|
| Gear Options | 12-speed / 24-speed |
| Power Shift | 16-speed power shift |
The TS115A offers flexible transmission configurations to suit a wide range of farming tasks.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center (Closed load sensing optional) |
| Pressure | 2500 psi (172.4 bar) |
| Optional Pressure | 2700 psi (186.2 bar) |
| Pump Flow | 9.3 – 20 gpm (35.2 – 75.7 lpm) |
| Steering Flow | 9.1 gpm (34.4 lpm) |
| Remote Valves | 2 to 4 |
3-Point Hitch
| Item | Specification |
|---|---|
| Hitch Type | Category II / IIIN |
| Control | Mechanical (Electronic draft control optional) |
| Lift Capacity (standard) | 4,200 lbs (1,905 kg) |
| Max Lift Capacity | 8,598 lbs (3,900 kg) |
PTO (Power Take-Off)
| Item | Specification |
|---|---|
| Type | Independent |
| Clutch | Electro-hydraulic wet disc |
| PTO Speeds | 540 / 1000 rpm |
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 104.4 in (265 cm) |
| Wheelbase (4WD) | 104.7 in (265 cm) |
| Weight | 10,449 lbs (4,739 kg) |
Mechanical Features
-
Two- or four-wheel drive
-
Power steering
-
Hydraulic wet disc brakes
-
Foldable ROPS
-
Optional cab with air conditioning
-
Strong and stable frame for heavy workloads
Attachments
| Type | Details |
|---|---|
| Front-End Loader | Compatible (e.g., Quicke loader) |
The TS115A is well-suited for loader applications, increasing its versatility beyond standard fieldwork.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 100A |
| Battery | 12V |
| Battery CCA | 800 |
Why Choose the New Holland TS115A?
The New Holland TS115A offers:
-
Powerful 6-cylinder 115HP engine
-
High PTO output for demanding implements
-
Strong lifting capacity and hydraulic performance
-
Flexible transmission options
-
Proven reliability in global agricultural markets
Conclusion
The New Holland TS115A is a high-performance tractor built for farmers who require strength, durability, and versatility. Its combination of power and advanced features makes it an excellent choice for both medium and large-scale agricultural operations.
EVERY FARM TRACTOR supplies high-quality used tractors like the TS115A to customers in over 100 countries, delivering trusted equipment and reliable export services worldwide.
