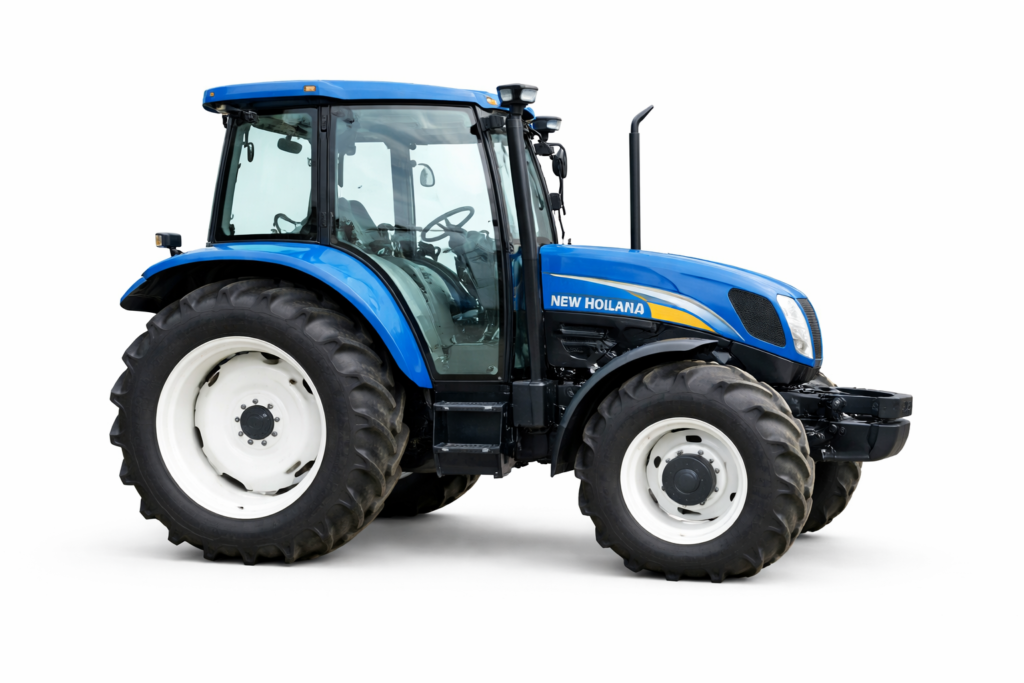

The New Holland TS100A is a durable and high-performance 100HP utility tractor, produced from 2003 to 2006 in Basildon, England. As part of the TS-A Series, it represents an upgraded version of the TS series, offering improved hydraulics, stronger lifting capacity, and more advanced transmission options.
Built for versatility, the TS100A is ideal for plowing, hauling, loader work, and PTO-driven applications, making it a popular choice across Africa, the Caribbean, and other global agricultural markets.
Key Specifications
| Item | Details |
|---|---|
| Model | New Holland TS100A |
| Production Years | 2003 – 2006 |
| Series | TS-A Series |
| Manufacturer | New Holland |
| Built In | Basildon, England |
| Engine Power (Gross) | 100 HP (74.6 kW) |
| PTO Power (Claimed) | 80 HP (59.7 kW) |
| Drive Type | 2WD / 4WD |
Engine
| Item | Specification |
|---|---|
| Engine Type | New Holland Diesel |
| Cylinders | 4-cylinder |
| Displacement | 4.5 L |
| Fuel Tank Capacity | 46.7 gal (176.8 L) |
| Cooling System | Liquid-cooled |
The 4.5L diesel engine delivers excellent fuel efficiency and reliable torque, ensuring consistent performance for long working hours.
Performance (Test Data)
| Item | Output |
|---|---|
| Drawbar Power (tested) | 74.7 HP (55.7 kW) |
| PTO Power (tested) | 87.7 HP (65.4 kW) |
Transmission
| Type | Details |
|---|---|
| Partially Synchronized | 12-speed |
| Power Shift | 24-speed (two-speed power shift) |
| Full Power Shift | 16-speed |
| Shuttle | Mechanical |
The TS100A provides multiple transmission configurations for smooth operation and efficiency in different field conditions.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center (Closed-center load sensing optional) |
| Pump Flow | 19.8 gpm (74.9 lpm) |
| Optional Flow | 26.5 gpm (100.3 lpm) |
| Steering Flow | 10.5 gpm (39.7 lpm) |
| Rear Valves | 2 to 4 |
Enhanced hydraulic flow makes the TS100A particularly effective for loader work and heavy implements.
3-Point Hitch
| Item | Specification |
|---|---|
| Hitch Type | Category II |
| Control | Mechanical lower link |
| Lift Capacity | 9,285 lbs (4,211 kg) |
The high lifting capacity is one of the TS100A’s key advantages over earlier TS models.
PTO (Power Take-Off)
| Item | Specification |
|---|---|
| Type | Independent |
| PTO Clutch | Electro-hydraulic wet disc |
| PTO Speeds | 540 / 1000 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 93.3 in (236 cm) |
| Wheelbase (4WD) | 94.9 in (241 cm) |
| Weight | 9,060 – 10,383 lbs |
Mechanical Features
-
Electro-hydraulic differential lock
-
Power steering
-
Hydraulic wet disc brakes
-
Foldable ROPS
-
Optional cab with air conditioning
-
Strong chassis for heavy-duty work
Attachments
| Type | Details |
|---|---|
| Front-End Loader | Compatible |
The TS100A is highly suitable for loader operations, making it a versatile machine for both farming and construction tasks.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 70A (ROPS) / 120A (Cab) |
| Battery | 12V |
| Battery Capacity | 1300 CCA |
Why Choose the New Holland TS100A?
The New Holland TS100A offers:
-
Reliable 100HP engine performance
-
Improved hydraulics compared to TS100
-
High lift capacity for heavy implements
-
Multiple transmission options
-
Excellent durability for global farming conditions
It is especially valued in markets where strong performance, easy maintenance, and long-term reliability are essential.
Conclusion
The New Holland TS100A is a well-balanced utility tractor that combines power, efficiency, and versatility. Whether used for agriculture, transport, or loader work, it remains a dependable choice for farmers worldwide.
