Overview
The Kubota L4600 is a reliable compact utility tractor produced between 2011 and 2014 as part of Kubota’s Standard L Series. It is designed to deliver strong performance, ease of maintenance, and dependable operation for agricultural and industrial use.
With 46.3 horsepower, the L4600 offers improved performance over earlier models like the L4400, making it ideal for heavy-duty fieldwork, loader operations, and general farm tasks.
| Item | Details |
|---|---|
| Model | Kubota L4600 |
| Production Years | 2011 – 2014 |
| Series | Standard L Series |
| Type | Compact Utility Tractor |
| Manufacturer | Kubota |
| Drive Options | 2WD / 4WD |
| ROPS | Foldable two-post |
Engine
The Kubota L4600 features a durable and efficient diesel engine built for long working hours and consistent output.
| Item | Details |
|---|---|
| Engine Type | Kubota Diesel |
| Cylinders | 4 |
| Displacement | 2.2L |
| Cooling | Liquid-cooled |
| Fuel Capacity | 12.7 gal (48.1 L) |
Power Output
| Item | Output |
|---|---|
| Engine Gross Power | 46.3 hp (34.5 kW) |
| Engine Net Power | 43.8 hp (32.7 kW) |
| PTO Power (Gear) | 38.3 hp (28.6 kW) |
| PTO Power (Hydro) | 36.8 hp (27.4 kW) |
Transmission
The L4600 uses a synchronized shuttle transmission for smooth gear shifting and efficient directional changes.
| Transmission Type | Details |
|---|---|
| Gear Transmission | 8-speed synchronized shuttle |
| Hydrostatic | Available (HST model) |
Variants
| Model | Specification |
|---|---|
| L4600F | 2WD Gear |
| L4600DT | 4WD Gear |
| L4600HST | 4WD Hydro |
Hydraulics
The hydraulic system provides stable performance for attachments and loader work.
| Item | Details |
|---|---|
| Type | Open center gear pump |
| Pump Flow | 8.4 gpm (31.8 lpm) |
| Total Flow | 13.5 gpm (51.1 lpm) |
| Steering Flow | 5.1 gpm (19.3 lpm) |
| Valves | 0 to 3 |
3-Point Hitch
| Item | Details |
|---|---|
| Hitch Type | Category I |
| Control | Position control |
| Lift Capacity (ends) | 2,870 lbs (1301 kg) |
| Lift @24″ | 2,320 lbs (1052 kg) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| PTO Type | Independent |
| PTO Clutch | Hydraulic wet disc |
| Rear PTO Speed | 540 rpm |
| Engine RPM @540 | 2475 rpm |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase (2WD) | 72.8 in (184 cm) |
| Wheelbase (4WD) | 72.6 in (184 cm) |
| Weight | 3109 – 3197 lbs |
| Front Tire | 7.5L-15 |
| Rear Tire (2WD) | 14.9-24 |
Mechanical Features
-
2WD or 4WD options
-
Rear differential lock (standard)
-
Hydrostatic power steering
-
Mechanical wet disc brakes
-
Foldable ROPS
Attachments
The Kubota L4600 supports multiple attachments, increasing its versatility:
-
Front-end loader
-
Backhoe
-
Agricultural implements
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 40 amps |
| Battery | 12V / 582 CCA |

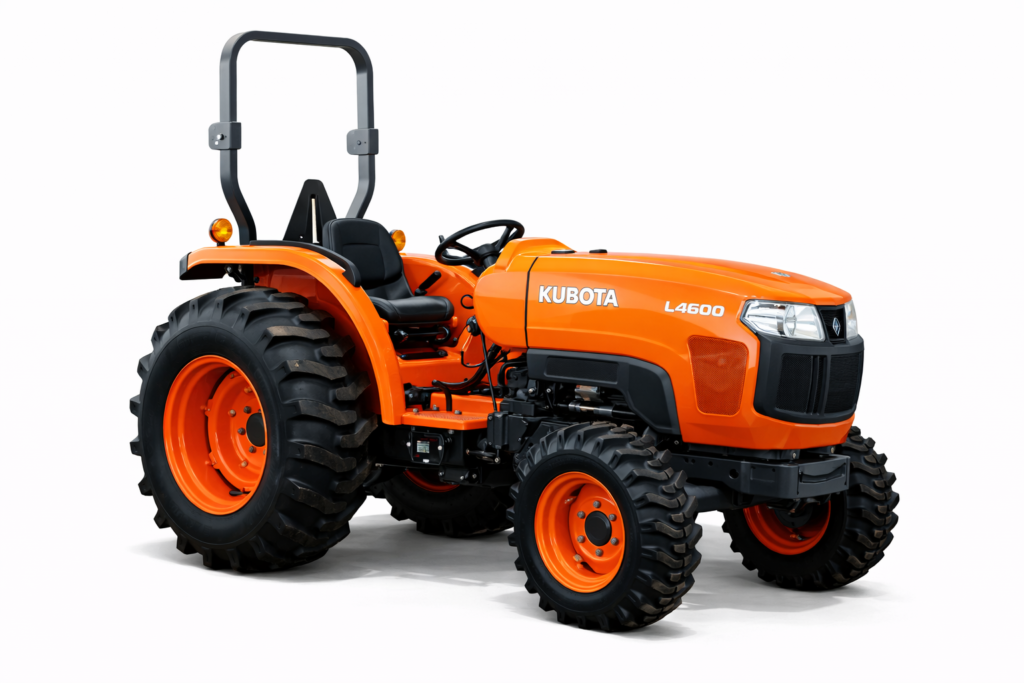

Photos
Conclusion
The Kubota L4600 is a powerful and dependable compact tractor that builds on the success of the L4400 with improved performance and modern features. Its strong engine, efficient hydraulics, and versatile transmission options make it an excellent choice for farmers and contractors worldwide.
If you are looking for a simple, durable, and high-performance tractor, the L4600 is a proven solution for a wide range of applications.
