Overview

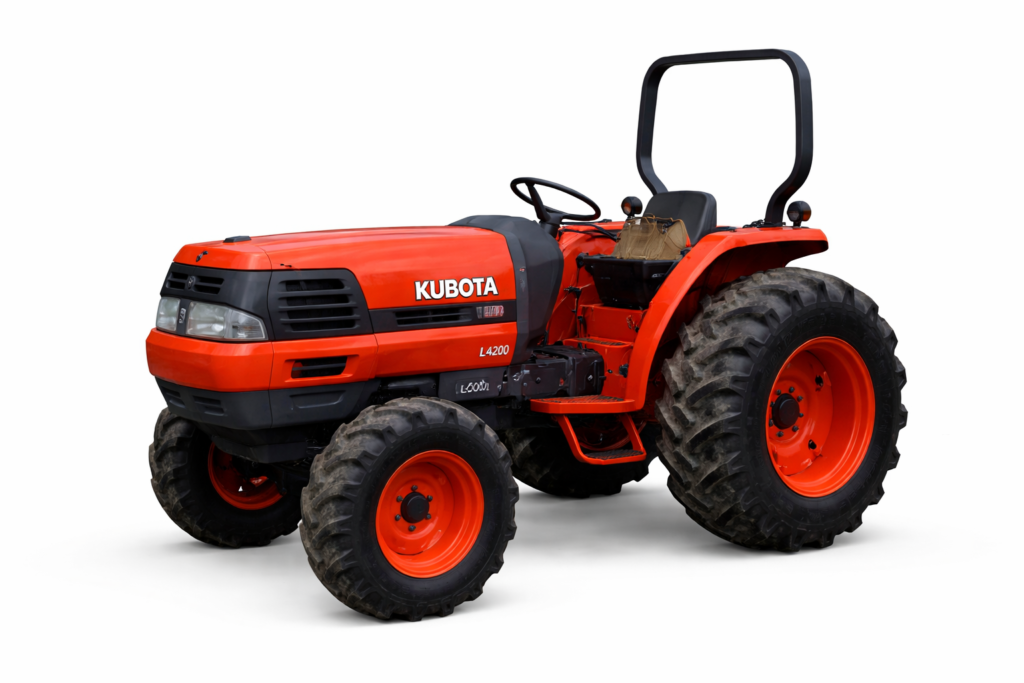

The Kubota L4200 is a dependable Grand L Series compact utility tractor, produced between 1994 and 1999. Known for its balance of power, efficiency, and operator comfort, the L4200 is widely used for farming, landscaping, and light construction work.
With up to 45.3 horsepower, multiple transmission options, and compatibility with a wide range of attachments, this model remains highly popular in export markets.
| Item | Details |
|---|---|
| Model | Kubota L4200 |
| Production Years | 1994 – 1999 |
| Series | Grand L Series |
| Type | Compact Utility Tractor |
| Manufacturer | Kubota |
| Drive | 2WD / 4WD (MFWD optional) |
Engine
The Kubota L4200 is powered by a reliable Kubota 2.2L 4-cylinder diesel engine, designed for efficiency and long-term durability.
| Item | Details |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | Diesel, 4-cylinder |
| Displacement | 2.2 L |
| Gross Power | 45.3 hp (33.8 kW) |
| Net Power | 42 hp (31.3 kW) |
| PTO Power | 37 hp (27.6 kW) |
| Fuel Capacity | 34.8 L (9.2 gal) |
Key Features:
-
Fuel-efficient diesel engine
-
Strong torque output for fieldwork
-
Reliable performance in various climates
Transmission
The L4200 offers flexible transmission options, allowing operators to choose based on their working style and environment.
| Item | Details |
|---|---|
| Transmission Type | Synchronized shuttle / Power shuttle |
| Gears | 8-speed |
| Drive Options | 2WD / 4WD |
| Steering | Power steering |
| Brakes | Wet disc brakes |
Highlights:
-
Smooth forward/reverse shuttle shifting
-
Easy operation for loader work
-
Durable and low maintenance
Performance
| Item | Details |
|---|---|
| Engine Power (gross) | 45.3 hp |
| Engine Power (net) | 42 hp |
| PTO Power | 37 hp |
| Plow Capacity | 2 × 14-inch |
Advantages:
-
Ideal for medium-duty agricultural work
-
Stable PTO performance for implements
-
Balanced power-to-weight ratio
Hydraulics
The hydraulic system supports efficient operation of loaders and implements.
| Item | Details |
|---|---|
| Type | Open center |
| Hydraulic Capacity | 39.0 L |
| Pressure | 2490 psi (171.7 bar) |
| Pump Flow | 29.5 L/min |
Hitch & PTO
| Item | Details |
|---|---|
| Hitch Type | Category I |
| Control | Position control |
| Rear Lift (ends) | 1,301 kg |
| Rear Lift (24″) | 1,047 kg |
| PTO Type | Independent |
| PTO Speed | 540 rpm |
| Engine RPM (PTO) | 2447 rpm |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase (2WD) | 181 cm |
| Wheelbase (4WD) | 180 cm |
| Weight | 1,304 – 1,588 kg |
| Front Tire | 6.00-16 |
| Rear Tire | 14.9-24 |
Mechanical Features
-
2WD or optional 4WD (MFWD)
-
Power steering for smooth control
-
Wet disc brakes for durability
-
Two-post ROPS
-
Optional cab with heater and air conditioning
Attachments
The Kubota L4200 is highly versatile and supports various attachments for different applications.
| Attachment | Description |
|---|---|
| Front-End Loader (LA680) | Ideal for lifting and loading |
| Backhoe | Suitable for digging work |
| Blade | Land leveling and grading |
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Battery | 12V |
| Battery CCA | 447 |
Photos
Conclusion
The Kubota L4200 is a well-rounded compact tractor offering power, durability, and versatility. Its efficient diesel engine, flexible transmission options, and compatibility with multiple attachments make it an excellent choice for farmers and contractors worldwide.
At EVERY FARM TRACTOR, we provide high-quality Japanese used tractors like the Kubota L4200 to customers across more than 100 countries. This model is especially valued for its reliability, ease of maintenance, and long service life.
If you are looking for a dependable 45HP class tractor, the Kubota L4200 is a proven and practical solution for your agricultural needs.
