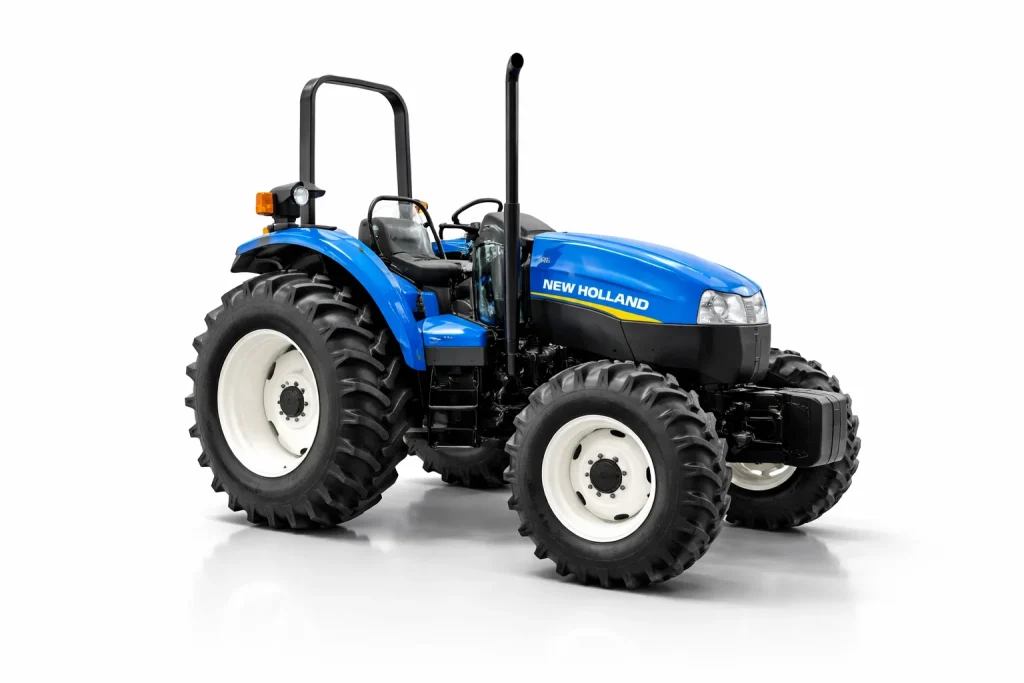

Overview of the New Holland TS6.140
The New Holland TS6.140 is designed for heavy-duty farming and demanding field operations.
It offers strong horsepower, advanced hydraulics, and flexible transmission options.
-
Production year: 2012 –
-
Series: TS6 Series
-
Tractor type: Row-Crop Tractor
-
Manufacturer: New Holland
Therefore, this model is ideal for large-scale farms and professional agricultural use.
Series Map
| Model | Engine Power |
|---|---|
| TS6.125 | 124 hp |
| TS6.140 | 139 hp |
Engine Specifications
The TS6.140 is equipped with a large displacement engine for maximum performance.
| Item | Specification |
|---|---|
| Engine manufacturer | FPT |
| Engine type | Diesel |
| Cylinders | 6-cylinder |
| Displacement | 6.7 L |
| Engine power | 139 hp / 103.7 kW |
| PTO power (claimed) | 115 hp / 85.8 kW |
| Fuel tank capacity | 62 gal / 234.7 L |
Thanks to its 6.7-liter engine, the tractor delivers powerful torque and stable operation in heavy workloads.
Transmission Options
| Transmission Type | Details |
|---|---|
| 8-speed mechanical shuttle | Durable and simple |
| 8-speed power shuttle | Smooth directional changes |
| 16-speed | Wide operating range |
Therefore, operators can easily adjust speed for different farming tasks.
Mechanical Features
| Item | Details |
|---|---|
| Drive system | 2WD or 4WD |
| Steering | Power steering |
| Brakes | Wet disc |
| Safety | Foldable ROPS |
| Cab option | Optional cab with air-conditioning |
Moreover, 4WD improves traction in wet, soft, or uneven soil conditions.
Hydraulics System
| Item | Specification |
|---|---|
| Rear valves | 2 to 4 |
| Pump flow | 13 gpm / 49.2 L/min |
| Optional flow | 22 gpm / 83.3 L/min |
| Steering flow | 9 gpm / 34.1 L/min |
Because of this hydraulic strength, the TS6.140 supports heavy implements and loader work.
Hitch and Lift Capacity
| Item | Specification |
|---|---|
| Rear hitch type | Category II |
| Control | Top link draft sensing |
| Lift capacity | 3,600 lbs (standard) |
| Optional lift | 5,400 / 7,200 lbs |
Thus, the tractor handles demanding agricultural equipment with ease.
PTO Specifications
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| PTO clutch | Wet disc |
| PTO type | 540 / 1000 |
As a result, the TS6.140 works with a wide range of modern farming implements.
Dimensions and Weight
| Item | Measurement |
|---|---|
| Weight | 7,524 – 8,847 lbs |
Because of its solid construction, the tractor maintains stability during heavy-duty operations.
Attachments
| Attachment | Details |
|---|---|
| Front-end loader | Available |
This adds versatility for both field work and material handling.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 120 amps |
| Battery voltage | 12 V |
| Battery CCA | 950 |
Why Choose a Used New Holland TS6.140?
-
Powerful 139HP 6-cylinder engine
-
Excellent torque for heavy-duty work
-
Flexible transmission options
-
Strong hydraulic system
-
Reliable performance in tough conditions
For these reasons, many farmers worldwide search for a dependable Used New Holland Tractor like the TS6.140.
