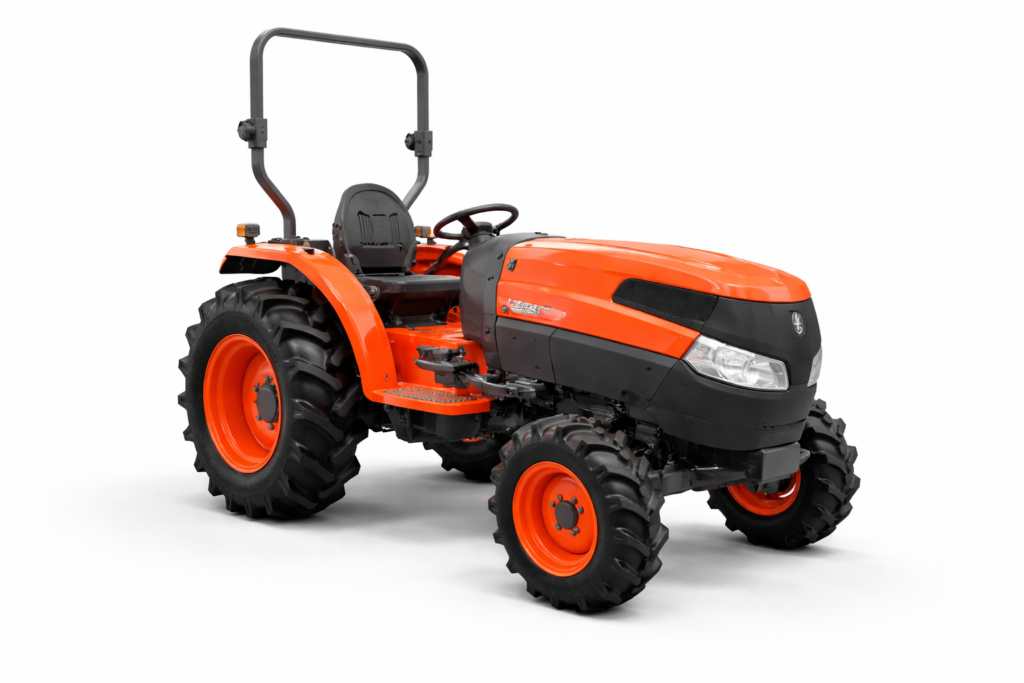

Kubota L3940 – Overview
The Kubota L3940 is a high-performance compact utility tractor produced from 2007 to 2013 as part of the L40 Series. It offers a strong combination of power, durability, and advanced transmission options, making it suitable for demanding agricultural and commercial applications.
With a 40.5 horsepower 4-cylinder diesel engine, advanced hydraulics, and multiple transmission choices, the L3940 is widely trusted across global markets.
Series Lineup
| Model | Engine Power |
|---|---|
| L3540 | 37.0 HP |
| L3940 | 40.5 HP |
| L4240 | 44.0 HP |
| Successor | L4060 (2013–2023) |
Engine Specifications
| Item | Details |
|---|---|
| Engine Model | Kubota V2003 |
| Type | 4-cylinder diesel |
| Displacement | 2.0 L |
| Gross Power | 40.5 hp (30.2 kW) |
| Net Power | 38.5 hp (28.7 kW) |
| Fuel Capacity | 13.2 gal (50.0 L) |
Key Features:
-
Smooth and powerful 4-cylinder engine
-
Reliable performance for heavy-duty tasks
-
Excellent fuel efficiency and durability
Transmission Options
| Variant | Transmission |
|---|---|
| L3940DT | 8-speed gear |
| L3940GST | 12-speed Glide Shift |
| L3940HST | Hydrostatic |
| L3940HSTC | Hydrostatic with cab |
Highlights:
-
Multiple options for different applications
-
Smooth hydrostatic control for loader work
-
Efficient gear transmission for field operations
PTO (Power Take-Off)
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| PTO Type | 540 rpm |
| Engine RPM | 540 @ 2550 |
| Gear PTO Power | 33 hp |
| Hydro PTO Power | 31.5 hp |
| Mid PTO | Semi-independent (optional) |
Note:
The mid PTO is linked with the rear PTO, meaning both operate together when engaged.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Hydraulic Capacity | 11.4 gal (43.1 L) |
| Pump Flow | 9.8 gpm (37.1 lpm) |
| Total Flow | 14.7 gpm (55.6 lpm) |
| Steering Flow | 4.9 gpm (18.5 lpm) |
| Valves | 2 to 3 |
Hitch & Lift Capacity
| Item | Specification |
|---|---|
| Hitch Type | Category I |
| Lift Capacity (Ends) | 3,860 lbs (1750 kg) |
| Lift @ 24″ | 2,760 lbs (1251 kg) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 74.6 inches (189 cm) |
| Weight | 3483 – 3968 lbs |
| Drive Type | 4WD |
| Front Tire | 8.3-16 |
| Rear Tire | 14.9-24 |
Mechanical Features
-
Four-wheel drive (4WD)
-
Differential lock (standard)
-
Hydrostatic power steering
-
Wet disc brakes
-
ROPS or optional Grand Cab (HSTC model)
Attachments
The Kubota L3940 supports a wide range of implements:
| Attachment | Description |
|---|---|
| Front-End Loader | Heavy lifting and material handling |
| Backhoe | Excavation and digging |
| Mid-Mount Mower (72″) | Lawn and field mowing |
| Snowblower | Snow removal |
| Blade | Land leveling and grading |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging Capacity | 40 amps (55 amps cab model) |
| Battery | 12V / 582 CCA |
Pricing (Reference)
| Item | Details |
|---|---|
| Original Price (2011) | $22,159 |
Why Choose Kubota L3940?
The Kubota L3940 is a versatile and powerful tractor that delivers:
-
Strong 4-cylinder engine performance
-
Advanced transmission options (GST & HST)
-
High hydraulic capacity for demanding tasks
-
Proven reliability in global export markets
Conclusion
The Kubota L3940 is an excellent choice for farmers and professionals who need a powerful, versatile, and reliable compact tractor. Its strong engine, advanced features, and wide attachment compatibility make it ideal for a variety of agricultural and industrial applications.
