Kubota L3602 Tractor Specifications and Overview
The Kubota L3602 is a durable compact utility tractor from Kubota’s L02 Series, manufactured between 1978 and 1985 in Japan. This tractor was designed for small to medium-sized agricultural operations, offering reliable performance, simple mechanics, and long service life.
Powered by a Kubota 1.9-liter four-cylinder diesel engine, the L3602 produces approximately 35.5 horsepower, providing strong torque and dependable performance for various farming tasks such as plowing, mowing, and transport work.
The tractor was available in both two-wheel drive (2WD) and four-wheel drive (4WD) configurations. Its 16-speed transmission offers flexible speed control, allowing operators to adapt easily to different field conditions.
Even decades after its production ended, the Kubota L3602 remains a popular tractor in many countries due to its simple design, reliable Kubota diesel engine, and compatibility with various implements.
EVERY FARM TRACTOR exports quality Japanese tractors like the Kubota L3602 to customers in over 100 countries worldwide, helping farmers access dependable machinery built in Japan.
Overview
| Item | Details |
|---|---|
| Model | Kubota L3602 |
| Production Years | 1978 – 1985 |
| Series | L02 Series |
| Tractor Type | Compact Utility Tractor |
| Manufacturer | Kubota |
| Country of Manufacture | Japan |
Series Map
| Model | Power | Output |
|---|---|---|
| Kubota L3202 | 23.6 kW | ~31.6 hp |
| Kubota L3602 | 26.5 kW | 35.5 hp |
| Kubota L4202 | 30.9 kW | ~41.4 hp |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | Diesel |
| Cylinders | 4 |
| Displacement | 1.9 L |
| Engine Power | 35.5 hp (26.5 kW) |
Kubota diesel engines from this era are well known for durability, simple maintenance, and fuel efficiency, making them highly valued in many agricultural markets.
Transmission
| Specification | Details |
|---|---|
| Transmission Type | Gear |
| Number of Gears | 16-speed |
The 16-speed gearbox allows operators to select the optimal speed for different agricultural tasks.
Variants
| Model | Drive Type |
|---|---|
| Kubota L3602 | 2WD |
| Kubota L3602DT | 4WD |
The 4WD variant (L3602DT) provides better traction and improved performance in soft soil or uneven terrain.
Mechanical Features
| Feature | Details |
|---|---|
| Drive Options | Two-wheel drive or four-wheel drive |
| Operator Station | Open operator platform |
The open operator station design was common for tractors of this period and provides easy access and simple controls.
Tractor Hitch
| Specification | Value |
|---|---|
| Rear Hitch Type | JIS Category 1 |
The three-point hitch allows the tractor to operate various agricultural implements.
Power Take-Off (PTO)
| Specification | Value |
|---|---|
| Rear PTO Speed | 540 rpm |
| PTO Shaft Size | 1.375 inch |
The PTO system enables the tractor to power implements such as rotary tillers, mowers, and other equipment.
Dimensions & Tires
Detailed dimension specifications may vary depending on configuration, but typical features include:
| Specification | Details |
|---|---|
| Tractor Type | Compact Utility |
| Tire Options | Agricultural tires for field work |
The compact design allows the tractor to operate efficiently in small farms, orchards, and tight agricultural spaces.
Electrical
| Specification | Value |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
Photos

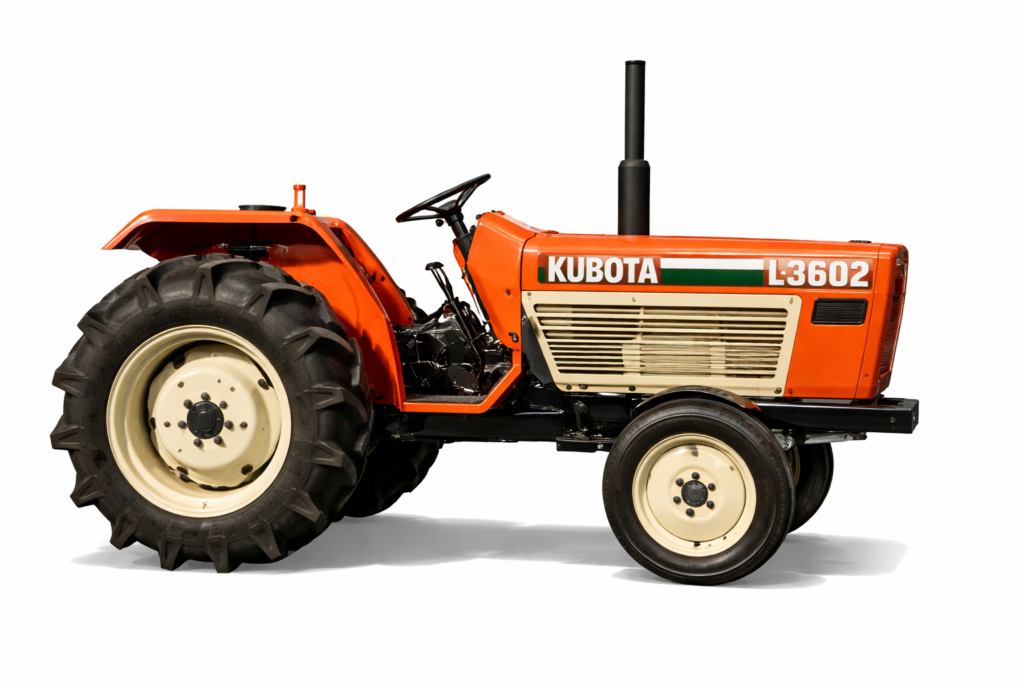

No official photo references are widely available for the Kubota L3602 model. However, the tractor typically features:
-
Kubota’s classic orange body color
-
Large rear agricultural tires
-
Open operator station
-
Simple mechanical controls
Why the Kubota L3602 Is Still Used Today
The Kubota L3602 remains a trusted machine in many regions because of:
-
Durable Kubota 4-cylinder diesel engine
-
Reliable 35.5 horsepower output
-
Simple and easy-to-maintain mechanical design
-
Strong compatibility with farming implements
-
Proven Japanese manufacturing quality
These characteristics make the L3602 a dependable tractor for small farms, rural operations, and agricultural businesses worldwide.
