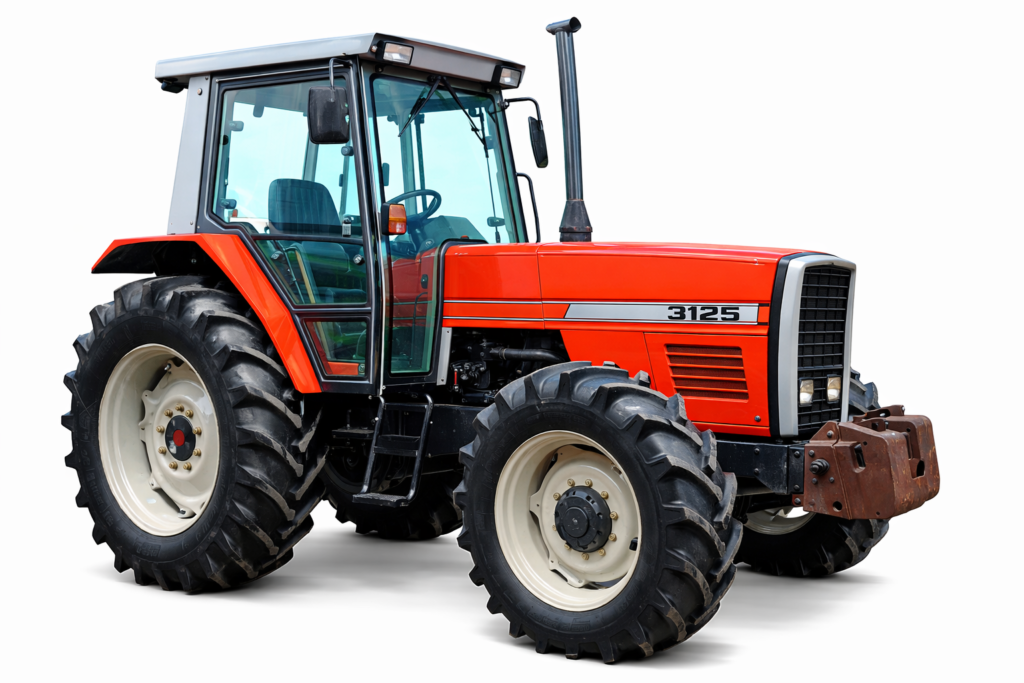

Massey Ferguson 3125 Tractor
The Massey Ferguson 3125 is a high-performance row-crop tractor from the well-known Massey Ferguson 3100 Series, produced between 1990 and 1995. Manufactured at Massey Ferguson’s factory in Beauvais, France, the 3125 was designed to provide strong horsepower, modern transmission options, and excellent hydraulic capability for demanding agricultural work.
Equipped with a Perkins 6.0-liter six-cylinder diesel engine, the tractor produces approximately 123 horsepower, making it suitable for heavy field operations such as plowing, cultivation, planting, and hauling large implements.
With four-wheel drive capability, power steering, hydraulic wet disc brakes, and a comfortable cab, the Massey Ferguson 3125 became a reliable machine for professional farmers around the world.
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 3125 |
| Series | 3100 Series |
| Production Years | 1990 – 1995 |
| Manufacturer | Massey Ferguson |
| Factory | Beauvais, France |
| Tractor Type | Row-Crop Tractor |
| Engine Power | 123.4 hp (92.0 kW) |
| Drive | Four-wheel drive |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Cab | Standard cab |
Series Map
| Model | Power |
|---|---|
| Massey Ferguson 3120 | 120 hp |
| Massey Ferguson 3125 | 123 hp |
The 3125 is the higher-power model in this part of the 3100 Series lineup, offering improved performance for heavier agricultural tasks.
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 6-cylinder |
| Displacement | 6.0 L |
| Engine Power | 123.4 hp (92.0 kW) |
| Fuel Capacity | 50.2 gal (190 L) |
The Perkins 6-cylinder diesel engine is known for durability, strong torque output, and reliable operation even in demanding farming environments.
Transmission
| Specification | Details |
|---|---|
| Transmission Option 1 | 16-speed manual |
| Transmission Option 2 | 32-speed four-speed power shift |
The available power-shift transmission allows smoother gear changes and improved efficiency during field operations.
Capacity
| Specification | Details |
|---|---|
| Fuel Tank | 50.2 gal (190 L) |
| Hydraulic System Capacity | 15.9 gal (60.2 L) |
Hydraulics
| Specification | Details |
|---|---|
| Hydraulic Capacity | 15.9 gal (60.2 L) |
| Hydraulic Pressure | 2610 psi (180 bar) |
| Pump Flow (early models) | 13.21 gpm (50 L/min) |
| Pump Flow (late models) | 13.74 gpm (52 L/min) |
The strong hydraulic system allows the tractor to operate a wide range of agricultural implements efficiently.
Tractor Hitch
| Specification | Details |
|---|---|
| Hitch Type | Rear Type II |
| Lift Capacity | 14,330 lbs (6,500 kg) |
This high lifting capacity allows the tractor to handle large implements such as heavy plows and cultivators.
Power Take-Off (PTO)
| Specification | Details |
|---|---|
| PTO Type | Independent |
| PTO Clutch | Electro-hydraulic |
| PTO Speeds | 540 / 1000 rpm |
| Engine RPM (540 PTO) | 1997 rpm |
| Engine RPM (1000 PTO) | 2000 rpm |
The electro-hydraulic PTO clutch improves ease of operation and implement control.
Dimensions & Tires
| Specification | Details |
|---|---|
| Wheelbase | 106.3 in (270 cm) |
| Weight | 11,486 lbs (5,210 kg) |
| Front Tire Size | 14.9R28 |
| Rear Tire Size | 18.4R38 |
The balanced weight distribution and large tires provide excellent traction in field conditions.
Electrical
| Specification | Details |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
Photos
Currently, official catalog photos of the Massey Ferguson 3125 are limited. Owners and collectors who have this tractor can contribute images to help document this model for future users.
✔ The Massey Ferguson 3125 remains a powerful and dependable tractor for medium-to-large scale agricultural operations.
Its reliable Perkins diesel engine, strong hydraulics, and flexible transmission options make it a trusted choice among farmers worldwide.
