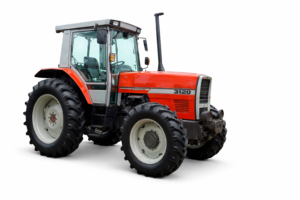

Massey Ferguson 3120 Tractor
The Massey Ferguson 3120 is a powerful row-crop tractor from the well-known 3100 Series, produced between 1993 and 1995. Built in Beauvais, France, this model was designed for demanding agricultural work such as plowing, cultivation, planting, and heavy transport operations.
Powered by a Perkins 6.0-liter six-cylinder diesel engine, the Massey Ferguson 3120 delivers 120 horsepower, making it suitable for medium-to-large scale farms. With its four-wheel drive system, advanced power-shift transmission, and strong hydraulic capacity, the tractor provides both performance and durability.
The model sits between the MF 3115 and MF 3125 in the 3100 Series lineup, offering an excellent balance of power, traction, and efficiency.
For farmers and agricultural contractors worldwide, the Massey Ferguson 3120 remains a trusted machine thanks to its robust construction, reliable Perkins engine, and comfortable cab design.
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 3120 |
| Series | 3100 Series |
| Production Years | 1993 – 1995 |
| Manufacturer | Massey Ferguson |
| Factory | Beauvais, France |
| Tractor Type | Row-Crop Tractor |
| Drive System | 4WD |
| Steering | Power Steering |
| Brakes | Hydraulic Wet Disc |
| Cab | Standard enclosed cab |
Series Map
| Model | Power |
|---|---|
| Massey Ferguson 3115 | 115 hp |
| Massey Ferguson 3120 | 120 hp |
| Massey Ferguson 3125 | 123 hp |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 6-cylinder |
| Displacement | 6.0 L |
| Engine Power | 120 hp (89.5 kW) |
| Fuel Tank Capacity | 47 gal (177.9 L) |
| Cooling | Liquid-cooled |
The Perkins 6-cylinder diesel engine provides smooth operation, high torque, and excellent fuel efficiency. This engine design is widely respected for its durability and reliability in demanding agricultural conditions.
Transmission
| Specification | Details |
|---|---|
| Transmission Type | Four-speed Power Shift |
| Total Gears | 32 Forward / Reverse |
| Drive | Four-wheel drive |
The 32-speed transmission with power-shift capability allows operators to select the ideal speed for various tasks without losing engine power, improving efficiency during field work.
Hydraulics
| Specification | Details |
|---|---|
| Hydraulic Pressure | 2610 psi (180 bar) |
| Pump Flow | 13.74 gpm (52.0 L/min) |
| Hitch Type | Rear Type II |
| Rear Lift Capacity | 14,330 lbs (6,500 kg) |
The hydraulic system provides strong lifting power, allowing the tractor to operate heavy implements such as plows, cultivators, and seeders.
Power Take-Off (PTO)
| Specification | Details |
|---|---|
| PTO Type | Independent |
| Rear PTO Speeds | 540 / 1000 rpm |
The independent PTO system allows implements to operate smoothly regardless of tractor movement, improving efficiency during mowing, baling, and other operations.
Dimensions & Tires
| Specification | Details |
|---|---|
| Wheelbase | 106.3 in (270 cm) |
| Operating Weight | 10,470 lbs (4,749 kg) |
| Front Tire Size | 14.9R28 |
| Rear Tire Size | 18.4R38 |
The long wheelbase and balanced weight distribution provide excellent traction and stability during heavy agricultural tasks.
Electrical
| Specification | Details |
|---|---|
| Ground | Negative |
| Batteries | 2 |
| Battery Voltage | 12V |
Photos
Currently, there are no official catalog photos available for the Massey Ferguson 3120 tractor.
If you own this model and would like to share photos, they may help other farmers and buyers better understand the machine.
✔ The Massey Ferguson 3120 remains a dependable high-horsepower tractor designed for professional farming operations.
With its strong Perkins engine, durable drivetrain, and powerful hydraulic system, it continues to be valued in agricultural markets worldwide.
