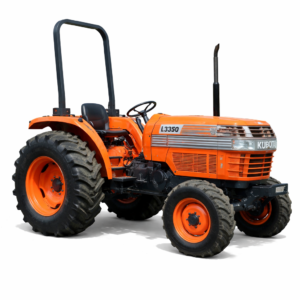

The Kubota L3350 is a powerful compact utility tractor from Kubota’s well-known L Series. Kubota manufactured this model between 1985 and 1990. Even today, farmers across the world continue to use this tractor because of its strength and reliability.
The tractor produces 40 horsepower and uses a durable Kubota diesel engine. As a result, it performs well in demanding agricultural tasks. Many farmers use the machine for plowing, loader work, transport, and field preparation.
Moreover, the L3350 offers strong hydraulic performance and a solid frame. Therefore, it can handle heavy attachments with confidence.
Because of these advantages, the model remains highly attractive in the Used Kubota Tractor market. Farmers searching for reliable Japanese equipment often choose the Kubota L3350.
Kubota L3350 Production Information
| Item | Details |
|---|---|
| Manufacturer | Kubota |
| Model | Kubota L3350 |
| Production Years | 1985 – 1990 |
| Series | L Series |
| Tractor Type | Compact Utility Tractor |
| Country of Manufacture | Japan |
Series Map
| Model | Engine Power |
|---|---|
| L3250 | 40 HP |
| L3350 | 40 HP |
| L3750 | 45 HP |
Engine Specifications
The Kubota L3350 features a reliable diesel engine built for durability and steady power output.
| Specification | Details |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | Diesel |
| Cylinders | 4-cylinder |
| Engine Displacement | 1.9 L |
| Cooling System | Liquid cooled |
This engine provides strong torque and smooth operation. Therefore, farmers can complete heavy work efficiently.
Power Output
| Specification | Output |
|---|---|
| Engine Power | 40 hp (29.8 kW) |
| PTO Power (claimed) | 32 hp (23.9 kW) |
| Drawbar Power (tested) | 26.66 hp |
| PTO Power (tested) | 32.86 hp |
These power levels allow the tractor to handle demanding farm implements.
Transmission System
The Kubota L3350 uses a mechanical shuttle transmission designed for reliable performance.
| Transmission | Description |
|---|---|
| 8-speed partially synchronized mechanical shuttle | Smooth shifting with shuttle capability |
This system helps operators change direction easily during loader operations.
Mechanical Features
Kubota engineered the L3350 with strong mechanical components.
| Feature | Description |
|---|---|
| Drive System | 4WD |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| Operator Protection | Two-post ROPS with optional sunshade |
These features improve both safety and operational control.
Capacity
| Specification | Details |
|---|---|
| Fuel Tank Capacity | 15.3 gal (57.9 L) |
| Hydraulic System Capacity | 11.4 gal (43.1 L) |
Large capacity tanks allow longer operating periods without frequent refueling.
Hydraulic System
The Kubota L3350 provides a strong hydraulic system for operating implements.
| Specification | Details |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Pressure | 2500 psi (172.4 bar) |
| Pump Flow | 9.3 gpm (35.2 lpm) |
| Hydraulic Valves | 0 – 2 |
Because of this strong hydraulic flow, the tractor handles loaders and backhoes effectively.
Three-Point Hitch
| Specification | Details |
|---|---|
| Hitch Type | Category I |
| Lift Capacity (at ends) | 3420 lbs (1551 kg) |
| Lift Capacity (24″) | 2650 lbs (1202 kg) |
The powerful lift capacity allows operation of heavy implements.
Power Take-Off (PTO)
| Specification | Details |
|---|---|
| PTO Type | Live PTO |
| PTO Speeds | 540 / 750 RPM |
This PTO system allows the tractor to operate a wide variety of agricultural equipment.
Dimensions and Tires
| Specification | Details |
|---|---|
| Wheelbase | 72.6 in (184 cm) |
| Weight | 3770 lbs (1710 kg) |
| Front Tire | 8-16 |
| Rear Tire | 13.6-24 |
These dimensions provide excellent stability during field work.
Available Attachments
The Kubota L3350 supports several useful attachments.
| Attachment | Application |
|---|---|
| Front-End Loader | Material handling |
| Backhoe | Digging and trenching |
| Rear Implements | Plows, blades, and more |
Because of these options, the tractor becomes a highly versatile farm machine.
Why Farmers Choose the Kubota L3350
Many farmers around the world still choose the Kubota L3350.
First, Kubota built the tractor with strong Japanese engineering. Therefore, it offers excellent long-term reliability.
Second, the machine provides high horsepower with a compact design. As a result, it works well on both medium and large farms.
Third, the tractor supports heavy attachments thanks to its strong hydraulics.
Finally, the model remains highly desirable in the Used Kubota Tractor market.
