New Holland TM150 Tractor – Overview and Specifications
EVERY FARM TRACTOR has been exporting high-quality used tractors, trucks, and agricultural machinery to over 100 countries since 2006.
The New Holland TM150 is a high-performance row-crop tractor from the renowned TM Series, designed for large-scale farming operations requiring high horsepower and strong hydraulic capacity.
Built in Basildon, England, the TM150 is equipped with a 7.5-liter 6-cylinder diesel engine producing 150 horsepower, delivering excellent torque, reliable field performance, and efficient fuel consumption.
This tractor is widely used for demanding agricultural tasks such as heavy tillage, plowing, cultivation, seeding, and operating large implements. With a powerful hydraulic system and comfortable operator cab, the TM150 is a dependable machine for professional farmers.
Overview
| Item | Details |
|---|---|
| Model | New Holland TM150 |
| Series | TM Series |
| Type | Row-Crop Tractor |
| Production Years | 2000 – 2002 |
| Manufacturer | New Holland |
| Assembly Location | Basildon, England |
| Related Models | TM135 / TM150 / TM165 |
Engine
The New Holland TM150 uses a large displacement 7.5-liter six-cylinder diesel engine designed for strong pulling power and reliable performance.
| Item | Specification |
|---|---|
| Engine Manufacturer | New Holland |
| Engine Type | Diesel |
| Cylinders | 6 |
| Displacement | 7.5 L |
| Engine Power | 150 hp (111.9 kW) |
| PTO Power (claimed) | 120 hp (89.5 kW) |
| PTO Power (tested) | 130.9 hp (97.6 kW) |
| Drawbar Power (tested) | 105 hp (78.3 kW) |
| Fuel Tank Capacity | 85 gal (321.7 L) |
The large fuel tank allows long working hours without frequent refueling.
Transmission
The TM150 offers durable transmission systems designed for heavy agricultural workloads.
| Transmission Type | Speeds |
|---|---|
| Power shift | 18-speed |
| Full power shift | 18-speed |
These transmissions provide smooth gear changes and efficient power delivery during field operations.
Mechanical Features
| Feature | Specification |
|---|---|
| Drive | 2WD or 4WD |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Cab | Standard enclosed operator cab |
| Operator Comfort | Climate-controlled cab for long work hours |
The spacious cab offers excellent visibility and comfort, improving productivity during extended operation.
Hydraulics
The Closed-Center Load-Sensing (CCLS) hydraulic system ensures strong hydraulic performance for modern agricultural equipment.
| Item | Specification |
|---|---|
| Hydraulic Type | Closed-center load sensing (CCLS) |
| Hydraulic Capacity | 26.5 gal (100.3 L) |
| Hydraulic Pressure | 2750 psi (189.6 bar) |
| Pump Flow | 28 gpm (106 L/min) |
| Steering Flow | 15.5 gpm (58.7 L/min) |
| Rear Valves | Up to 4 |
| Mid Valves | Up to 4 |
This hydraulic system supports heavy attachments and ensures efficient implement operation.
Tractor Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Hitch Control | Electronic lower-link draft sensing |
| Rear Lift Capacity | 11,690 lbs (5,302 kg) |
| Front Hitch | Category II |
| Front Lift Capacity | 7,208 lbs (3,269 kg) |
The strong lifting capacity allows the tractor to handle large agricultural implements with ease.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Clutch | Electro-hydraulic wet disc |
| PTO Speeds | 540 / 540E / 1000 rpm |
| Engine RPM @ 540 PTO | 1970 rpm |
| Engine RPM @ 540E PTO | 1546 rpm |
| Engine RPM @ 1000 PTO | 2120 rpm |
This PTO system allows efficient operation of equipment such as balers, mowers, sprayers, and spreaders.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 108.1 in (274 cm) |
| Wheelbase (4WD) | 107.2 in (272 cm) |
| SuperSteer Wheelbase | 113.4 in (288 cm) |
| Terraglide Wheelbase | 109.6 in (278 cm) |
| Weight | 10,472 – 13,960 lbs |
| Front Tire | 480/70R-28 |
| Rear Tire | 580/70R-38 |
The heavy chassis improves traction and stability for large-scale field operations.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 amps |
| Batteries | 2 |
| Battery Voltage | 12 V |
| Battery Capacity | 900 CCA |
Attachments
The TM150 can be equipped with various agricultural implements.
| Attachment | Details |
|---|---|
| Front-End Loader | Optional |
| Agricultural Implements | Plows, cultivators, seeders, balers |
Photos

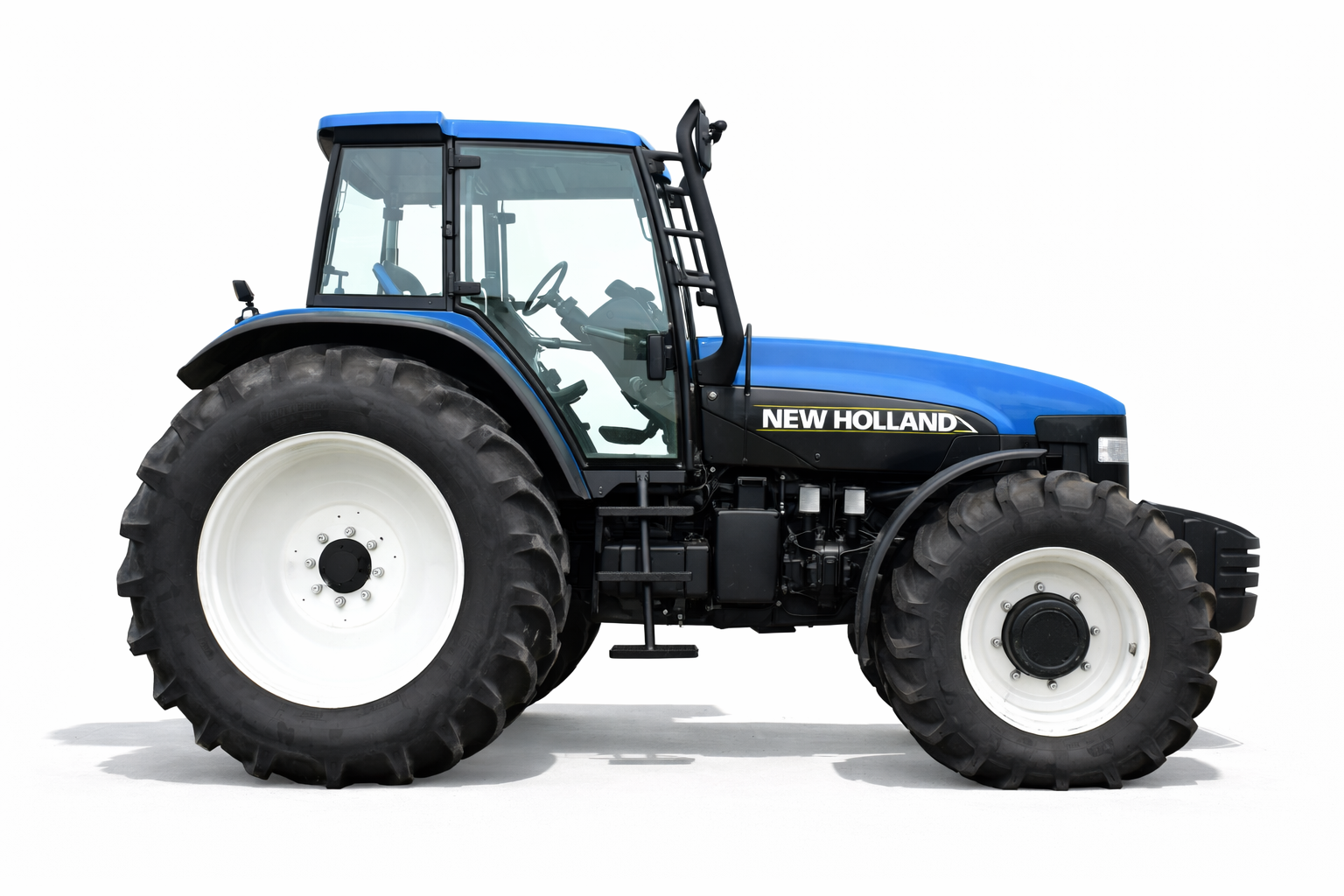

The New Holland TM150 features the signature New Holland blue body, white wheels, and enclosed operator cab, representing the powerful and reliable design of the TM Series tractors.
