New Holland TM140 Tractor – Overview and Specifications
EVERY FARM TRACTOR has been exporting high-quality used tractors, trucks, and agricultural machinery from Japan to more than 100 countries since 2006.
The New Holland TM140 is a powerful row-crop tractor from the well-known TM Series, designed for professional farming operations requiring high horsepower and strong hydraulic performance.
Built in Basildon, England, the TM140 features a 7.5-liter 6-cylinder diesel engine producing 140 horsepower, providing excellent torque and reliable performance for heavy agricultural work such as plowing, cultivation, seeding, and large implement operation.
With advanced transmission options, a comfortable cab, and a powerful closed-center load-sensing hydraulic system, the TM140 is well suited for large farms and demanding field conditions.
Overview
| Item | Details |
|---|---|
| Model | New Holland TM140 |
| Series | TM Series |
| Type | Row-Crop Tractor |
| Production Years | 2002 – 2007 |
| Manufacturer | New Holland |
| Assembly Location | Basildon, England |
| Related Model | Case IH MXM140 (similar model) |
Engine
The New Holland TM140 uses a CNH 7.5-liter six-cylinder diesel engine, delivering strong torque and dependable performance for heavy field operations.
| Item | Specification |
|---|---|
| Engine Manufacturer | CNH |
| Engine Type | Diesel |
| Cylinders | 6 |
| Displacement | 7.5 L |
| Engine Power | 140 hp (104.4 kW) |
| PTO Power (claimed) | 115 hp (85.8 kW) |
| PTO Power (tested) | 121.1 hp (90.3 kW) |
| Drawbar Power (tested) | 101.2 hp (75.5 kW) |
| Fuel Capacity | 75.3 gal (285 L) |
This high-capacity engine provides excellent fuel efficiency and consistent power under heavy loads.
Transmission
The TM140 offers several transmission configurations to suit different operating conditions.
| Transmission Type | Speeds |
|---|---|
| Partially synchronized | 24-speed |
| Partially synchronized | 20-speed |
| Six-speed power shift | 18-speed |
| Full power shift | 18-speed |
These transmission systems provide smooth shifting and efficient speed control for both fieldwork and transport.
Mechanical Features
| Feature | Specification |
|---|---|
| Drive | 2WD or 4WD |
| Differential Lock | Electro-hydraulic |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Cab | Standard cab with heating and air-conditioning |
| Seat | Optional heated air-ride seat |
The TM140 cab is designed for long working hours with improved comfort, visibility, and operator convenience.
Hydraulics
The tractor is equipped with a Closed-Center Load-Sensing (CCLS) hydraulic system, ensuring strong hydraulic performance for modern agricultural implements.
| Item | Specification |
|---|---|
| Hydraulic Type | Closed center load sensing (CCLS) |
| Hydraulic Capacity | 19.3 gal (73.1 L) |
| Optional Capacity | 23.6 gal (89.3 L) |
| Hydraulic Pressure | 2750 psi (189.6 bar) |
| Pump Flow | 28 gpm (106 L/min) |
| Total Flow | 44 gpm (166.5 L/min) |
| Steering Flow | 16 gpm (60.6 L/min) |
| Rear Valves | 4 |
| Mid Valves | 2 – 4 |
Tractor Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II / IIIN |
| Hitch Control | Electronic lower-link draft control |
| Rear Lift Capacity | 9,828 lbs (4,457 kg) |
| Optional Lift Capacity | 11,534 lbs (5,231 kg) |
| Front Hitch | Optional Category II |
| Front Lift Capacity | 7,208 lbs (3,269 kg) |
The strong lift capacity enables the tractor to handle large agricultural implements efficiently.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Clutch | Electro-hydraulic wet disc |
| PTO Speeds | 540 / 1000 rpm |
The independent PTO system allows efficient operation of PTO-driven equipment such as balers, mowers, and sprayers.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 107.2 in (272 cm) |
| SuperSteer Wheelbase | 113.4 in (288 cm) |
| Terraglide Wheelbase | 109.6 in (278 cm) |
| Weight | 11,353 – 12,935 lbs |
| Front Tire | 11.00-16 |
| Rear Tire | 18.4R38 |
The heavy chassis and long wheelbase provide excellent stability and traction in demanding agricultural environments.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 amps |
| Battery | 12 V |
| Battery Capacity | 1300 CCA |
Photos

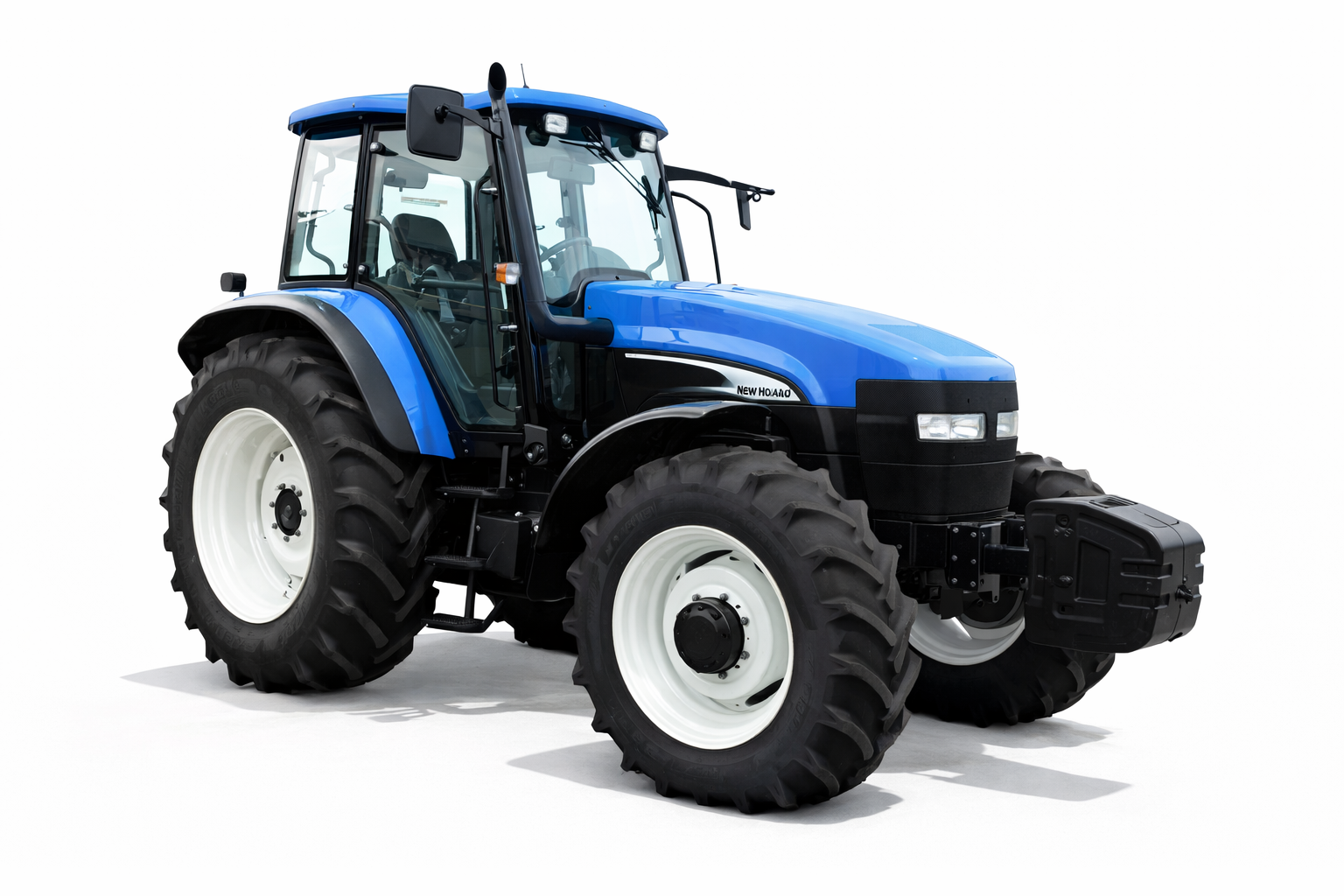

The New Holland TM140 features the classic New Holland blue body, white wheels, and enclosed cab, characteristic of the TM Series tractors used worldwide in modern farming.
