New Holland TM135 Tractor – Overview and Specifications
EVERY FARM TRACTOR has been exporting high-quality used tractors, trucks, and agricultural machinery to more than 100 countries since 2006.
The New Holland TM135 is a powerful row-crop tractor from the well-known TM Series, designed for medium to large-scale farming operations. Built in Basildon, England, the TM135 offers strong performance, high hydraulic capacity, and excellent lifting capability.
Equipped with a 7.5-liter 6-cylinder diesel engine producing 135 horsepower, the TM135 is suitable for demanding tasks such as plowing, cultivation, heavy tillage, and large implement operation.
This model is also valued for its comfortable cab, reliable transmission options, and advanced hydraulic system, making it a dependable tractor for professional farming environments.
Overview
| Item | Details |
|---|---|
| Model | New Holland TM135 |
| Series | TM Series |
| Type | Row-Crop Tractor |
| Production Years | 2000 – 2002 |
| Manufacturer | New Holland |
| Assembly Location | Basildon, England |
| Related Models | TM125 / TM135 / TM150 |
Engine
The New Holland TM135 uses a large displacement 7.5L diesel engine, delivering excellent torque and stable performance for heavy agricultural workloads.
| Item | Specification |
|---|---|
| Engine Manufacturer | New Holland |
| Engine Type | Diesel |
| Cylinders | 6 |
| Displacement | 7.5 L |
| Rated Engine Power | 135 hp (100.7 kW) |
| PTO Power (claimed) | 110 hp (82.0 kW) |
| PTO Power (tested) | 118.7 hp (88.5 kW) |
| Drawbar Power (tested) | 98.2 hp (73.2 kW) |
| Fuel Capacity | 58 gal (219.5 L) |
The large engine displacement provides strong pulling power and efficiency when operating heavy implements.
Transmission
The TM135 offers durable transmission options designed for smooth operation and improved productivity.
| Transmission Type | Speeds |
|---|---|
| Power shift | 18-speed |
| Two-speed power shift | 24-speed |
These transmissions allow operators to maintain optimal speed and power while working in the field or transporting loads.
Mechanical Features
| Feature | Specification |
|---|---|
| Drive | 2WD or 4WD |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Cab | Standard enclosed cab |
| Operator Comfort | Climate-controlled cab for long working hours |
The well-designed cab ensures excellent visibility and comfort, making it ideal for extended operation.
Hydraulics
The TM135 uses a Closed-Center Load-Sensing (CCLS) hydraulic system to deliver powerful and efficient hydraulic performance.
| Item | Specification |
|---|---|
| Hydraulic Type | Closed-center load sensing (CCLS) |
| Hydraulic Capacity | 23.75 gal (89.9 L) |
| Hydraulic Pressure | 2750 psi (189.6 bar) |
| Pump Flow | 28 gpm (106 L/min) |
| Steering Flow | 15.5 gpm (58.7 L/min) |
| Rear Valves | Up to 4 |
| Mid Valves | Up to 4 |
This system allows efficient operation of hydraulic implements such as loaders and large attachments.
Tractor Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Hitch Control | Electronic lower-link draft sensing |
| Rear Lift Capacity | 11,690 lbs (5,302 kg) |
| Front Hitch | Category II |
| Front Lift Capacity | 7,208 lbs (3,269 kg) |
The high lifting capacity makes the TM135 suitable for large implements and heavy field equipment.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Clutch | Electro-hydraulic wet disc |
| PTO Speeds | 540 / 540E / 1000 rpm |
| Engine RPM @ 540 PTO | 1970 rpm |
| Engine RPM @ 540E | 1546 rpm |
| Engine RPM @ 1000 PTO | 2120 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 108.1 in (274 cm) |
| Wheelbase (4WD) | 107.2 in (272 cm) |
| SuperSteer Wheelbase | 113.4 in (288 cm) |
| Terraglide Wheelbase | 109.6 in (278 cm) |
| Weight | 10,472 – 13,515 lbs |
| Front Tire | 480/70R-28 |
| Rear Tire | 580/70R-38 |
The heavy chassis and long wheelbase provide stability and strong traction for field operations.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 amps |
| Batteries | 2 |
| Battery Voltage | 12 V |
| Battery Capacity | 900 CCA |
Attachments
The New Holland TM135 is compatible with various agricultural attachments.
| Attachment | Details |
|---|---|
| Front-End Loader | Optional |
| Agricultural Implements | Plows, cultivators, seeders, balers |
Photos

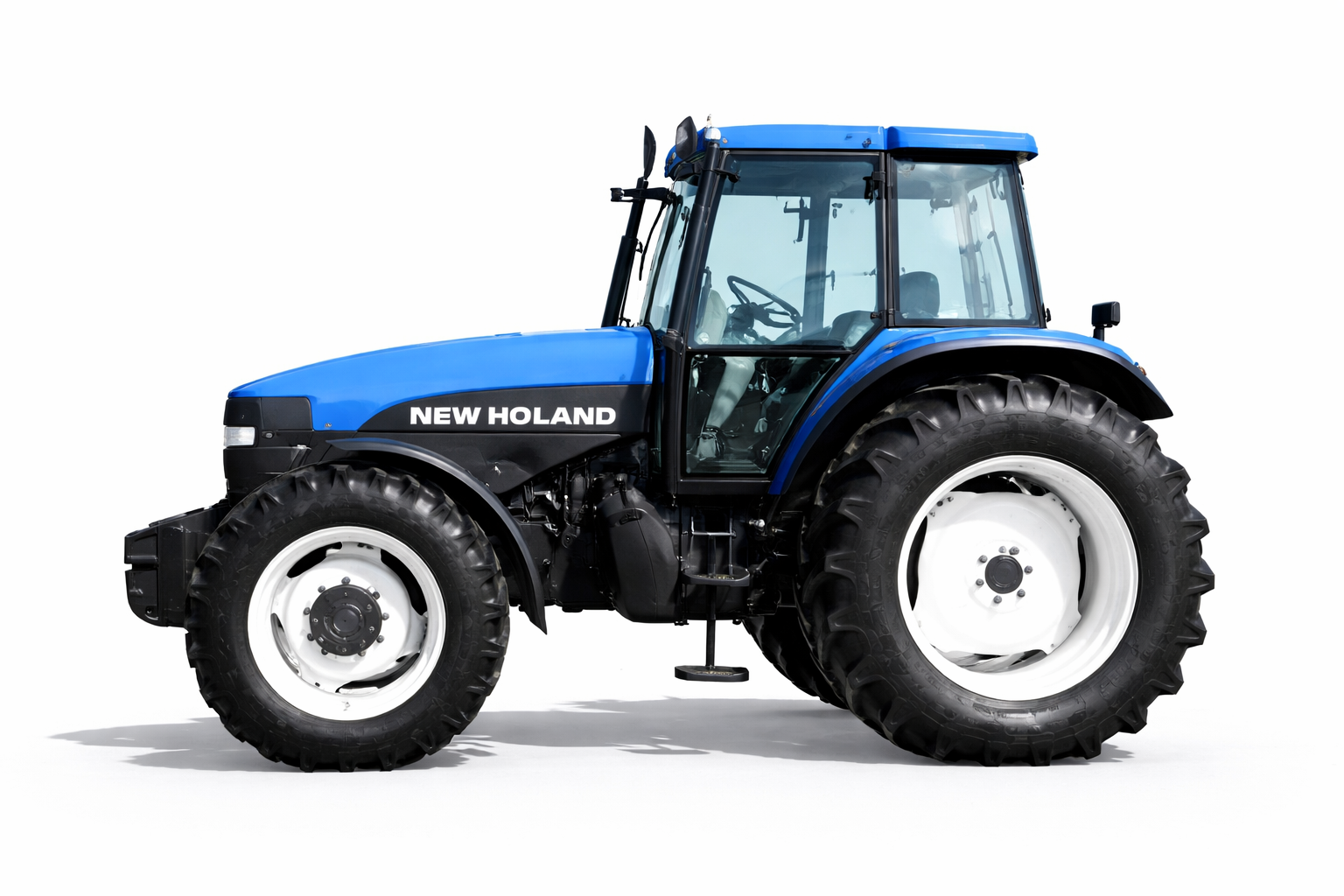

The New Holland TM135 typically features the recognizable New Holland blue body, white wheels, and enclosed cab design used across the TM Series tractors.
