New Holland TM125 Tractor
The New Holland TM125 is a powerful row-crop tractor produced from 2000 to 2002 as part of the reliable New Holland TM Series. Designed for medium-to-large farming operations, the TM125 combines strong engine performance, high hydraulic capacity, and excellent operator comfort.
Powered by a 7.5-liter 6-cylinder New Holland diesel engine, the TM125 produces 125 horsepower, delivering strong torque and reliable performance for demanding agricultural tasks such as plowing, cultivating, planting, and hauling.
Manufactured at New Holland’s Basildon plant in England, the TM125 was developed as the successor to the New Holland 8260 and part of a lineup that included the TM115, TM125, and TM135 models. The tractor features power-shift transmission options, a closed-center load sensing hydraulic system, and a spacious cab as standard equipment.
With its strong PTO output and lifting capacity, the TM125 is well suited for operating large implements and performing heavy field work.
EVERY FARM TRACTOR supplies carefully inspected agricultural machinery and exports reliable tractors like the New Holland TM125 to customers in over 100 countries worldwide.
Overview
| Item | Details |
|---|---|
| Model | New Holland TM125 |
| Production Years | 2000 – 2002 |
| Series | TM Series |
| Type | Row-Crop Tractor |
| Manufacturer | New Holland |
| Production Location | Basildon, England |
| Drive Options | Two-wheel drive (2WD) or four-wheel drive (4WD) |
| Steering | Power steering |
| Brakes | Hydraulic wet disc brakes |
| Cab | Standard enclosed cab |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | New Holland |
| Engine Type | Diesel |
| Cylinders | 6 |
| Displacement | 7.5 L (456 cu in) |
| Rated Engine Power | 125 hp (93.2 kW) |
| Fuel Tank Capacity | 58 gal (219.5 L) |
The 6-cylinder engine provides strong pulling power and smooth operation for demanding field tasks.
Transmission
| Transmission Type | Details |
|---|---|
| Power Shift | 18-speed |
| Two-Speed Power Shift | 24-speed |
These transmission options provide efficient speed control for field work and road transport.
Power
| Item | Output |
|---|---|
| Engine Power | 125 hp (93.2 kW) |
| PTO Power (claimed) | 100 hp (74.6 kW) |
| Drawbar Power (tested) | 87.2 hp (65.0 kW) |
| PTO Power (tested) | 110.2 hp (82.2 kW) |
The high PTO output allows the TM125 to power large agricultural implements.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic System | Closed-Center Load Sensing (CCLS) |
| Hydraulic Capacity | 23.75 gal (89.9 L) |
| Hydraulic Pressure | 2750 psi (189.6 bar) |
| Pump Flow | 28 gpm (106 L/min) |
| Steering Flow | 15.5 gpm (58.7 L/min) |
| Rear Valves | Up to 4 |
| Mid Valves | Up to 4 |
The advanced hydraulic system provides strong lifting capacity and efficient implement control.
Hitch
| Item | Specification |
|---|---|
| Rear Hitch Category | Category II |
| Hitch Control | Electronic lower-link draft sensing |
| Rear Lift Capacity | 8,725 lbs (3,957 kg) |
| Front Hitch | Category II |
| Front Lift Capacity | 7,208 lbs (3,269 kg) |
This lifting capacity enables the tractor to operate heavy farm equipment.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Clutch | Electro-hydraulic wet disc |
| PTO Speeds | 540 / 1000 RPM |
| Optional PTO | 540 / 540E / 1000 RPM |
| PTO Engine Speed | 540 @ 1970 RPM |
| 540E @ 1546 RPM | |
| 1000 @ 2120 RPM |
Multiple PTO speed options allow efficient operation of a wide range of implements.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 108.1 in (274 cm) |
| Wheelbase (4WD) | 107.2 in (272 cm) |
| SuperSteer Wheelbase | 113.4 in (288 cm) |
| Terraglide Wheelbase | 109.6 in (278 cm) |
| Operating Weight | 10,252 – 11,765 lbs (4,650 – 5,335 kg) |
| Front Tires | 480/70R-28 |
| Rear Tires | 580/70R-38 |
The large tires and strong chassis provide stability and traction for field operations.
Attachments
Common attachments used with the New Holland TM125 include:
-
Front-end loader
-
Heavy cultivators
-
Rotary mowers
-
Balers
-
Plows and tillage equipment
-
Seed drills
The tractor’s powerful hydraulics and PTO allow it to operate large farm implements efficiently.
Serial Numbers
| Year | Serial Number Start |
|---|---|
| 2000 | 13443B |
| 2001 | 155247B |
| 2002 | 173895B |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Capacity | 120 amps |
| Batteries | 2 |
| Battery Voltage | 12 V |
| Battery CCA | 900 |
Photos

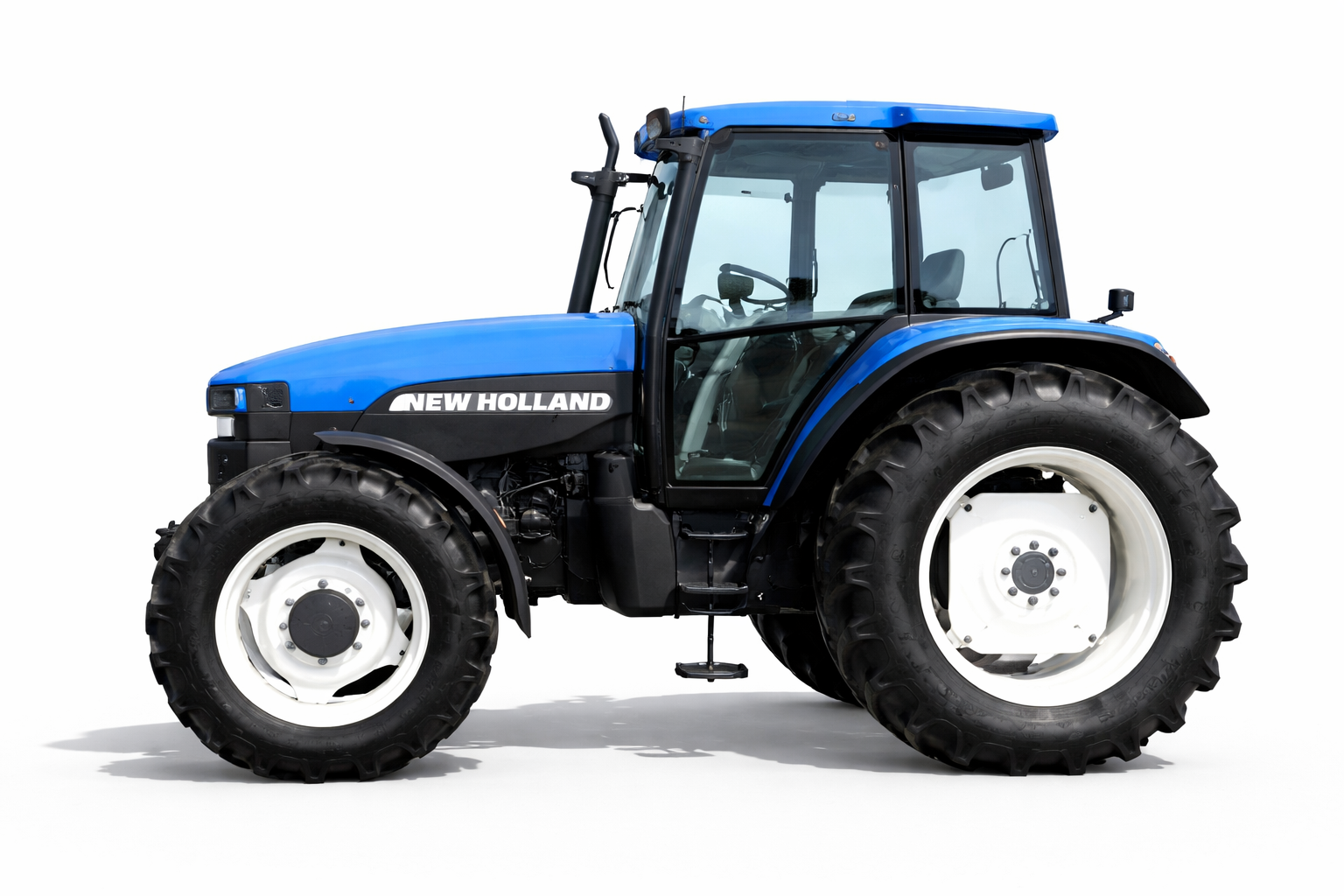

Typical characteristics of the New Holland TM125 tractor include:
-
Classic blue New Holland row-crop tractor design
-
Spacious enclosed cab for operator comfort
-
Large agricultural tires for traction
-
Strong frame designed for heavy field work
