New Holland TM115 Tractor
The New Holland TM115 is a dependable row-crop tractor produced between 2000 and 2002 as part of the New Holland TM Series. Designed for modern agricultural operations, the TM115 combines strong engine performance, advanced hydraulics, and operator comfort.
Powered by a 7.5-liter 6-cylinder diesel engine developed by New Holland, the tractor produces 115 horsepower, delivering strong torque and efficient operation for fieldwork, cultivation, loader work, and transport.
The TM115 features a power-shift transmission, advanced closed-center load-sensing (CCLS) hydraulic system, and optional four-wheel drive, allowing it to handle demanding farm operations with ease. A spacious cab comes standard, providing comfort and visibility for long working hours.
Manufactured in Basildon, England, the New Holland TM115 became a popular choice among farmers due to its reliability, hydraulic capacity, and compatibility with a wide range of agricultural implements.
EVERY FARM TRACTOR supplies high-quality used tractors and exports them to customers in more than 100 countries worldwide, supporting agriculture with dependable equipment.
Overview
| Item | Details |
|---|---|
| Model | New Holland TM115 |
| Production Years | 2000 – 2002 |
| Series | TM Series |
| Type | Row-Crop Tractor |
| Manufacturer | New Holland |
| Production Location | Basildon, England |
| Drive Options | 2WD or 4WD |
| Steering | Power Steering |
| Brakes | Hydraulic Wet Disc |
| Cab | Standard enclosed cab |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | New Holland |
| Engine Type | Diesel |
| Cylinders | 6 |
| Displacement | 7.5 L (456 cu in) |
| Rated Engine Power | 115 hp (85.8 kW) |
| Fuel Tank Capacity | 58 gal (219.5 L) |
The large 6-cylinder diesel engine delivers strong pulling power and reliable performance for demanding agricultural tasks.
Transmission
| Item | Specification |
|---|---|
| Transmission Option 1 | 18-speed Power Shift |
| Transmission Option 2 | 24-speed Two-speed Power Shift |
These transmission options provide smooth gear changes and flexibility for different field conditions and transport speeds.
Power
| Item | Output |
|---|---|
| Engine Power | 115 hp (85.8 kW) |
| PTO Power (claimed) | 92 hp (68.6 kW) |
| Drawbar Power (tested) | 76.2 hp (56.8 kW) |
| PTO Power (tested) | 98 hp (73.1 kW) |
The TM115 delivers strong PTO output suitable for large implements.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic System | Closed-Center Load Sensing (CCLS) |
| Hydraulic Capacity | 23.75 gal (89.9 L) |
| Hydraulic Pressure | 2750 psi (189.6 bar) |
| Pump Flow | 28 gpm (106 L/min) |
| Steering Flow | 15.5 gpm (58.7 L/min) |
| Rear Valves | Up to 4 |
| Mid Valves | Up to 4 |
The CCLS hydraulic system provides high flow and efficient implement control.
Hitch
| Item | Specification |
|---|---|
| Rear Hitch Category | Category II |
| Rear Hitch Control | Electronic lower-link draft sensing |
| Rear Lift Capacity | 8,725 lbs (3,957 kg) |
| Front Hitch Category | Category II |
| Front Lift Capacity | 7,208 lbs (3,269 kg) |
This lifting capacity allows the tractor to handle large agricultural implements.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Clutch | Electro-hydraulic wet disc |
| PTO Speeds | 540 / 1000 RPM |
| Optional PTO | 540 / 540E / 1000 RPM |
| PTO Engine Speed | 540 @ 1970 rpm |
| 540E @ 1546 rpm | |
| 1000 @ 2120 rpm |
Multiple PTO speeds allow efficient operation of different farm implements.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 108.1 in (274 cm) |
| Wheelbase (4WD) | 107.2 in (272 cm) |
| SuperSteer Wheelbase | 113.4 in (288 cm) |
| Terraglide Wheelbase | 109.6 in (278 cm) |
| Operating Weight | 10,229 – 11,760 lbs (4,640 – 5,334 kg) |
| Front Tires | 480/70R-28 |
| Rear Tires | 580/70R-38 |
The long wheelbase and large tires provide excellent traction and stability in field conditions.
Attachments
Common attachments compatible with the New Holland TM115 include:
-
Front-end loader
-
Cultivators
-
Rotary mowers
-
Balers
-
Plows and tillage equipment
-
Grain drills
The tractor’s strong PTO and hydraulic system make it suitable for many agricultural applications.
Serial Numbers
| Year | Serial Number Start |
|---|---|
| 2000 | 13443B |
| 2001 | 155247B |
| 2002 | 173895B |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Capacity | 120 amps |
| Batteries | 2 |
| Battery Voltage | 12 V |
| Battery CCA | 900 |
Photos

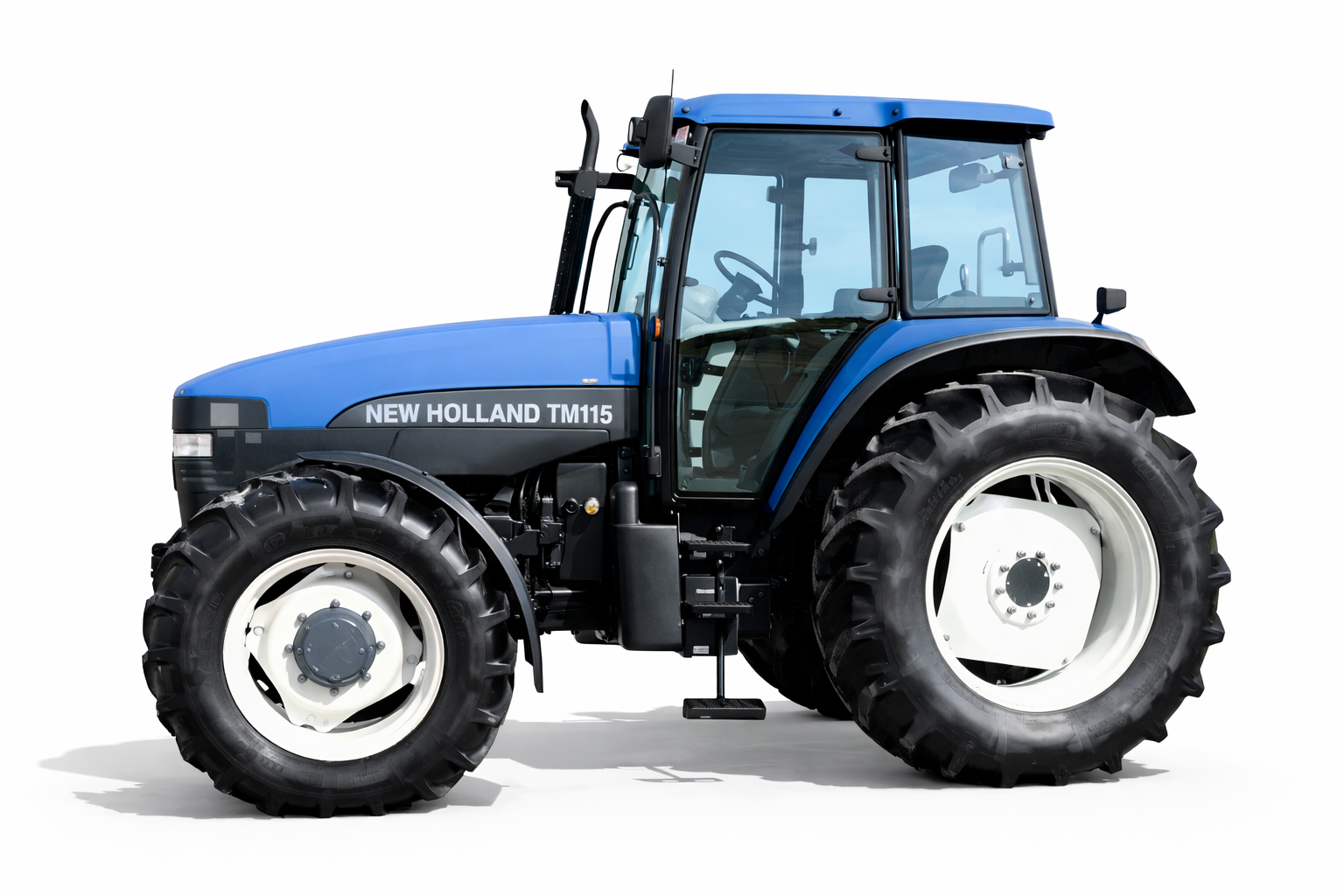

Typical characteristics of the New Holland TM115 tractor include:
-
Modern blue New Holland row-crop tractor design
-
Spacious enclosed cab with excellent visibility
-
Large agricultural tires for traction
-
Strong chassis designed for heavy field operations
