Massey Ferguson 2660 HD Tractor – Overview, Specs & Features
The Massey Ferguson 2660 HD is a heavy-duty utility tractor from the Massey Ferguson 2600 HD Series, produced between 2010 and 2013. Manufactured in Brazil by Massey Ferguson (part of AGCO), this tractor was designed to deliver durability, strong lifting capacity, and dependable performance for demanding agricultural work.
Powered by a reliable Perkins 4.4-liter 4-cylinder diesel engine, the MF 2660 HD produces 81 horsepower, providing strong torque and fuel efficiency for farming tasks such as cultivation, loader work, transport, and PTO-driven operations.
The tractor is available with two-wheel drive or four-wheel drive configurations and offers 8-speed synchronized shuttle or 12-speed partially synchronized transmissions, giving operators flexibility in different working environments. With its strong Category II three-point hitch, hydraulic system, and independent PTO, the MF 2660 HD is widely used in farming, livestock operations, and utility applications.
Massey Ferguson 2660 HD Specifications
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 2660 HD |
| Series | 2600 HD Series |
| Type | Utility Tractor |
| Production | 2010 – 2013 |
| Manufacturer | Massey Ferguson (AGCO) |
| Built In | Brazil |
| Series Map | MF 2650 HD → MF 2660 HD → MF 2670 HD |
| Power Class | 81 hp |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 4.4 L |
| Gross Engine Power | 81 hp (60.4 kW) |
| PTO Power (claimed) | 70 hp (52.2 kW) |
| PTO Power (tested) | 70.96 hp (52.9 kW) |
| Fuel Tank Capacity | 26.5 gal (100.3 L) |
The Perkins 4.4L diesel engine is known for strong torque output and excellent reliability in heavy-duty agricultural environments.
Transmission
| Specification | Details |
|---|---|
| Transmission Type | Gear |
| Option 1 | 8-speed synchronized shuttle |
| Option 2 | 12-speed partially synchronized |
| Drive Options | 2WD or 4WD |
The shuttle transmission improves efficiency during loader work by allowing smooth forward and reverse shifting.
Power
| Specification | Output |
|---|---|
| Engine Gross Power | 81 hp (60.4 kW) |
| PTO Power (claimed) | 70 hp (52.2 kW) |
| PTO Power (tested) | 70.96 hp (52.9 kW) |
Mechanical Features
| Feature | Details |
|---|---|
| Drive Type | 2WD or 4WD |
| Differential Lock | Standard |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Operator Station | ROPS standard, cab optional |
These mechanical features ensure safe handling and strong traction in various agricultural conditions.
Hydraulics
| Specification | Details |
|---|---|
| Hydraulic Type | Open center |
| Valves | 1–3 |
| Pump Flow | 14.5 gpm (54.9 L/min) |
| Total Flow | 22.5 gpm (85.2 L/min) |
The hydraulic system provides dependable performance for operating implements and loaders.
Three-Point Hitch
| Specification | Details |
|---|---|
| Hitch Category | II |
| Lift Capacity (24″/610mm) | 3,391 lbs (1,538 kg) |
Power Take-Off (PTO)
| Specification | Details |
|---|---|
| PTO Type | Independent |
| Rear PTO Speed | 540 rpm |
The independent PTO allows implements to continue operating even when the tractor stops.
Dimensions & Tires
| Specification | Details |
|---|---|
| Wheelbase | 90 inches (228 cm) |
| Weight | 5,578 – 7,750 lbs |
| Front Tires | 9.5L-15SL |
| Rear Tires | 18.4-30 (2WD) |
The balanced chassis design ensures stability and good traction during heavy-duty tasks.
Attachments
| Attachment | Details |
|---|---|
| Front Loader | Compatible front-end loader available |
Front loaders significantly expand the tractor’s capabilities for farm work and material handling.
Serial Number Location
| Item | Location |
|---|---|
| Serial Number | Rear of the tractor |
Electrical
| Specification | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Amps (ROPS) | 55 amps |
| Charging Amps (Cab) | 90 amps |
| Battery | 12V |
| Battery CCA | 750 |
Photos

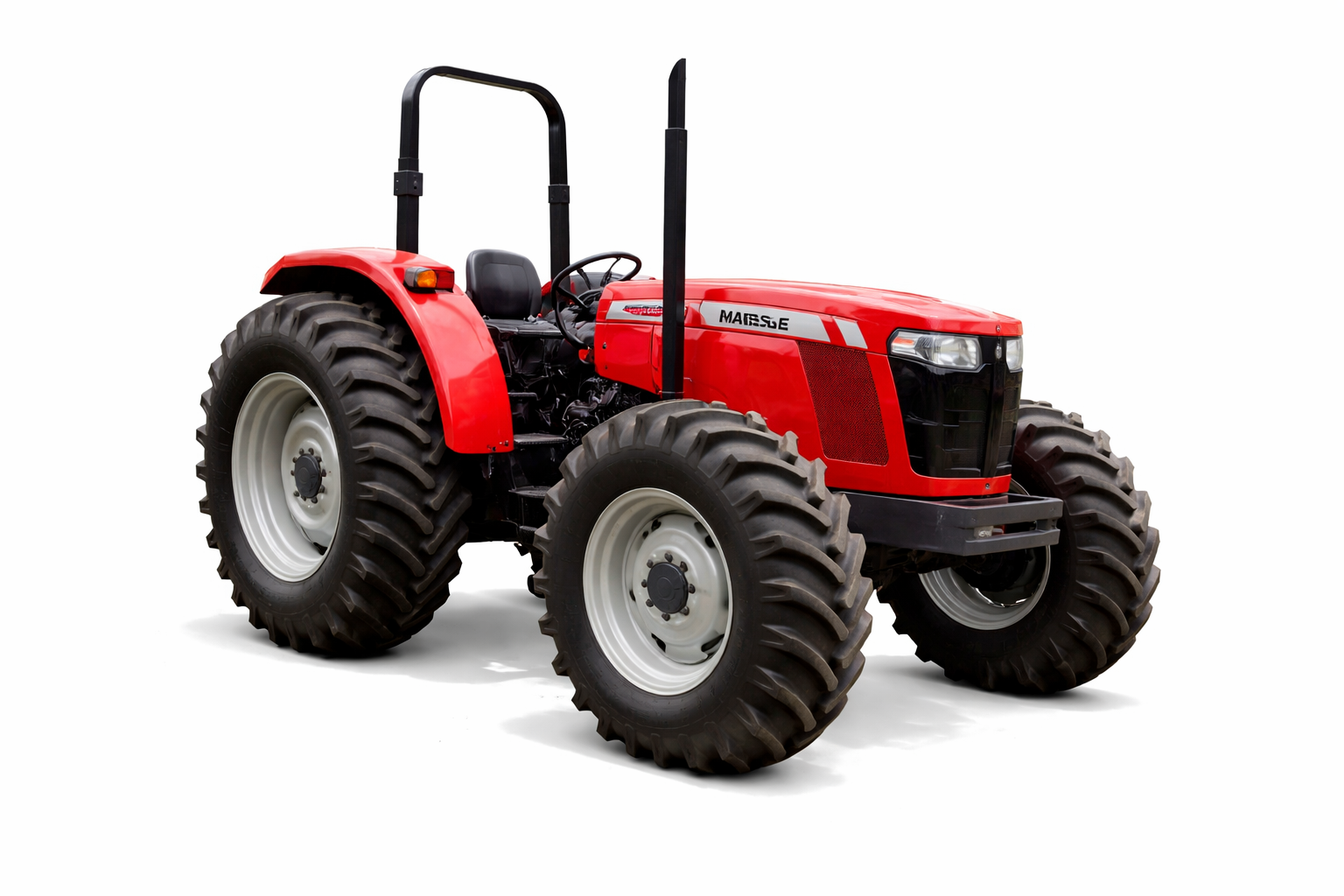

Photos of the Massey Ferguson 2660 HD tractor may vary depending on configuration such as drive type, cab installation, and attachments.
Why Farmers Choose the Massey Ferguson 2660 HD
The MF 2660 HD is valued for its strong Perkins engine, durable transmission options, and reliable hydraulic system. Farmers often use this tractor for:
-
Field cultivation and soil preparation
-
Loader and material handling work
-
PTO-driven equipment operation
-
Transport and hauling
-
Livestock and mixed farming tasks
Its balance of power, reliability, and simple maintenance makes it a trusted tractor in agricultural operations around the world.
