Massey Ferguson 2640 Tractor – Overview, Specs & Features
The Massey Ferguson 2640 is a powerful row-crop tractor from the well-known Massey Ferguson 2000 Series, produced between 1980 and 1985. Built at the Massey Ferguson factory in Beauvais, France, this tractor was designed to provide strong performance and reliability for medium to large-scale farming operations.
Equipped with a durable Perkins 5.8-liter 6-cylinder diesel engine, the MF 2640 delivers approximately 110 horsepower, making it suitable for demanding field work such as plowing, cultivation, heavy tillage, and operating large PTO implements. Its 16-speed transmission with two-speed power shift provides flexible gear selection for both field and transport applications.
The tractor also features a comfortable cab with air-conditioning, hydraulic wet disc brakes, and a strong three-point hitch system capable of lifting up to 4,500 kg, ensuring excellent productivity and operator comfort.
Massey Ferguson 2640 Specifications
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 2640 |
| Series | 2000 Series |
| Type | Row-Crop Tractor |
| Production | 1980 – 1985 |
| Manufacturer | Massey Ferguson |
| Assembly Location | Beauvais, France |
| Original Price (1983) | $38,000 |
| Series Map | MF 2620 → MF 2640 → MF 2680 |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 6-cylinder |
| Displacement | 5.8 L |
| Engine Power | 110 hp (82 kW) |
| Fuel Tank Capacity | 56.3 gal (213.1 L) |
The Perkins 6-cylinder diesel engine is well known for durability, torque, and fuel efficiency, making it ideal for heavy agricultural operations.
Transmission
| Specification | Details |
|---|---|
| Transmission Type | Power Shift |
| Gears | 16-speed |
| Drive Options | 2WD or 4WD |
The two-speed power shift transmission allows smooth gear changes and improved performance during heavy field work.
Power
| Specification | Output |
|---|---|
| Engine Power | 110 hp (82 kW) |
| PTO Power (claimed) | 90 hp (67.1 kW) |
| Drawbar Power (tested) | 74.77 hp (55.8 kW) |
| PTO Power (tested) | 90.95 hp (67.8 kW) |
Mechanical Features
| Feature | Details |
|---|---|
| Drive Type | 2WD or 4WD |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Differential Lock | Hydraulic |
| Final Drives | Inboard planetary |
| Cab | Standard cab with air-conditioning |
The enclosed cab improves comfort during long working hours while maintaining good visibility and operator protection.
Hydraulics
| Specification | Details |
|---|---|
| Hydraulic Type | Open center |
| Valves | 2 or 3 |
| Pump Flow | 15 gpm (56.8 L/min) |
| Steering Flow | 14.5 gpm (54.9 L/min) |
| Total Flow | 34.8 gpm (131.7 L/min) |
The strong hydraulic system enables efficient operation of heavy implements and loader equipment.
Three-Point Hitch
| Specification | Details |
|---|---|
| Hitch Type | Category II |
| Control | Position and draft control |
| Rear Lift Capacity (ends) | 9,921 lbs (4,500 kg) |
| Rear Lift (24″/610mm) | 7,600 lbs (3,447 kg) |
This lifting capacity allows the MF 2640 to handle large implements such as cultivators, plows, and seeders.
Power Take-Off (PTO)
| Specification | Details |
|---|---|
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 rpm |
| PTO Clutch | Hydraulic disc |
| Engine RPM for PTO | 540 @ 1900 rpm |
| 1000 @ 2090 rpm |
Dual PTO speeds allow compatibility with a wide range of agricultural equipment.
Dimensions & Tires
| Specification | Details |
|---|---|
| Wheelbase (2WD) | 105 inches (266 cm) |
| Wheelbase (4WD) | 107.3 inches (272 cm) |
| Weight | 11,200 – 12,600 lbs |
| Front Tires | 10.00-16 |
| Rear Tires (2WD) | 18.4-38 |
The large wheelbase and heavy chassis provide excellent stability and traction for field operations.
Electrical
| Specification | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Batteries | 2 |
| Battery Voltage | 12V |
| Battery Capacity | 85 AH |
Photos

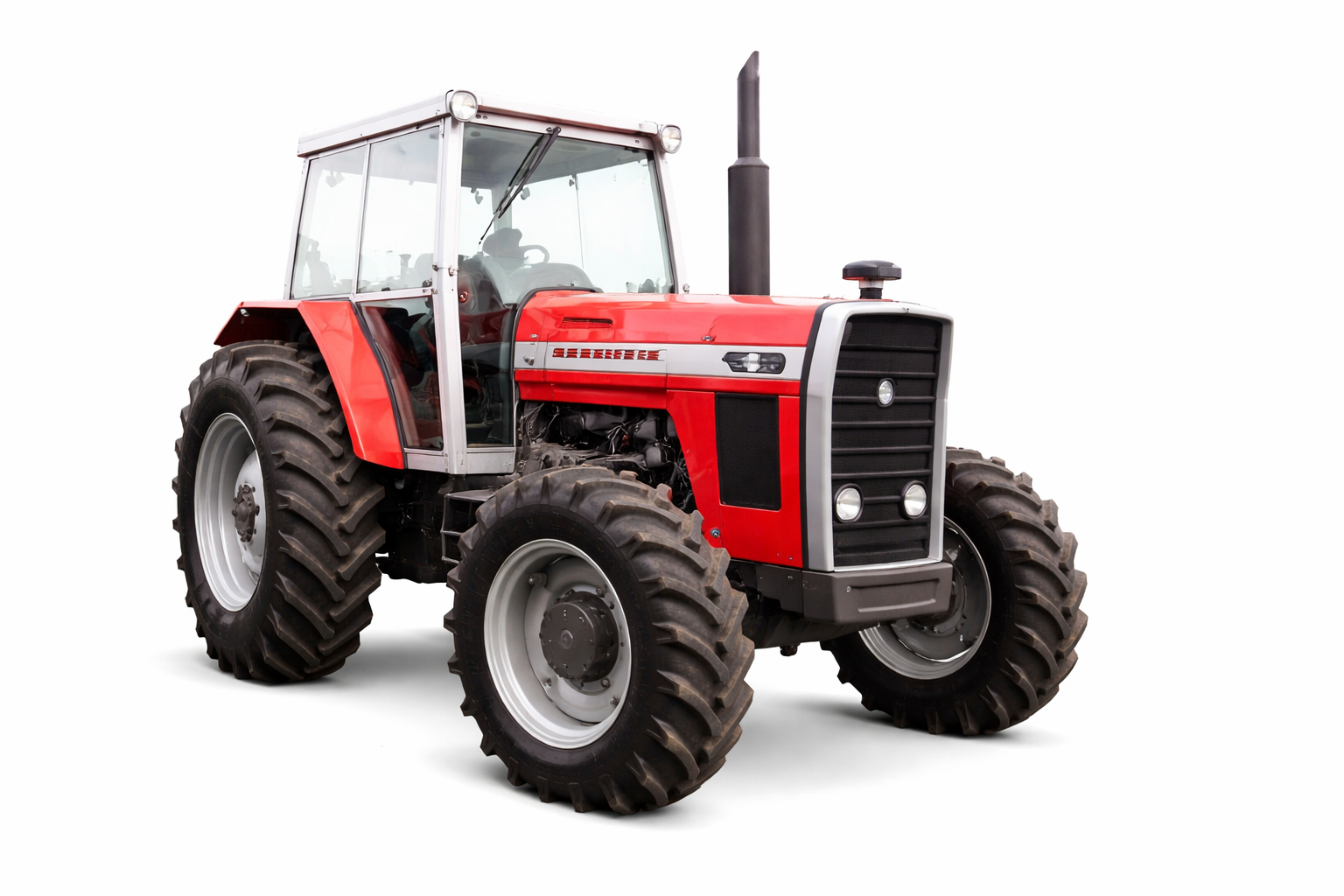

Photos of the Massey Ferguson 2640 tractor may vary depending on configuration such as cab type, drive system, and attachments.
Field Performance & Reliability
The Massey Ferguson 2640 became popular worldwide due to its powerful Perkins engine, durable transmission, and strong hydraulic capacity. Farmers used this tractor for:
-
Heavy tillage operations
-
Row-crop cultivation
-
PTO equipment operation
-
Transport and hauling
-
Loader and hydraulic implement work
Its robust construction and straightforward mechanical design helped establish the MF 2000 Series as a trusted tractor lineup in many agricultural regions.
