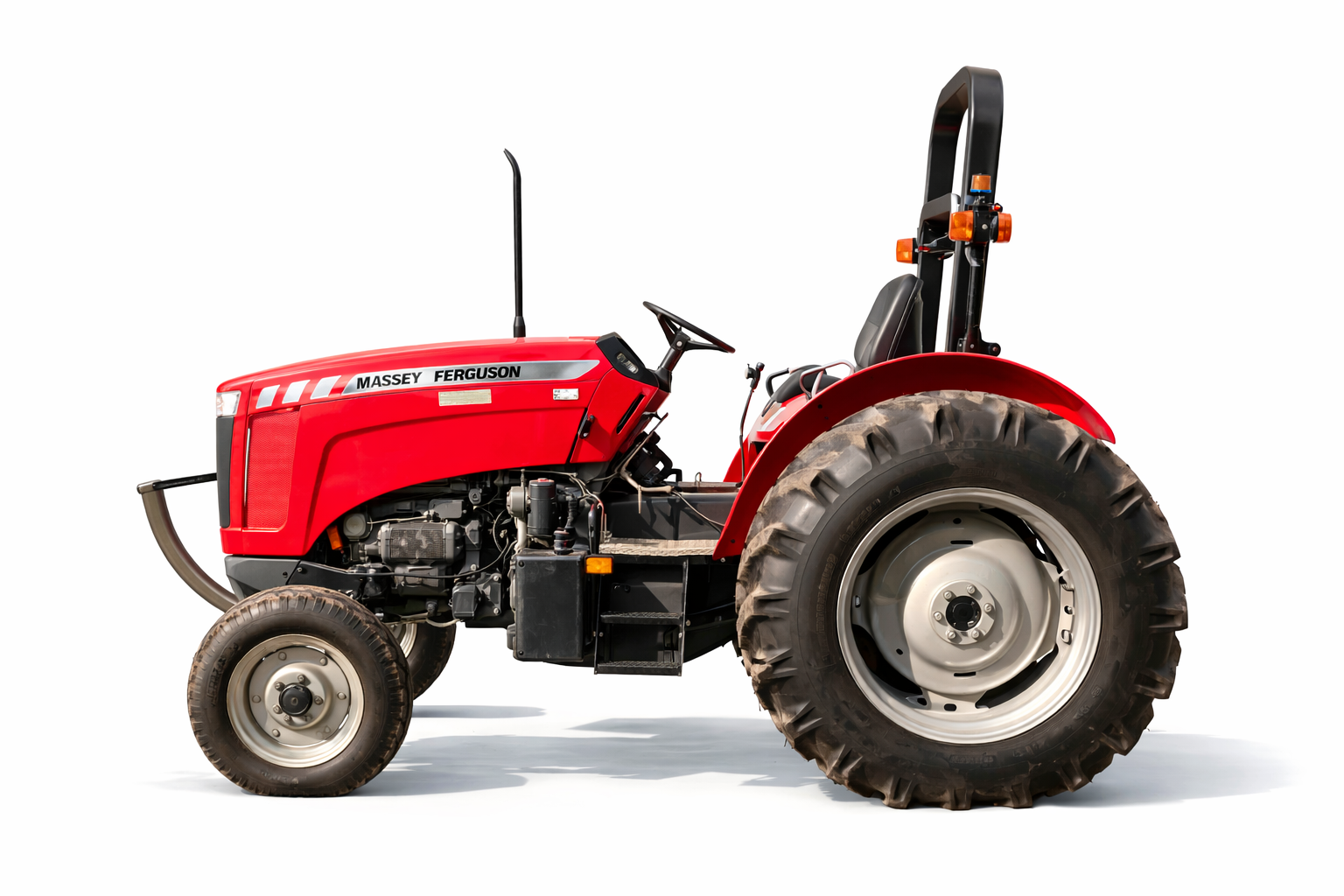

Massey Ferguson 2605H Tractor – Detailed Specifications
The Massey Ferguson 2605H is a dependable utility tractor introduced in 2016 as part of the Massey Ferguson 2600H Series. This tractor is designed for reliability, efficiency, and ease of operation, making it ideal for small to medium-sized farms, livestock operations, and general agricultural work.
Powered by a Simpson 2.6-liter 3-cylinder diesel engine, the MF 2605H produces 55 horsepower, providing strong torque and fuel efficiency for field operations and loader work. Farmers can choose between two-wheel drive (2WD) and four-wheel drive (4WD) configurations depending on their working conditions.
With a durable 8-speed transmission, strong hydraulics, and a robust three-point hitch system, the Massey Ferguson 2605H offers excellent performance and versatility for daily agricultural tasks.
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 2605H |
| Series | 2600H Series |
| Production | 2016 – Present |
| Manufacturer | Massey Ferguson |
| Tractor Type | Utility Tractor |
| Original Price (2017) | $20,336 |
| Drive Options | 2WD or 4WD |
| Engine Power | 55 hp (41.0 kW) |
Series Lineup
| Model | Engine Power |
|---|---|
| MF 2604H | 45 hp |
| MF 2605H | 55 hp |
| MF 2606H | 65 hp |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Simpson |
| Engine Type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 2.6 L |
| Gross Engine Power | 55 hp (41.0 kW) |
| Fuel Tank Capacity | 14.5 gal (54.9 L) |
| Cooling System | Liquid-cooled |
The Simpson diesel engine provides reliable power and excellent fuel economy, making the tractor suitable for extended working hours in agricultural environments.
Transmission
| Specification | Details |
|---|---|
| Transmission Type | Gear drive |
| Optional Transmission | Sync shuttle |
| Speeds | 8 forward / 2 reverse |
The optional sync shuttle transmission allows easier forward and reverse changes, which is especially useful for loader work.
Power & PTO
| Specification | Details |
|---|---|
| Engine Power | 55 hp (41.0 kW) |
| PTO Power | 46 hp (34.3 kW) |
| PTO Type (2WD) | Live |
| PTO Type (4WD) | Independent |
| PTO Speed | 540 rpm |
The PTO system supports a wide range of agricultural implements including mowers, balers, sprayers, and tillers.
Mechanical Features
| Feature | Details |
|---|---|
| Drive System | 2WD or 4WD |
| Differential Lock | Mechanical rear |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| Operator Platform | Open station |
| Safety | Two-post folding ROPS |
These mechanical features ensure stability, control, and operator safety during demanding farming operations.
Hydraulics
| Specification | Details |
|---|---|
| Hydraulic Type | Open center |
| Control Valves | 1 |
| Pump Flow | 10.6 gpm (40.1 L/min) |
| Total Flow | 15.7 gpm (59.4 L/min) |
The hydraulic system supports loader operations and rear implements efficiently.
Three-Point Hitch
| Specification | Details |
|---|---|
| Hitch Category | Category I / II |
| Rear Lift Capacity (24 in / 610 mm) | 2,755 lbs (1,249 kg) |
The three-point hitch allows the tractor to operate various agricultural attachments such as plows, seeders, and rotary tillers.
Dimensions & Tires
| Specification | Details |
|---|---|
| Wheelbase (2WD) | 80.7 in (204 cm) |
| Wheelbase (4WD) | 81.5 in (207 cm) |
| Weight | 4,894 – 5,394 lbs (2,220 – 2,447 kg) |
| Front Tires | 6.00×16 |
| Rear Tires (2WD) | 13.6×28 |
The tractor’s balanced design provides stability and traction in both field and transport applications.
Attachments
| Attachment | Description |
|---|---|
| Front-End Loader | Used for material handling and lifting tasks |
With loader attachments, the MF 2605H becomes a versatile machine for farm work and property maintenance.
Electrical System
| Specification | Details |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
Photos
✅ EVERY FARM TRACTOR exports reliable Japanese used tractors and agricultural equipment to more than 100 countries worldwide.
The Massey Ferguson 2605H remains a popular model due to its powerful engine, simple design, and dependable performance in agricultural operations.
