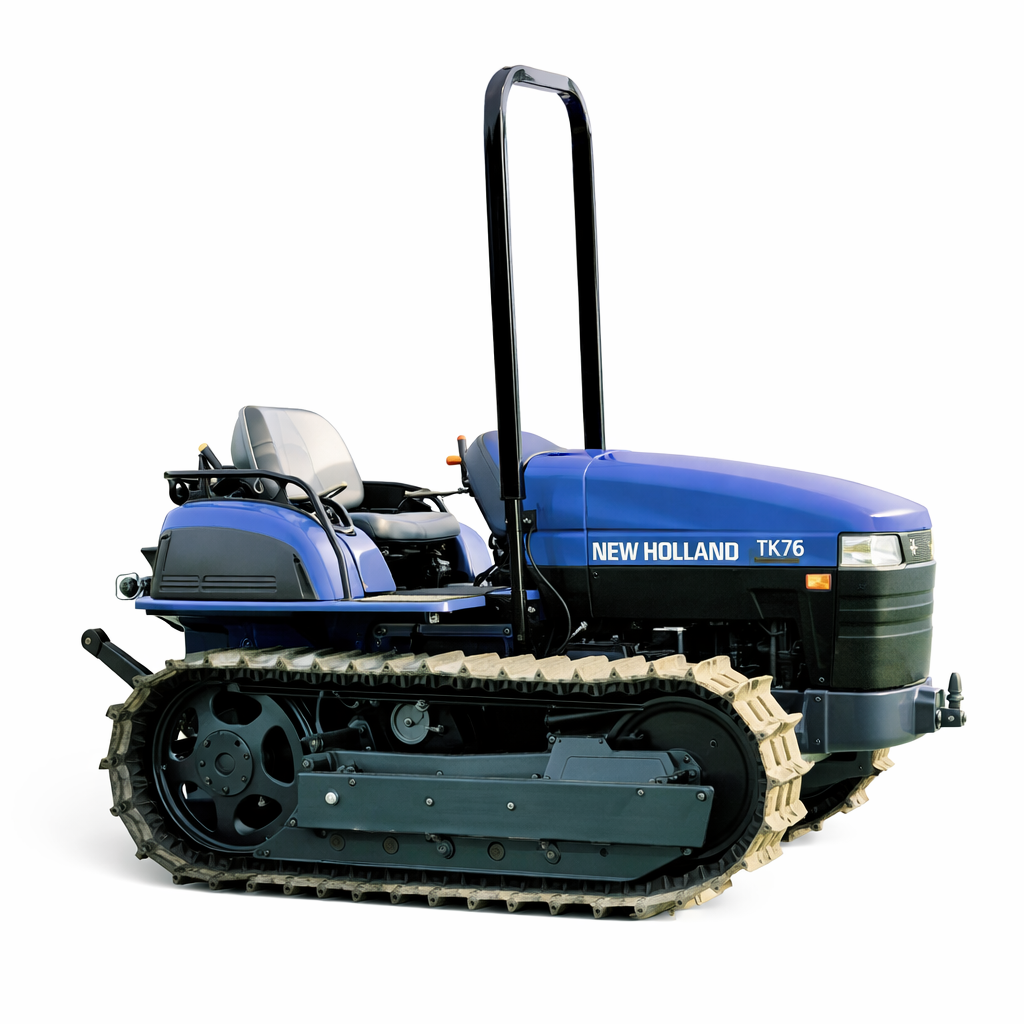

The New Holland TK76 is a powerful agricultural crawler tractor designed for demanding field work, orchard farming, and hillside agriculture. New Holland produced this model between 2000 and 2004 as part of the well-known TK Series, which focuses on traction, durability, and strong field performance.
Unlike conventional wheeled tractors, the TK76 uses crawler tracks instead of tires. Therefore, the tractor maintains excellent traction even on muddy soil or steep terrain. In addition, crawler tractors reduce soil compaction, which helps protect crops and improve long-term soil health.
The TK76 delivers 71 horsepower, which provides reliable performance for plowing, cultivation, spraying, and heavy agricultural work. Farmers often choose crawler tractors when stability and traction are critical.
Many global buyers who search for a Used Kubota Tractor also compare crawler tractors like the New Holland TK Series. Both Kubota and New Holland tractors are known for reliability, long service life, and excellent farming performance.
New Holland TK76 Specifications
| Item | Details |
|---|---|
| Model | New Holland TK76 |
| Series | TK Series |
| Tractor Type | Agricultural Crawler Tractor |
| Production | 2000 – 2004 |
| Manufacturer | New Holland |
| Drive Type | Crawler Tracks |
| ROPS | Two-post mid-mount folding ROPS |
Engine
The New Holland TK76 uses a durable diesel engine manufactured by Iveco. This engine provides consistent power and efficient fuel consumption, which helps farmers maintain productivity during long working hours.
| Engine Specification | Details |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | Diesel |
| Engine Displacement | 3.6 L |
| Cylinders | 4-cylinder |
| Engine Power | 71 hp |
| Engine Power (kW) | 52.9 kW |
| Fuel Tank Capacity | 31.7 gal (120 L) |
Furthermore, the engine produces strong torque at lower speeds. Therefore, the tractor performs well during heavy agricultural operations.
Transmission
New Holland equipped the TK76 with a reliable constant mesh transmission. As a result, operators can choose appropriate speeds for various field tasks.
| Transmission | Details |
|---|---|
| Transmission Type | Constant mesh |
| Forward Speeds | 8-speed |
| Drive System | Crawler |
The transmission provides smooth gear engagement and efficient power delivery. Consequently, farmers can operate implements effectively across different working conditions.
Hydraulic System
The hydraulic system supports a wide range of agricultural implements. Therefore, the TK76 remains a versatile machine for many farming operations.
| Hydraulic Feature | Specification |
|---|---|
| Rear Valves | 3 – 5 |
| Pump Flow | 12 gpm |
| Pump Flow (Metric) | 45.4 L/min |
This hydraulic capacity allows the tractor to operate equipment such as cultivators, sprayers, and tillage tools.
Three-Point Hitch
The three-point hitch system provides excellent implement control and lifting capability.
| Hitch Specification | Details |
|---|---|
| Rear Hitch Type | Category II / I |
| Control System | Top-link draft sensing |
| Rear Lift Capacity | 4078 lbs (1849 kg) |
Because of this strong lifting capacity, the TK76 handles heavy implements with ease.
Power Take-Off (PTO)
The PTO system provides power for many agricultural attachments.
| PTO Specification | Details |
|---|---|
| PTO Type | Independent |
| PTO Clutch | 280 mm dry disc |
| PTO Speeds | 540 / 1000 rpm |
| Engine RPM for 540 PTO | 2199 rpm |
| Engine RPM for 1000 PTO | 2381 rpm |
This flexibility allows farmers to operate many different implements efficiently.
Dimensions & Tracks
Crawler tractors provide strong stability and traction. The TK76 combines this advantage with a durable structure designed for demanding agricultural environments.
| Dimension | Measurement |
|---|---|
| Wheelbase | 62.4 inches |
| Wheelbase (cm) | 158 cm |
| Tractor Weight | 8460 lbs (3837 kg) |
| Track Width | 12.2 inches |
The crawler tracks distribute weight evenly across the soil surface. Consequently, the tractor maintains excellent grip while minimizing soil damage.
Electrical System
| Electrical Component | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Capacity | 45 amps |
| Battery Voltage | 12 V |
The electrical system supports reliable tractor operation and stable engine starting.
Why Farmers Choose New Holland Crawler Tractors
Farmers around the world choose crawler tractors when traction and stability are essential. The New Holland TK Series offers several important advantages.
Key benefits include:
-
Excellent traction on slopes and wet fields
-
Reduced soil compaction
-
Durable diesel engine performance
-
Strong hydraulic and PTO capability
-
Reliable construction for heavy farm work
Because of these features, crawler tractors remain popular in vineyards, orchards, and hillside agriculture.
Furthermore, international buyers who search online for a Used Kubota Tractor often compare Kubota models with New Holland crawler tractors. Both brands are widely respected in the agricultural machinery market.
