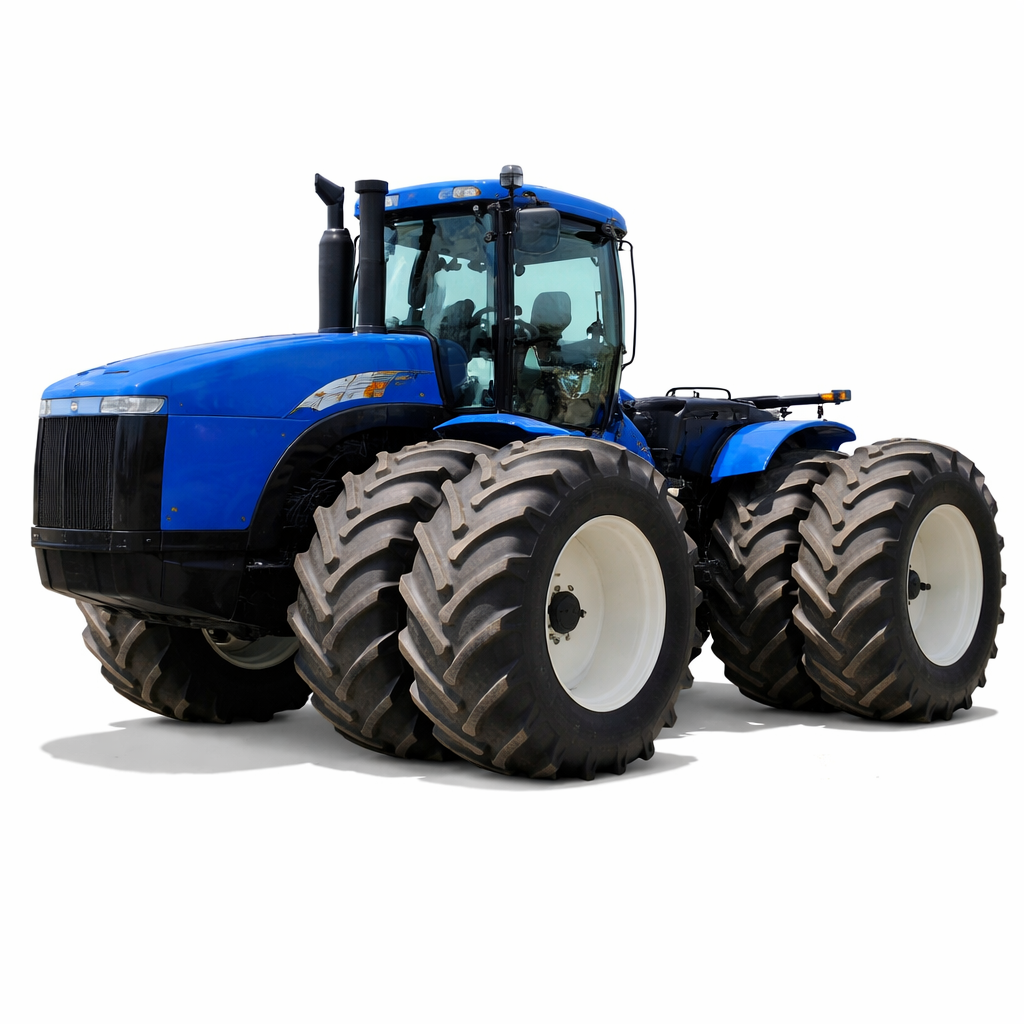

The New Holland TJ480 is a powerful four-wheel-drive tractor built for demanding agricultural operations. Farmers use this model for deep tillage, large-scale cultivation, and heavy field work. Because of its high horsepower and strong construction, the TJ480 remains a popular tractor among large farming operations worldwide.
New Holland produced the TJ480 between 2006 and 2007 as part of the TJ II Series. This model sits between the TJ430 and the TJ530 in the series lineup. Therefore, it offers strong performance while maintaining efficient fuel use.
The tractor was built in Fargo, North Dakota, USA, which is one of New Holland’s main production facilities for large articulated tractors. As a result, the TJ480 benefits from strong engineering and reliable mechanical components.
Many global buyers search online for Used Kubota Tractor models when they begin looking for agricultural equipment. However, farmers who operate large farms often need significantly more horsepower. Therefore, machines like the TJ480 become an excellent option for large-scale agricultural work.
EVERY FARM TRACTOR helps farmers worldwide find reliable tractors and agricultural machinery quickly and safely.
Production Information
| Item | Details |
|---|---|
| Model | New Holland TJ480 |
| Series | TJ II Series |
| Production Years | 2006 – 2007 |
| Manufacturer | New Holland |
| Tractor Type | Four-Wheel Drive (4WD) Tractor |
| Production Location | Fargo, North Dakota, USA |
Series Map
| Model | Engine Power |
|---|---|
| TJ430 | 430 hp |
| TJ480 | 480 hp |
| TJ530 | 530 hp |
Previous model generation: TJ450 (2002-2005)
Next generation: T9050 (2007-2010)
Engine Specifications
The TJ480 uses a large and powerful Cummins diesel engine designed for continuous heavy-duty agricultural work.
| Specification | Details |
|---|---|
| Engine Manufacturer | Cummins |
| Engine Type | Diesel |
| Cylinders | 6-cylinder |
| Displacement | 14.9 L (14,900 cc) |
| Rated Engine Power | 480 hp (357.9 kW) |
| Fuel Tank Capacity | 300 gal (1135.5 L) |
Because of the large engine displacement, the tractor delivers strong torque across a wide RPM range. Consequently, it performs well when pulling large implements across wide fields.
Transmission
The TJ480 uses a heavy-duty transmission system designed for high horsepower tractors.
| Transmission Type | Description |
|---|---|
| 16-speed Full Power Shift | Smooth gear shifting without stopping |
The power shift transmission improves operator efficiency. In addition, it allows the tractor to maintain strong pulling performance under heavy load conditions.
Power Performance
The TJ480 offers impressive power for large-scale farming equipment and implements.
| Power Category | Output |
|---|---|
| Engine Power | 480 hp (357.9 kW) |
| PTO Power (claimed) | 480 hp |
| Drawbar Power (tested) | 391.15 hp |
| PTO Power (tested) | 483.15 hp |
Because of this high output, the tractor easily handles large cultivators, seeders, and heavy tillage tools.
Hydraulic System
The TJ480 provides a strong hydraulic system to support modern agricultural equipment.
| Specification | Details |
|---|---|
| Hydraulic Type | Closed Center Load Sensing (CCLS) |
| Pressure | 2000 psi (137.9 bar) |
| Valves | 4 to 9 |
| Pump Flow | 33 gpm (124.9 lpm) |
| Total Flow | 40 gpm (151.4 lpm) |
| Optional Flow | 55 gpm |
| MegaFlow Option | 90 gpm |
Because of this hydraulic capacity, operators can run several hydraulic implements simultaneously.
Power Take-Off (PTO)
| Specification | Details |
|---|---|
| PTO Type | Independent |
| PTO Speed | 1000 rpm (optional) |
The independent PTO system allows efficient power delivery to implements such as grain augers, pumps, and mowers.
Hitch System
| Specification | Details |
|---|---|
| Rear Hitch Type | Category IVN (optional) |
| Rear Lift Capacity | 19,620 lbs (8,899 kg) |
This heavy-duty hitch supports large agricultural attachments and implements.
Dimensions and Tires
The TJ480 features a large chassis designed for stability, traction, and heavy work.
| Specification | Details |
|---|---|
| Wheelbase | 154 in (391 cm) |
| Weight | 44,470 lbs (20,171 kg) |
| Front Tires | 20.8R42 |
| Rear Tires | 20.8R42 |
Large tires provide excellent traction while reducing soil compaction during field operations.
Mechanical Features
| Feature | Description |
|---|---|
| Drive System | Four-wheel drive |
| Steering | Hydrostatic power steering |
| Brakes | Integral hydraulic wet disc brakes |
| Cab | Standard cab with heating and air conditioning |
The comfortable cab allows operators to work for long hours. In addition, the controls remain easy to use.
Electrical System
| Specification | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 150 amps (175 optional) |
| Batteries | 2 |
| Battery Voltage | 12 V |
| Battery Capacity | 1000 AH |
Why Farmers Choose the New Holland TJ480
The TJ480 remains a popular tractor for large-scale farming operations across the world.
First, the tractor offers extremely high horsepower, which suits wide agricultural equipment.
Second, the Cummins engine delivers reliable power and long-term durability.
Third, the advanced hydraulic system supports modern farming implements.
Therefore, many international buyers continue to search for this model in the used tractor market.
Even farmers who search for Used Kubota Tractor models often consider large tractors like the TJ480 when they expand their operations.
