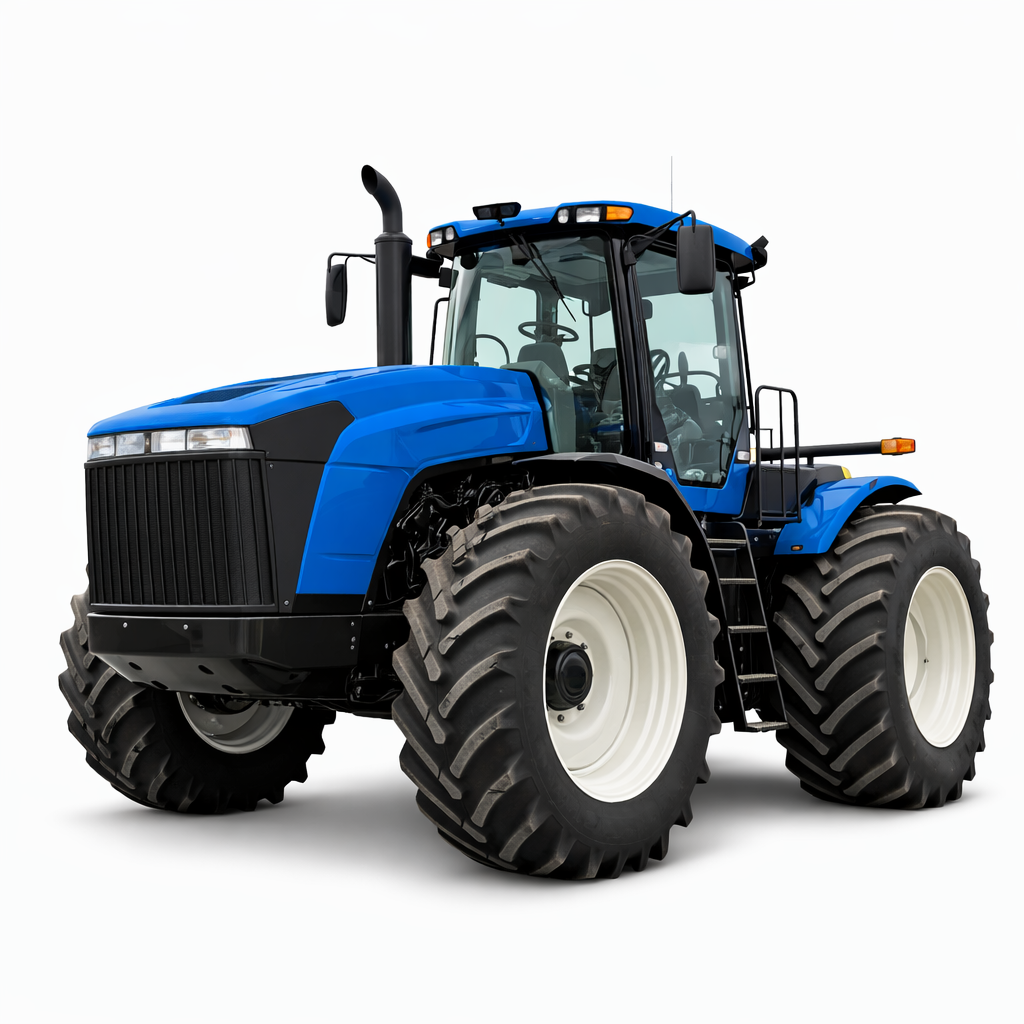

The New Holland TJ430 is a powerful four-wheel drive tractor designed for demanding agricultural operations. Farmers use this model for large-scale field preparation, heavy tillage, and commercial farming tasks. Because of its strong engine and durable construction, the TJ430 remains popular in many international farming markets.
The model belongs to the TJ II Series, which New Holland produced in the mid-2000s. It stands between the TJ380 and TJ480 in the lineup. Therefore, it offers an excellent balance between power and efficiency.
Large farms often choose the TJ430 for wide implements such as cultivators, seeders, and heavy discs. In addition, its advanced hydraulic system supports modern agricultural attachments. As a result, many global buyers still search for this tractor in the used market.
Although many users search for Used Kubota Tractor models online, large-scale farmers often compare those tractors with high-horsepower machines like the TJ430 when they need more pulling capacity.
EVERY FARM TRACTOR exports reliable Japanese tractors and agricultural machinery worldwide. Our team helps farmers and agricultural companies find the right equipment quickly and safely.
Production Information
| Item | Details |
|---|---|
| Model | New Holland TJ430 |
| Series | TJ II Series |
| Production Years | 2006 – 2007 |
| Manufacturer | New Holland |
| Tractor Type | Four-Wheel Drive (4WD) Tractor |
| Assembly Location | Fargo, North Dakota, USA |
Series Map
| Model | Engine Power |
|---|---|
| TJ380 | 380 hp |
| TJ430 | 430 hp |
| TJ480 | 480 hp |
Previous model: TJ425 (2002-2005)
Next generation: T9040 (2007-2010)
Engine Specifications
The TJ430 uses a powerful Iveco diesel engine designed for heavy agricultural workloads. This engine delivers strong torque and stable performance even during long field operations.
| Specification | Details |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | Diesel |
| Cylinders | 6-cylinder |
| Displacement | 12.9 L (12,900 cc) |
| Rated Engine Power | 430 hp (320.7 kW) |
| Fuel Tank Capacity | 300 gal (1135.5 L) |
Because of the large displacement and efficient fuel system, the engine maintains high performance under continuous load. Therefore, farmers can complete demanding field work efficiently.
Transmission
New Holland equipped the TJ430 with strong transmission options that support heavy towing and field work.
| Transmission Type | Description |
|---|---|
| 16-speed Full Power Shift | Smooth gear changes without stopping |
| 24-speed Full Synchro Shift | Flexible gear selection for field and transport |
These transmissions allow operators to select the best speed for different field conditions. As a result, productivity improves during planting, plowing, and hauling.
Power Performance
The TJ430 delivers impressive pulling and PTO power. Consequently, it works well with wide implements and heavy equipment.
| Power Category | Output |
|---|---|
| Engine Power | 430 hp (320.7 kW) |
| PTO Power (claimed) | 430 hp |
| Drawbar Power (tested) | 351.28 hp |
| PTO Power (tested) | 438.97 hp |
This performance level makes the TJ430 suitable for large agricultural operations and commercial farming.
Hydraulic System
Modern implements require strong hydraulic flow. Fortunately, the TJ430 offers a powerful hydraulic system.
| Specification | Details |
|---|---|
| Hydraulic Type | Closed Center Load Sensing (CCLS) |
| Pressure | 2000 psi (137.9 bar) |
| Valves | 4 to 9 |
| Pump Flow | 33 gpm (124.9 lpm) |
| Total Flow | 40 gpm (151.4 lpm) |
| Optional Flow | 55 gpm |
| MegaFlow Option | 90 gpm |
Because of this system, operators can run advanced equipment smoothly.
PTO (Power Take-Off)
| Specification | Details |
|---|---|
| PTO Type | Independent |
| Rear PTO Speed | 1000 rpm (optional) |
The independent PTO allows smooth power transfer to implements such as grain augers or large mowers.
Hitch System
| Specification | Details |
|---|---|
| Rear Hitch Type | Category IVN (optional) |
| Lift Capacity (24″/610mm) | 19,620 lbs (8,899 kg) |
This strong hitch allows the tractor to handle very large agricultural implements.
Dimensions and Tires
The TJ430 features a large chassis designed for stability and traction in large fields.
| Specification | Details |
|---|---|
| Wheelbase | 154 in (391 cm) |
| Weight | 41,605 lbs (18,872 kg) |
| Front Tire | 20.8R42 |
| Rear Tire | 20.8R42 |
The wide tires improve traction while reducing soil compaction.
Mechanical Features
| Feature | Description |
|---|---|
| Drive System | Four-wheel drive (4WD) |
| Steering | Hydrostatic power steering |
| Brakes | Hydraulic wet disc brakes |
| Cab | Standard cab with heat and air conditioning |
Operators benefit from excellent comfort and visibility. Therefore, they can work long hours without fatigue.
Electrical System
| Specification | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 175 amps |
| Batteries | 2 |
| Battery Voltage | 12 V |
| Battery Capacity | 1000 AH |
Why Global Farmers Choose the New Holland TJ430
Many farmers around the world prefer the TJ430 for several reasons.
First, it offers extremely high horsepower, which suits large farms.
Second, its durable drivetrain and engine ensure reliable operation.
Third, the strong hydraulic system supports modern implements.
Therefore, the tractor remains attractive in the global used equipment market.
Even buyers searching online for Used Kubota Tractor models often explore machines like the TJ430 when they need more horsepower for commercial farming.
