🚜 Massey Ferguson 2235 – 80HP Compact Utility Tractor (2200 Series)
EVERY FARM TRACTOR has been exporting high-quality Japanese used tractors and agricultural machinery to over 100 countries since 2006.
The Massey Ferguson 2235 is the highest-powered model in the later 2200 Series (2002–2004), delivering outstanding performance for demanding agricultural and commercial applications.
Powered by a strong Perkins 4.2L 4-cylinder diesel engine, the MF 2235 offers 80HP, advanced transmission options, and a durable hydraulic system suitable for global farming markets.
🔰 Overview
| Item | Specification |
|---|---|
| Model | Massey Ferguson 2235 |
| Series | 2200 Series |
| Production Years | 2002 – 2004 |
| Category | Compact Utility Tractor |
| Manufacturer | Massey Ferguson |
| Drive Options | 2WD or 4WD |
| Platform Options | Cab (standard) / Two-post ROPS |
Series Lineup
| Model | Production | Power |
|---|---|---|
| 2440 | 2005 – 2007 | — |
| 2225 | 2002 – 2004 | 50.7 kW |
| 2235 | 2002 – 2004 | 80 HP (59.7 kW) |
| 2230 | 1999 – 2001 | 54.4 kW |
The MF 2235 improves on the 2225 with higher horsepower while maintaining the same compact and maneuverable chassis.
🔧 Engine Specifications
| Item | Details |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Cylinders | 4-cylinder |
| Displacement | 4.2 L (4200 cc) |
| Rated Power | 80 HP (59.7 kW) |
| Fuel Tank (Standard) | 17.7 gal (67.0 L) |
| Fuel Tank (Optional) | 26.4 gal (99.9 L) |
| Cooling | Liquid-cooled |
Engine Highlights
The Perkins 4.2L diesel engine provides:
-
High torque output for heavy fieldwork
-
Smooth 4-cylinder performance
-
Excellent durability for continuous operation
-
Reliable parts availability worldwide
This engine is ideal for plowing, baling, loader work, and large PTO-driven implements.
⚙️ Transmission Options
| Item | Specification |
|---|---|
| Transmission Type | 15-speed Sync Shuttle |
| Optional Transmission | 30-speed Two-speed Power Shift |
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 RPM (1.375 in shaft) |
| PTO Clutch | Electro-hydraulic Wet Disc |
The 30-speed option increases productivity during both field and transport operations.
🛠 Mechanical Features
| Feature | Details |
|---|---|
| Drive System | 2WD or 4WD |
| Differential Lock | Electro-hydraulic |
| Steering | Power Steering |
| Brakes | Wet Disc Brakes |
| Trailer Brakes | Hydraulic (Optional) |
| Cab | Standard with heater |
| Air Conditioning | Optional |
| ROPS | Two-post ROPS available |
The electro-hydraulic differential lock enhances traction in soft or uneven soil.
💧 Hydraulics
| Item | Specification |
|---|---|
| Pressure | 2611 psi (180 bar) |
| Pump Flow | 14.3 gpm (54.1 lpm) |
| Steering Flow | 7.9 gpm (29.9 lpm) |
| Rear Hitch | Category II |
| Hitch Control | Position & Draft Control |
| Rear Lift Capacity | 4,630 lbs (2,100 kg) |
| Maximum Lift (Optional) | 7,496 lbs (3,400 kg) |
The Category II hitch supports heavier commercial-grade implements.
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
📏 Dimensions & Weight (4WD)
| Item | Specification |
|---|---|
| Wheelbase | 84.8 inches (215 cm) |
| Weight | 6,614 – 6,834 lbs |
The balanced weight distribution improves traction and stability during loader work and heavy pulling tasks.

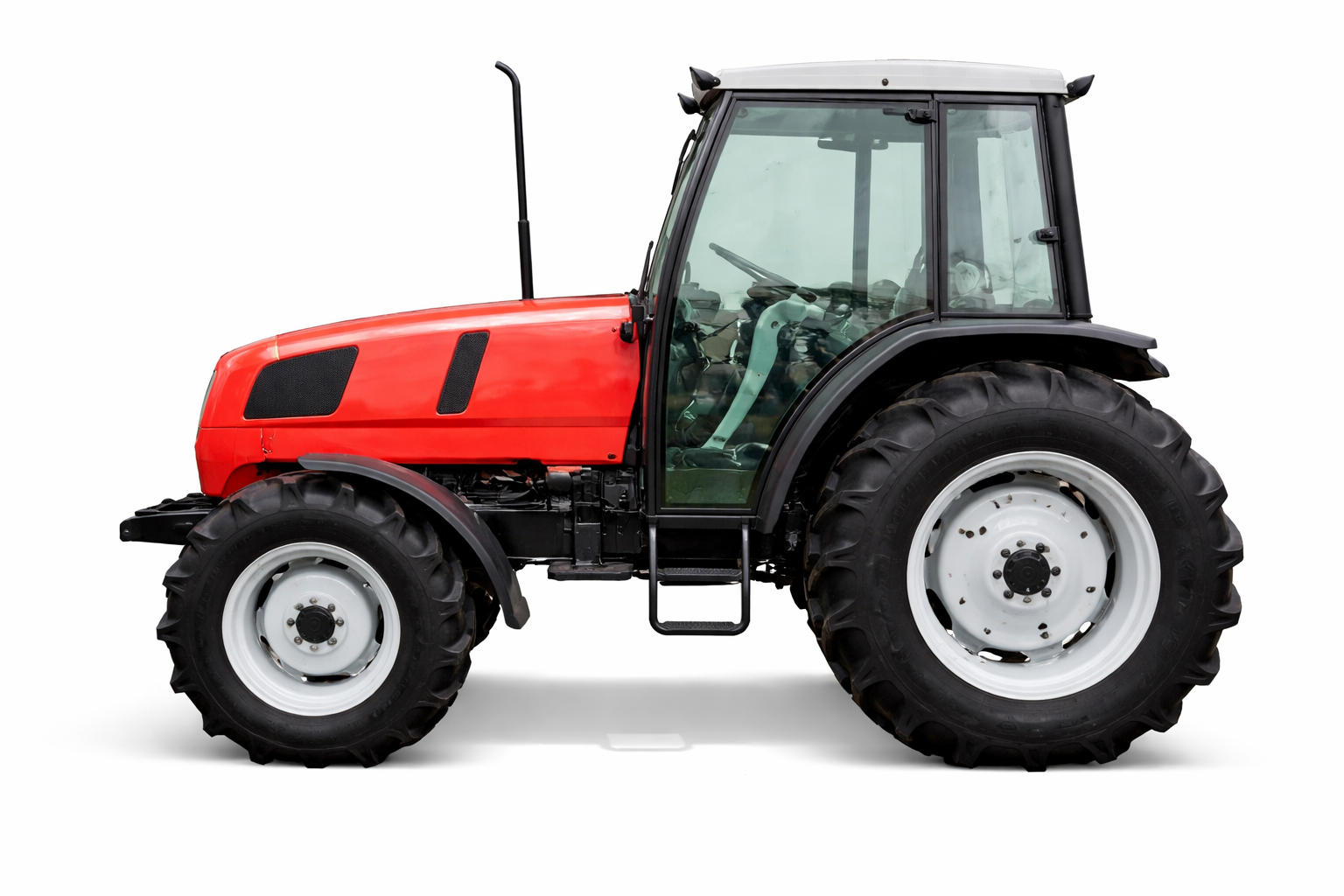

📸 Photos
Official configuration may vary depending on cab or ROPS setup.
EVERY FARM TRACTOR can provide detailed stock photos upon request.
🌍 Why Choose Massey Ferguson 2235 from EVERY FARM TRACTOR?
-
✔ Powerful 80HP Perkins 4.2L engine
-
✔ 15-speed or 30-speed transmission options
-
✔ Strong Category II hitch
-
✔ Durable 2WD or 4WD configurations
-
✔ Comfortable cab with heating option
-
✔ Fully inspected before export
-
✔ Worldwide shipping support (RORO & Container)
We supply carefully selected used Massey Ferguson tractors directly from Japan with professional export and logistics support.
