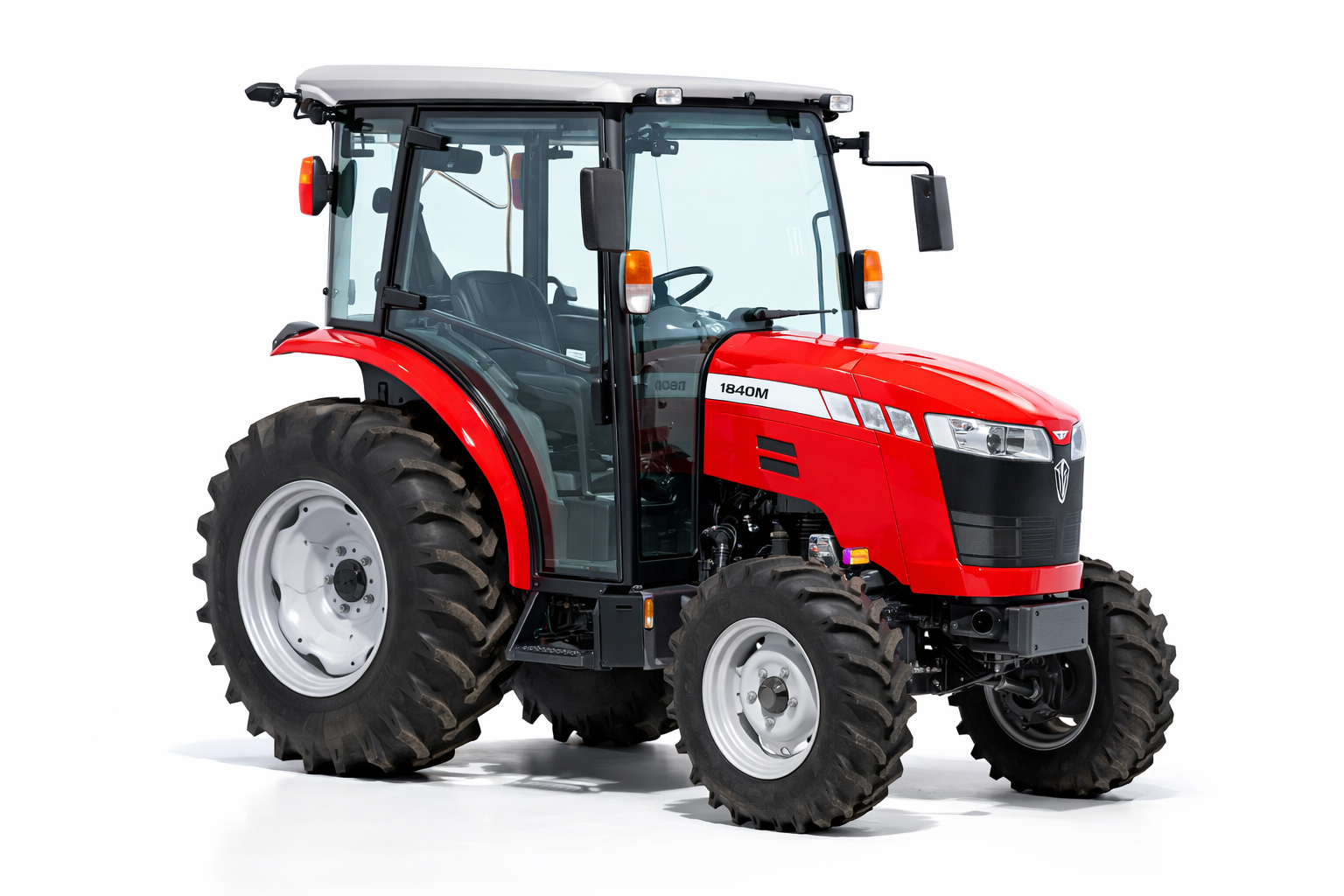

🚜 Massey Ferguson 1840M – 39.4HP Premium Compact Tractor (2020–2024)
EVERY FARM TRACTOR has exported Japanese used tractors and agricultural equipment to more than 100 countries since 2006.
Here is the complete specification guide for the Massey Ferguson 1840M, a high-performance compact utility tractor from the 1800M Series.
🚜 Massey Ferguson 1840M Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1840M |
| Series | 1800M Series |
| Production | 2020 – 2024 |
| Manufacturer | Massey Ferguson (AGCO) |
| Type | Compact Utility Tractor |
| Drive | 4WD (Standard) |
| Original Price (2020) | $26,945 (Gear ROPS) / $35,365 (Hydro Cab) |
🔹 Series Map
| Model | Engine Power |
|---|---|
| 1835M | 36.2 HP |
| 1840M | 39.4 HP |
| 1M.40 (2025–2026) | Successor |
The 1840M is the most powerful model in the 1800M Series, offering professional-grade hydraulics and comfort features.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.8 L |
| Fuel Tank Capacity | 10.6 gal (40.1 L) |
| Cooling | Liquid-cooled |
The 1.8L Iseki diesel engine provides strong torque and reliable fuel efficiency, ideal for continuous operation.
⚙ Transmission Options
| Transmission Type | Details |
|---|---|
| 12-speed Power Shuttle | Clutchless directional change |
| Hydrostatic (HST) | Smooth variable-speed control |
| Drive | Four-wheel drive |
The power shuttle version increases productivity in loader work, while hydrostatic transmission ensures precision.
💪 Power Output
| Item | Output |
|---|---|
| Engine | 39.4 HP (29.4 kW) |
| Gear PTO (claimed) | 30 HP (22.4 kW) |
| Hydro PTO (claimed) | 27.9 HP (20.8 kW) |
High PTO output supports demanding implements such as heavy rotary cutters and snow blowers.
🛠 Mechanical Features
| Feature | Specification |
|---|---|
| Drive Type | Four-wheel drive |
| Steering | Power steering |
| Brakes | Wet disc |
| ROPS | Two-post folding |
| Cab | Optional with air-conditioning |
The optional cab increases operator comfort in hot or cold climates.
💧 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Implement Pump Flow | 12.6 gpm (47.7 lpm) |
| Steering Flow | 7.0 gpm (26.5 lpm) |
The higher hydraulic capacity compared to E-Series models allows efficient loader and backhoe use.
🔗 3-Point Hitch
| Item | Specification |
|---|---|
| Rear Type | Category I |
| Control | Position control (Draft optional) |
| Rear Lift (at ends) | 2,800 lbs (1,270 kg) |
| Rear Lift (at 24″/610mm) | 2,535 lbs (1,149 kg) |
This strong lift capacity supports heavier implements and professional farm applications.
🔄 Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| PTO Speed | 540 rpm (1.375″) |
| Mid PTO | Optional |
| Mid PTO Speed | 1916 rpm |
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Weight | 3,472 – 3,858 lbs |
| Front Tire | 8-16 |
| Rear Tire | 13.6-24 |
The balanced chassis ensures stability and traction across various terrains.
🧰 Available Attachments
| Attachment | Application |
|---|---|
| Front-End Loader | Material handling |
| Backhoe | Digging and trenching |
| Rotary Cutter | Field mowing |
| Snow Blower | Winter maintenance |
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
🌍 Why Choose Massey Ferguson 1840M?
-
Powerful 39.4HP Iseki diesel engine
-
Higher hydraulic flow for demanding tasks
-
Independent PTO
-
Optional factory cab with AC
-
Suitable for agriculture, landscaping, and construction
The Massey Ferguson 1840M delivers premium compact tractor performance in a durable, efficient package.
