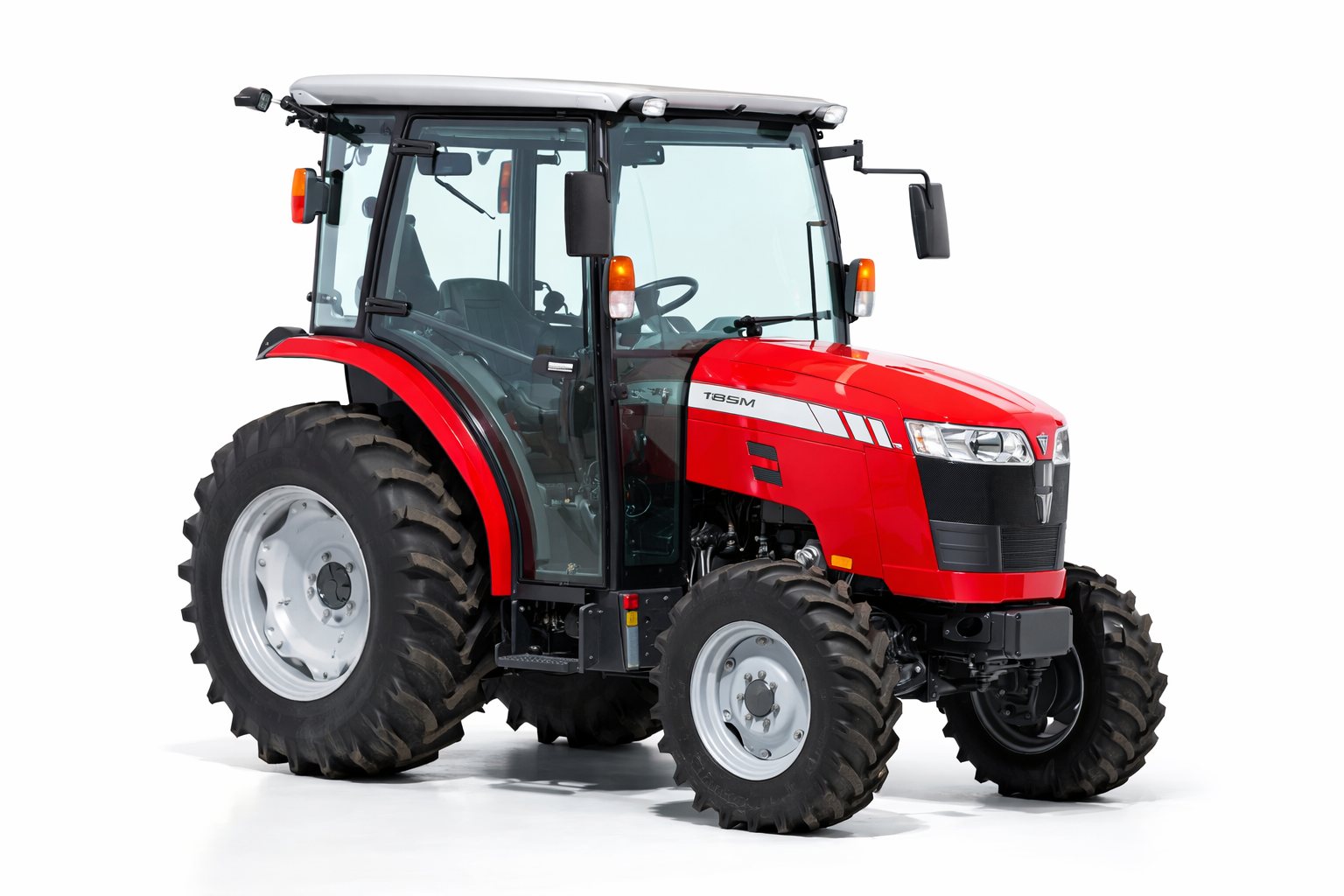

🚜 Massey Ferguson 1835M – 36.2HP Compact Utility Tractor (2020–2024)
EVERY FARM TRACTOR has exported high-quality Japanese used tractors and agricultural machinery to more than 100 countries since 2006.
Below is the complete specification guide for the Massey Ferguson 1835M, a premium compact utility tractor in the 1800M Series.
🚜 Massey Ferguson 1835M Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1835M |
| Series | 1800M Series |
| Production | 2020 – 2024 |
| Manufacturer | Massey Ferguson (AGCO) |
| Type | Compact Utility Tractor |
| Drive | 4WD (Four-Wheel Drive) |
| Original Price (2020) | $24,055 (Gear ROPS) / $32,774 (Hydro Cab) |
🔹 Series Map
| Model | Engine Power |
|---|---|
| 1835M | 36.2 HP |
| 1840M | 39.4 HP |
| 1M.35 (2025–2026) | Successor |
The 1835M offers higher performance, improved hydraulics, and more comfort compared to the E-Series models, making it ideal for professional applications.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.8 L |
| Fuel Tank Capacity | 10.6 gal (40.1 L) |
| Cooling | Liquid-cooled |
The 1.8L Iseki diesel engine delivers smooth power, strong torque, and reliable fuel efficiency for demanding tasks.
⚙ Transmission Options
| Transmission Type | Details |
|---|---|
| 12-speed Power Shuttle | Clutch-free forward/reverse shifting |
| Hydrostatic (HST) | Smooth variable speed control |
| Drive | 4WD standard |
The power shuttle transmission is ideal for loader-intensive work, while the hydrostatic model provides precise control for landscaping and mowing.
💪 Power Output
| Item | Output |
|---|---|
| Engine | 36.2 HP (27.0 kW) |
| Gear PTO (claimed) | 27.5 HP (20.5 kW) |
| Hydro PTO (claimed) | 25.7 HP (19.2 kW) |
The PTO performance supports rotary cutters, tillers, snow blowers, and other powered implements.
🛠 Mechanical Features
| Feature | Specification |
|---|---|
| Drive Type | Four-wheel drive |
| Steering | Power steering |
| Brakes | Wet disc |
| ROPS | Two-post folding |
| Cab | Optional with air-conditioning |
The optional factory cab enhances comfort and productivity in all-weather conditions.
💧 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Implement Pump Flow | 12.6 gpm (47.7 lpm) |
| Steering Flow | 7.0 gpm (26.5 lpm) |
The strong hydraulic capacity allows efficient operation of loaders and backhoes.
🔗 3-Point Hitch
| Item | Specification |
|---|---|
| Rear Type | Category I |
| Control | Position control (Draft optional) |
| Rear Lift (at ends) | 2,800 lbs (1,270 kg) |
| Rear Lift (at 24″/610mm) | 2,535 lbs (1,149 kg) |
This lift capacity supports heavier Category I implements compared to entry-level compact tractors.
🔄 Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO Speed | 540 rpm (1.375″) |
| Mid PTO | Optional |
| Mid PTO Speed | 1916 rpm |
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Weight | 3,472 – 3,858 lbs |
| Front Tire | 8-16 |
| Rear Tire | 13.6-24 |
The balanced frame provides stability while maintaining compact maneuverability.
🧰 Available Attachments
| Attachment | Application |
|---|---|
| Front-End Loader | Material handling |
| Backhoe | Digging and trenching |
| Rotary Cutter | Field maintenance |
| Snow Blower | Winter operations |
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
🌍 Why Choose Massey Ferguson 1835M?
-
Strong 36.2HP Iseki diesel engine
-
Higher hydraulic capacity than E-Series
-
Power shuttle transmission for productivity
-
Optional climate-controlled cab
-
Suitable for farming, landscaping, and construction
The Massey Ferguson 1835M combines professional-level features with compact size, making it a reliable and versatile choice.
