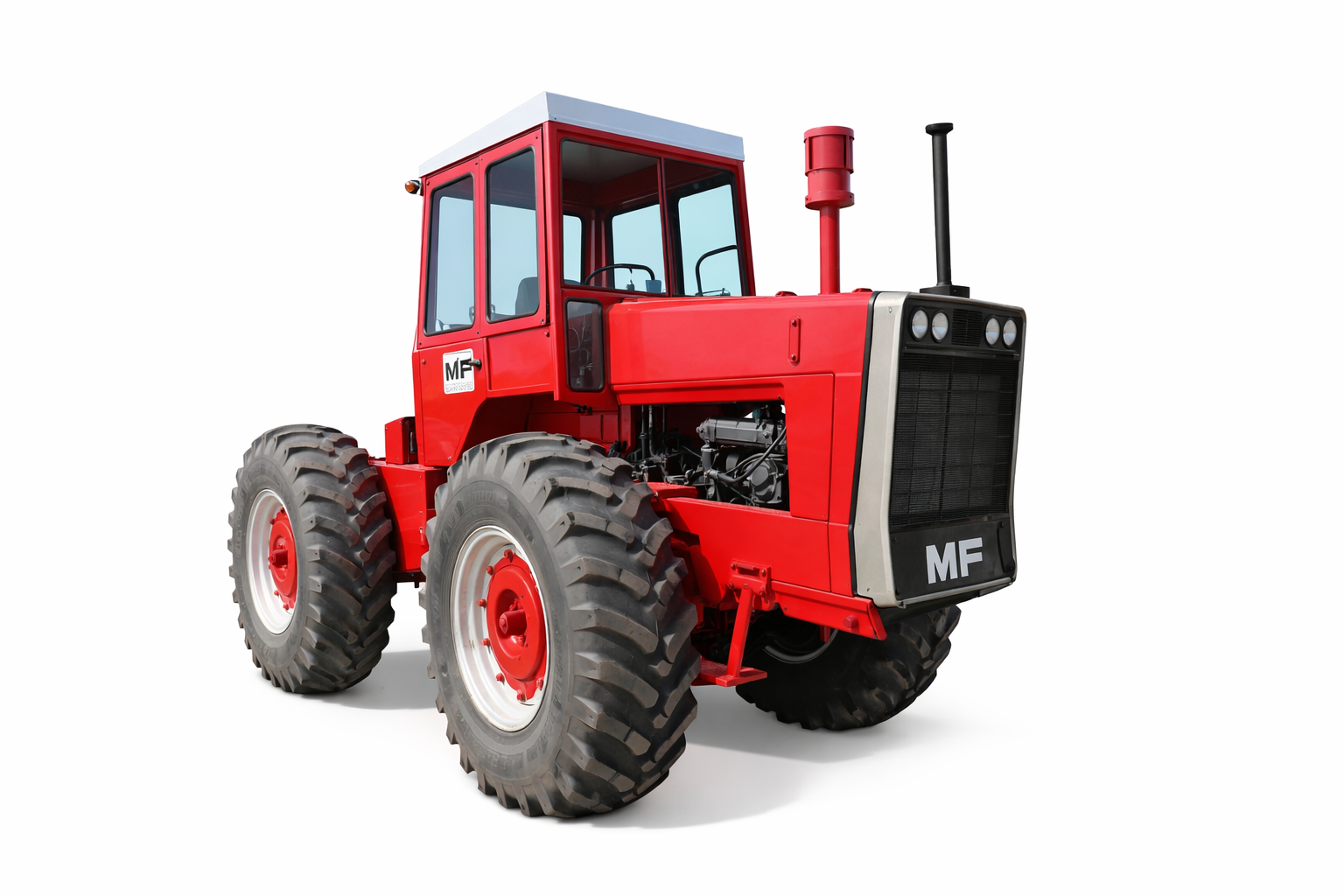

🚜 Massey Ferguson 1800 – 210HP 4WD Articulated Tractor (1971–1974)
EVERY FARM TRACTOR has exported reliable Japanese used tractors and agricultural machinery to over 100 countries since 2006.
Here is the complete specification guide for the Massey Ferguson 1800, a powerful articulated four-wheel drive tractor built in the USA.
🚜 Massey Ferguson 1800 Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1800 |
| Production Years | 1971 – 1974 |
| Manufacturer | Massey Ferguson |
| Built In | Des Moines, Iowa, USA |
| Type | Four-Wheel Drive (4WD) Tractor |
| Steering | Articulated power steering |
| Original Price (1974) | $21,100 |
🔹 Series Map
| Model | Engine Power |
|---|---|
| 1500 | 180.0 HP |
| 1800 | 210.0 HP |
| 1805 (1974–1977) | Higher-output successor |
The MF 1800 was designed for large-scale farming operations requiring high horsepower and strong drawbar performance.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Caterpillar |
| Engine Type | 8-cylinder diesel |
| Displacement | 10.4 L |
| Aspiration | Naturally aspirated |
| Cooling | Liquid-cooled |
The 10.4L Caterpillar diesel engine provides massive torque and durability, making it suitable for heavy tillage, deep ripping, and large field implements.
⚙ Transmission
| Item | Specification |
|---|---|
| Type | 12-speed gear transmission |
| Drive | Full-time 4WD |
| Steering | Articulated power steering |
The 12-speed gear transmission offers a wide working speed range for both field and transport operations.
💪 Power Output
| Item | Output |
|---|---|
| Engine (Gross) | 210 HP (156.6 kW) |
| Drawbar (claimed) | 180 HP (134.2 kW) |
| Drawbar (tested) | 171.37 HP (127.8 kW) |
This high drawbar power makes the MF 1800 ideal for pulling large plows and cultivators.
🛠 Mechanical Features
| Feature | Specification |
|---|---|
| Drive Type | Four-wheel drive |
| Steering | Articulated power steering |
| Brakes | Hydraulic internal expanding shoe |
| Cab | Standard |
| Climate Control | Optional heat and air-conditioning |
The articulated steering design improves maneuverability despite the tractor’s large size.
⛽ Capacity
| Item | Capacity |
|---|---|
| Fuel Tank | 120 gal (454.2 L) |
| Hydraulic System | 15 gal (56.8 L) |
The large fuel tank supports long operating hours in wide agricultural fields.
💧 Hydraulics
| Item | Specification |
|---|---|
| Type | Open center |
| Hydraulic Capacity | 15 gal (56.8 L) |
| Valves | 2 or 3 |
| Pump Flow | 25 gpm (94.6 lpm) |
| Total Flow | 50 gpm (189.2 lpm) |
| Steering Flow | 25 gpm (94.6 lpm) |
The high hydraulic flow ensures efficient operation of large implements and attachments.
🔄 Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | Optional |
| PTO Speed | 1000 rpm |
The optional PTO enables operation of heavy-duty powered implements.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 120 in (304 cm) |
| Weight | 17,330 lbs (7,860 kg) |
| Front Tire | 23.1-30 |
| Rear Tire | 23.1-30 |
The large tire setup enhances traction and field stability.
🔢 Serial Numbers
| Year | Starting Serial Number |
|---|---|
| 1971 | 9C001007 |
| 1972 | 9C001912 |
| 1973 | 9C002463 |
| 1974 | 9C003184 |
📍 Serial number plate location: Instrument panel.
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 60 amps |
| Batteries | 2 |
| Battery Voltage | 12V |
🌍 Why Choose Massey Ferguson 1800?
-
Powerful 210HP Caterpillar diesel engine
-
Articulated steering for improved maneuverability
-
High drawbar performance
-
Large fuel capacity for extended operation
-
Built for large-scale agriculture
The Massey Ferguson 1800 remains a strong choice for heavy farming applications, especially in wide-field grain production and deep tillage work.
