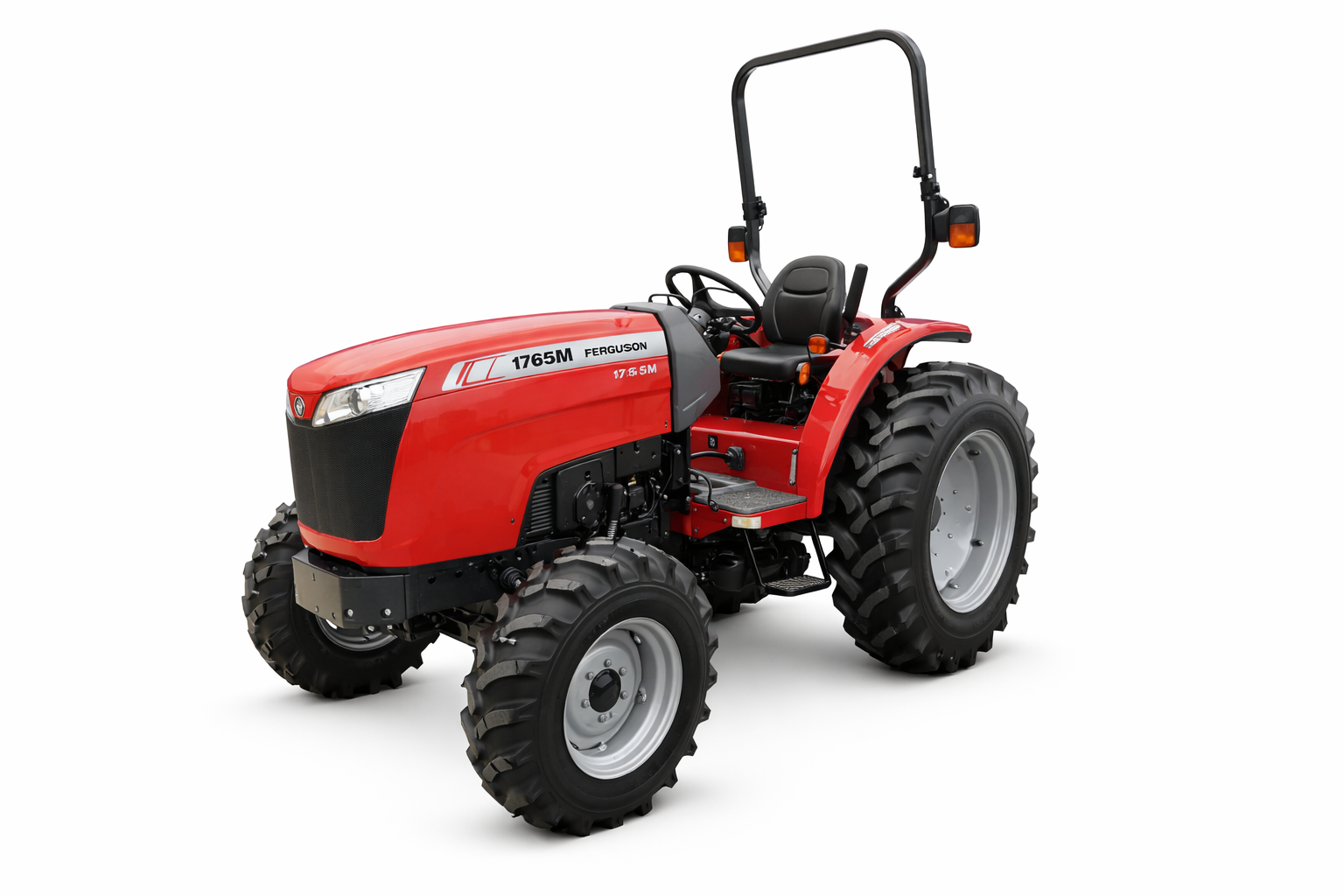

🚜 Massey Ferguson 1765M – 67HP Compact Utility Tractor (1700M Series)
EVERY FARM TRACTOR has exported high-quality Japanese used tractors and agricultural machinery to more than 100 countries since 2006.
Below is the complete specification guide for the Massey Ferguson 1765M, a high-performance compact utility tractor in the 1700M Series.
🚜 Massey Ferguson 1765M Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 1765M |
| Series | 1700M Series |
| Production | 2018 – Present |
| Manufacturer | Massey Ferguson (AGCO) |
| Type | Compact Utility Tractor |
| Drive | 4WD (Four-Wheel Drive) |
🔹 Series Map
| Model | Power Output |
|---|---|
| 1760M | 44.7 kW (59.9 HP) |
| 1765M | 50.0 kW (67 HP) |
The 1765M is the top model in the 1700M compact utility lineup, delivering increased horsepower and improved lifting capacity. It is suitable for medium-scale farming, loader work, landscaping, orchard management, and light construction.
🔧 Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Shibaura |
| Engine Type | 4-cylinder diesel |
| Displacement | 2.2 L |
| Fuel Tank Capacity | 14 gal (53.0 L) |
| Cooling System | Liquid-cooled |
| Aspiration | Naturally aspirated |
The 2.2L Shibaura diesel engine delivers strong torque and consistent fuel efficiency, making it reliable for long working hours under demanding conditions.
⚙ Transmission Options
| Transmission Type | Details |
|---|---|
| 12-speed Shuttle | Mechanical shuttle transmission |
| Hydrostatic (HST) | Smooth variable-speed control |
| Drive System | 4WD standard |
The shuttle transmission is ideal for heavy-duty tasks and repeated forward-reverse loader operations. The hydrostatic version provides precision speed control for mowing and delicate fieldwork.
💪 Power Output
| Item | Output |
|---|---|
| Engine Gross Power | 67 HP (50.0 kW) |
This power class allows the tractor to operate heavy implements such as rotary cutters, tillers, post hole diggers, and balers efficiently.
🛠 Mechanical Features
| Feature | Specification |
|---|---|
| Drive Type | Four-wheel drive |
| Final Drives | Bull gear |
| Differential Lock | Rear standard |
| Steering | Power steering |
| Brakes | Wet disc |
| ROPS | Two-post folding |
| Cab | Optional (Deluxe cab available) |
The optional deluxe cab improves operator comfort, visibility, and climate control for professional use.
💧 Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Rear Valves | 2 optional |
| Mid Valves | 2 |
| Pump Flow | 12.7 gpm (48.1 lpm) |
The hydraulic system provides strong flow capacity, ensuring smooth loader and implement operation.
🔗 3-Point Hitch
| Item | Specification |
|---|---|
| Hitch Category | Category I |
| Control | Position & Draft Control |
| Gear Rear Lift (at ends) | 3,483 lbs (1,579 kg) |
| Hydro Rear Lift (at ends) | 3,527 lbs (1,599 kg) |
| Rear Arms | Telescopic draft link ends |
The high lifting capacity supports heavy rear implements while maintaining balance and stability.
🔄 Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO Speed | 540 rpm (1.375″) |
| Mid PTO | Optional |
| Mid PTO Speed | 1916 rpm |
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 77.2 in (196 cm) |
| Weight | 3,968 – 4,674 lbs |
| Front Tire | 9.5-16 |
| Rear Tire | 13.6-28 |
The well-balanced wheelbase and weight provide excellent traction and stability in various terrains.
🔌 Electrical
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
🌍 Why Choose Massey Ferguson 1765M?
-
Powerful 67HP diesel engine
-
Strong 3-point lift capacity
-
Reliable 4WD traction
-
Efficient hydraulic system
-
Comfortable operator options
The Massey Ferguson 1765M is an ideal solution for farmers who require more power than standard compact tractors but still want maneuverability and efficiency.
