Used New Holland Tractor – TD5050HC High-Clearance Full Specifications & Export Guide
EVERY FARM TRACTOR has exported Japanese used tractors and agricultural machinery to over 100 countries since 2006.
If you are searching for a powerful and specialized Used New Holland Tractor, the TD5050HC High-Clearance model is an outstanding solution for row crops and specialty farming.
Because it combines elevated ground clearance, strong Iveco engine performance, and durable transmission design, the TD5050HC delivers efficiency in demanding agricultural environments.

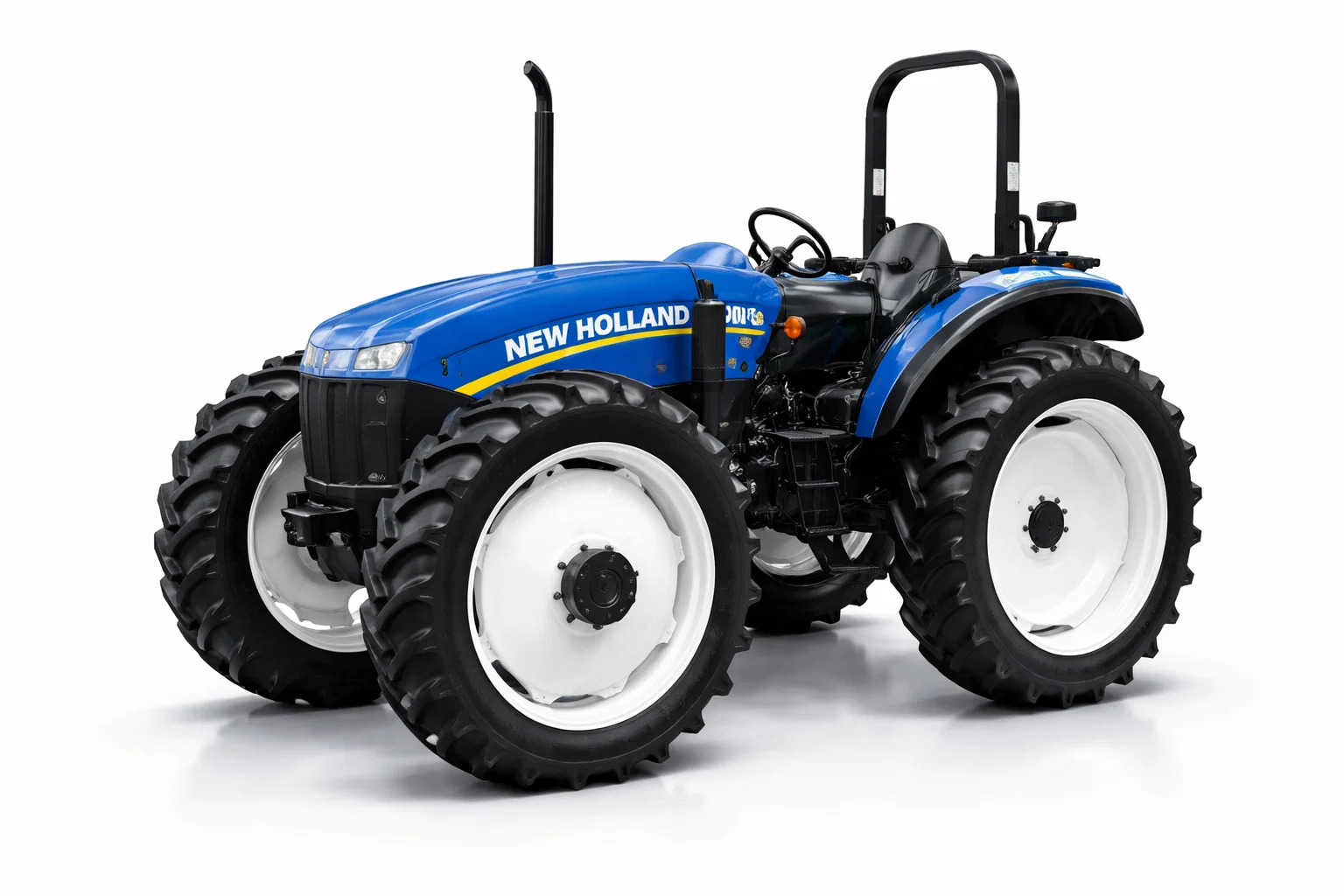

Overview – New Holland TD5050HC
The TD5050HC belongs to the TD5000 Series. Unlike the regular TD5050 chassis, this model features a high-clearance frame for tall crops and row farming.
| Item | Details |
|---|---|
| Model | New Holland TD5050HC |
| Series | TD5000 Series |
| Production Start | 2009 |
| Manufacturer | New Holland |
| Tractor Type | High-Clearance Utility Tractor |
| Variants | TD5050 (standard) / TD5050HC (high-clearance) |
| Drive Options | 2WD / 4WD MFWD |
Therefore, it suits vegetable farms, corn fields, and specialty crop operations.
Engine – Iveco 4.5L 4-Cylinder Diesel
The TD5050HC uses a robust Iveco diesel engine. It provides strong torque and stable output under heavy load.
| Item | Specification |
|---|---|
| Engine Manufacturer | Iveco |
| Engine Type | 4-cylinder diesel |
| Displacement | 4.5 L |
| Gross Engine Power | 90 hp |
| Rated Output | 67.1 kW |
| Fuel Tank Capacity | 117.3 L |
Because of its large fuel tank, the tractor supports long working hours. In addition, the 4.5L displacement ensures consistent pulling power.
Transmission – 20-Speed Mechanical Shuttle
The TD5050HC features a 20-speed mechanical shuttle transmission.
| Item | Specification |
|---|---|
| Transmission Type | 20-speed mechanical shuttle |
| Drive Configuration | 4×2 (2WD) |
| 4×4 MFWD (optional) |
The shuttle system allows smooth forward and reverse shifting. As a result, field productivity improves during repetitive operations.
Hydraulics – Strong Flow for Heavy Implements
The hydraulic system delivers reliable implement control.
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Pressure | 190 bar |
| Rear Valves | 1 to 3 |
| Pump Flow | 60.9 lpm |
| Total Flow | 87.4 lpm |
| Steering Flow | 26.5 lpm |
Because of its high hydraulic capacity, the TD5050HC handles sprayers and mounted equipment efficiently.
PTO & Hitch Performance
The tractor supports Category II implements for larger farming tasks.
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Rear Lift Capacity | 2,279 kg |
| Rear PTO | Independent |
| PTO Speed | 540 rpm |
| Optional PTO | 540 / 1000 rpm |
Therefore, it works effectively with mowers, sprayers, and heavy cultivation tools.
Dimensions & Weight
The TD5050HC stands taller than the standard chassis model.
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 227 cm |
| Wheelbase (4WD) | 222 cm |
| Operating Weight | 3,580 – 4,000 kg |
Its high-clearance design protects crops during cultivation. Consequently, farmers can work between tall rows without damage.
Electrical & Operator Platform
| Item | Specification |
|---|---|
| Platform | ROPS platform |
| Charging System | Alternator |
| Charging Capacity | 120 amps |
| Battery Voltage | 12V |
| Battery CCA | 800 |
The high-output alternator supports modern attachments. In addition, the platform layout ensures safe operation.
Why Choose a Used New Holland TD5050HC?
Many professional farmers search for a reliable Used New Holland Tractor that provides:
-
High-clearance chassis for row crops
-
Powerful 4.5L Iveco diesel engine
-
90 horsepower utility performance
-
Strong Category II lift capacity
-
20-speed mechanical shuttle transmission
-
Large 117L fuel tank for long hours
The TD5050HC delivers strength, versatility, and durability. Moreover, its elevated design makes it perfect for specialty agriculture.
Global Export from EVERY FARM TRACTOR
EVERY FARM TRACTOR supplies carefully inspected tractors to customers worldwide.
We handle export documentation quickly. We arrange international shipping smoothly. We support buyers from initial inquiry to final delivery.
If you are looking for a specialized Used New Holland Tractor for high-clearance farming, the TD5050HC is a smart investment.
👉 Contact EVERY FARM TRACTOR today to secure reliable agricultural machinery ready for global shipment.
High clearance. Strong performance. Built for serious farming.
