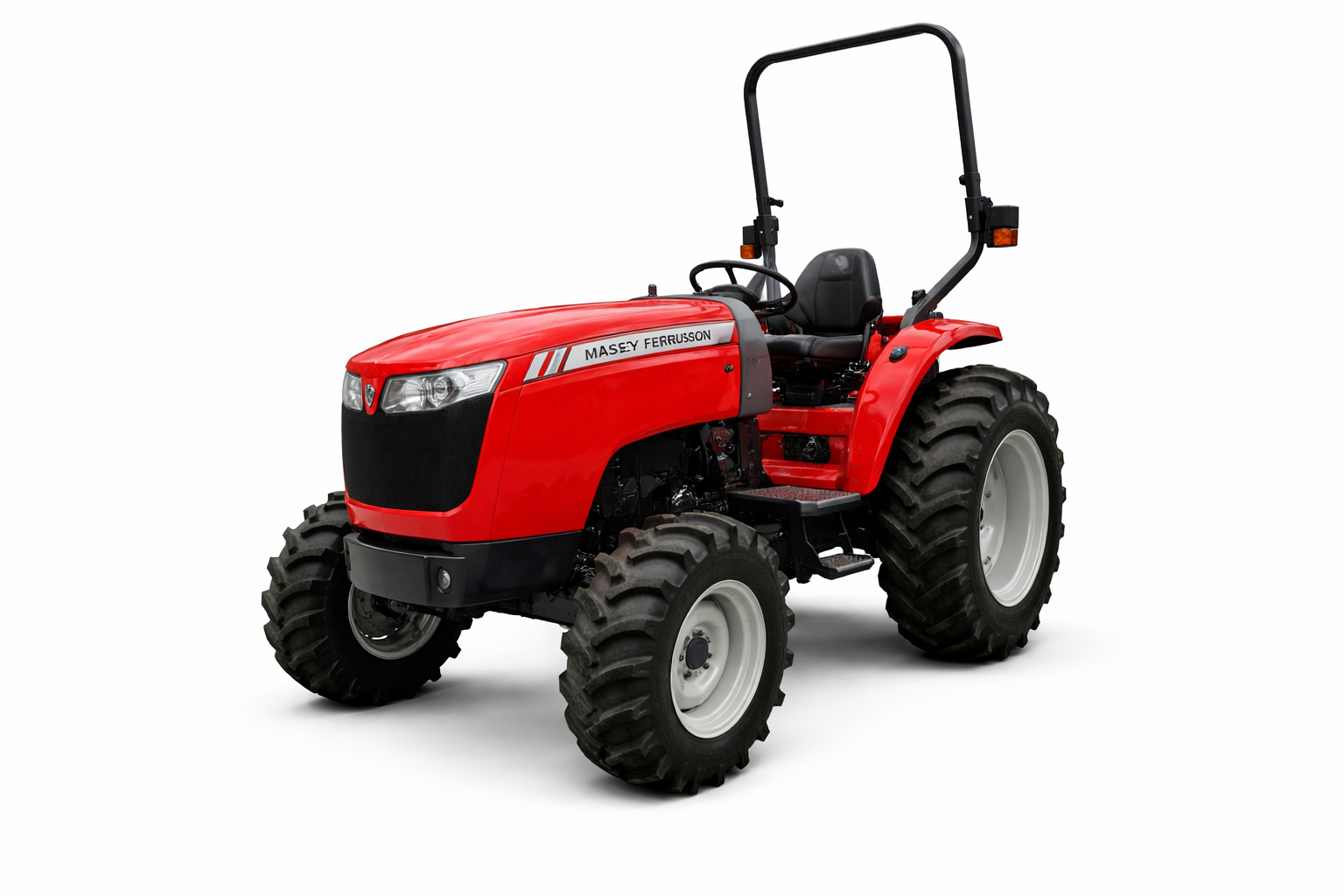

🚜 Massey Ferguson 1740M – 1700M Series Compact Utility Tractor (2018–)
🔎 Overview
| Category | Details |
|---|---|
| Model | Massey Ferguson 1740M |
| Series | 1700M Series |
| Production | 2018 – Present |
| Manufacturer | Massey Ferguson (AGCO Group) |
| Type | Compact Utility Tractor |
| Drive | 4WD |
| Original Price (2019) | $26,408 |
| ROPS | Folding (Cab optional, Deluxe Cab available) |
1700M Series Lineup
| Model | Engine Power |
|---|---|
| 1735M | 36.2 HP |
| 1740M | 40.0 HP |
| 1750M | 48.8 HP |
The 1740M balances mid-range horsepower with strong hydraulic and PTO performance.
🔧 Engine Specifications
The tractor is powered by a durable Shibaura diesel engine.
| Item | Specification |
|---|---|
| Engine Manufacturer | Shibaura |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.7 L |
| Fuel Tank Capacity | 10.6 gal (40.1 L) |
| Rated Engine Power | 40 hp (29.8 kW) |
⚙ PTO Power
| Transmission | PTO Output |
|---|---|
| Gear (Shuttle) | 31.2 hp (23.3 kW) |
| Hydrostatic | 29.1 hp (21.7 kW) |
Independent PTO allows safe and smooth implement operation.
⚙ Transmission Options
| Type | Description |
|---|---|
| 12-Speed Shuttle | Forward/reverse shifting ideal for loader work |
| Hydrostatic (HST) | Smooth, variable-speed control |
The shuttle transmission improves productivity for repetitive tasks.
💪 Mechanical Features
| Feature | Specification |
|---|---|
| Drive System | Four-wheel drive |
| Final Drives | Bull gear |
| Differential Lock | Rear standard |
| Steering | Power steering |
| Brakes | Wet disc |
| Cab | Optional standard cab or Deluxe cab |
💧 Hydraulic System
| Item | Specification |
|---|---|
| Type | Open center |
| Pump Flow | 12.1 gpm (45.8 lpm) |
| Rear Valves | Up to 3 (optional) |
The higher hydraulic flow compared to E-Series models allows stronger loader and backhoe operation.
🔗 3-Point Hitch
| Item | Specification |
|---|---|
| Rear Hitch | Category I |
| Control | Position & draft control |
| Rear Lift (24″/610mm) | 2,535 lbs (1,149 kg) |
| Rear Arms | Telescopic draft link ends |
Excellent lifting capacity for heavy implements.
🔌 Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO Type | 540 (1.375 in) |
| Mid PTO | Optional |
| Mid PTO Speed | 1916 RPM |
Supports mower decks and various PTO-driven equipment.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 71.1 inches (180 cm) |
| Weight | 3,373 – 3,781 lbs |
| Front Tire | 8-16 |
| Rear Tire | 12.4×24 |
The longer wheelbase improves stability during heavy-duty operations.
🔧 Available Attachments
| Attachment | Compatibility |
|---|---|
| 72″ Mid-Mount Mower | Optional |
| Front-End Loader | Compatible |
| Backhoe | Compatible |
Ideal for professional landscaping, estate management, and light construction.
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery | 12 Volts |
🌍 Why Choose Massey Ferguson 1740M?
✔ Powerful 40HP diesel engine
✔ Higher hydraulic flow than E-Series
✔ Strong 2,535 lb lift capacity
✔ Independent PTO system
✔ Cab and deluxe cab options
The Massey Ferguson 1740M is ideal for operators who require professional performance, comfort, and long-term durability.
