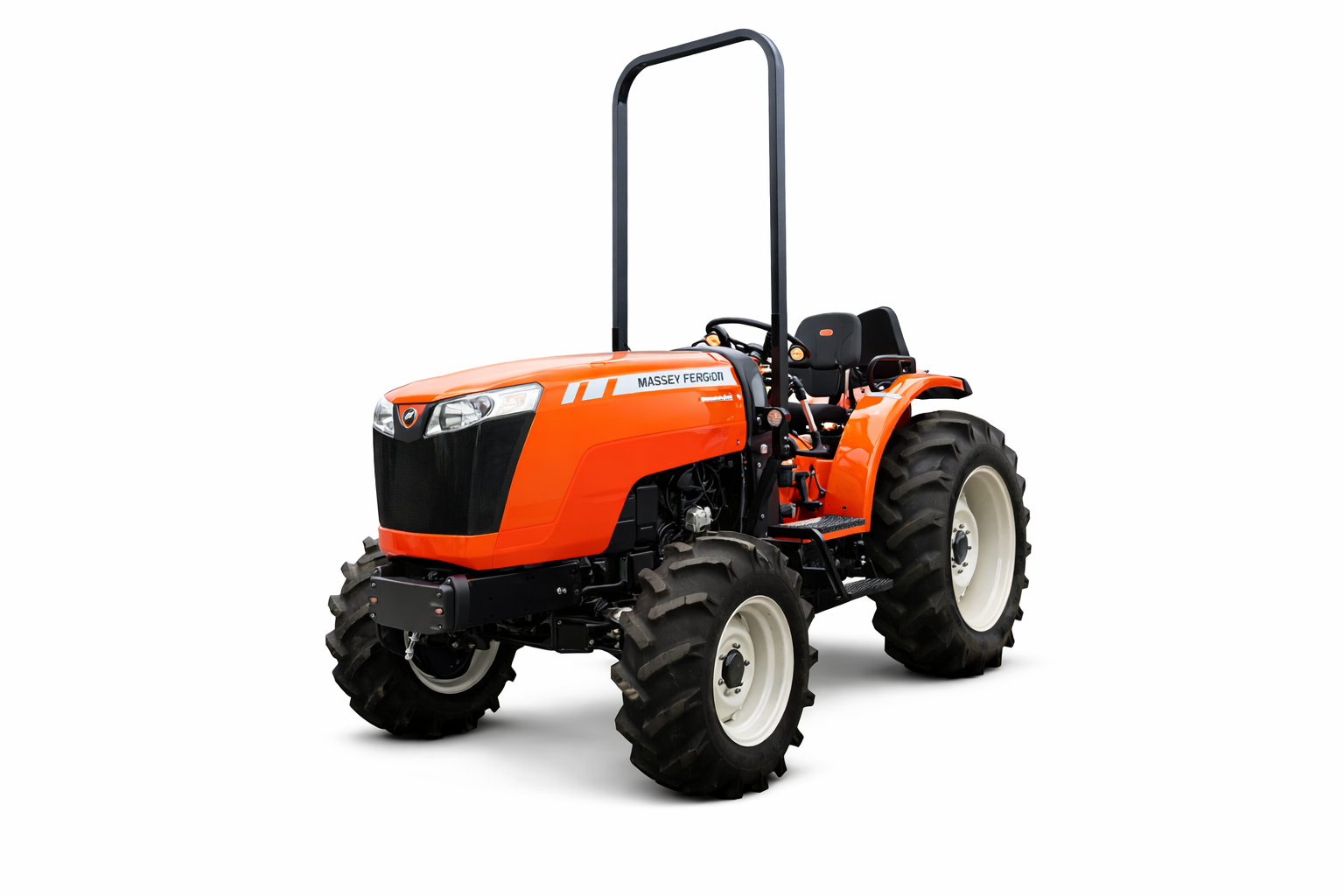

🚜 Massey Ferguson 1740 – 1700 Series Compact Utility Tractor (Iseki Built)
🔎 Overview
| Category | Details |
|---|---|
| Model | Massey Ferguson 1740 |
| Series | 1700 Series |
| Production | 2013 – 2018 |
| Distributor | Massey Ferguson (AGCO Group) |
| Manufacturer | Iseki |
| Tractor Type | Compact Utility Tractor |
| Drive | 4WD |
| Cab Option | Available with A/C |
Series Lineup
| Model | Engine Power |
|---|---|
| 1740 | 38 HP (28.3 kW) |
| 1747 | 46 HP (34.3 kW) |
Similar Iseki Model: TG6405
🔧 Engine Specifications
The 1740 is equipped with a reliable Iseki diesel engine known for durability and fuel efficiency.
| Item | Specification |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | 3-cylinder diesel |
| Displacement | 1.5 L |
| Fuel Tank Capacity | 10.6 gal (40.1 L) |
| Gross Engine Power | 38 hp (28.3 kW) |
The Iseki-built engine provides strong torque output and dependable performance under load.
⚙ Transmission Options
| Type | Description |
|---|---|
| 12-Speed Mechanical Shuttle | Smooth forward/reverse operation |
| Hydrostatic (HST) | Variable-speed control |
The mechanical shuttle is ideal for loader work, while hydrostatic transmission ensures ease of operation.
💪 Mechanical Features
| Feature | Specification |
|---|---|
| Drive System | Four-wheel drive |
| Differential Lock | Mechanical rear |
| Steering | Power steering |
| Brakes | Wet disc |
| Safety | Folding ROPS (mid-mount or rear) |
| Cab | Optional with air-conditioning |
The optional cab enhances operator comfort for long working hours and harsh climates.
💧 Hydraulic System
The 1740 offers strong hydraulic performance for demanding implements.
| Item | Specification |
|---|---|
| Type | Open center |
| Pump Flow | 19.6 gpm (74.2 lpm) |
This high pump flow makes the 1740 suitable for heavy-duty loader and hydraulic applications.
🔗 3-Point Hitch & PTO
| Item | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Rear Lift Capacity | 2800 lbs (1270 kg) |
| Rear PTO | Independent |
| Rear PTO Speed | 540 RPM (1.375 in) |
| Mid PTO | Optional (Independent) |
The strong 2,800 lb lift capacity makes it suitable for larger implements compared to smaller 1700 Series models.
📏 Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 69.7 inches (177 cm) |
| Weight | 3369 – 3704 lbs |
| Front Tire | 8.00-16 |
| Rear Tire | 13.6-24 |
The heavier chassis improves stability and lifting capability.
🔌 Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Battery | 12 Volts |
🌍 Why Choose the Massey Ferguson 1740?
✔ Iseki-built Japanese engine reliability
✔ Strong 38 HP gross engine power
✔ High 19.6 gpm hydraulic flow
✔ 2,800 lb rear lift capacity
✔ Optional cab with air-conditioning
The Massey Ferguson 1740 is ideal for operators who require professional-grade performance in a compact and durable tractor platform.
